34
PRIME/PRO/TUF GAMING X570 Series BIOS Manual

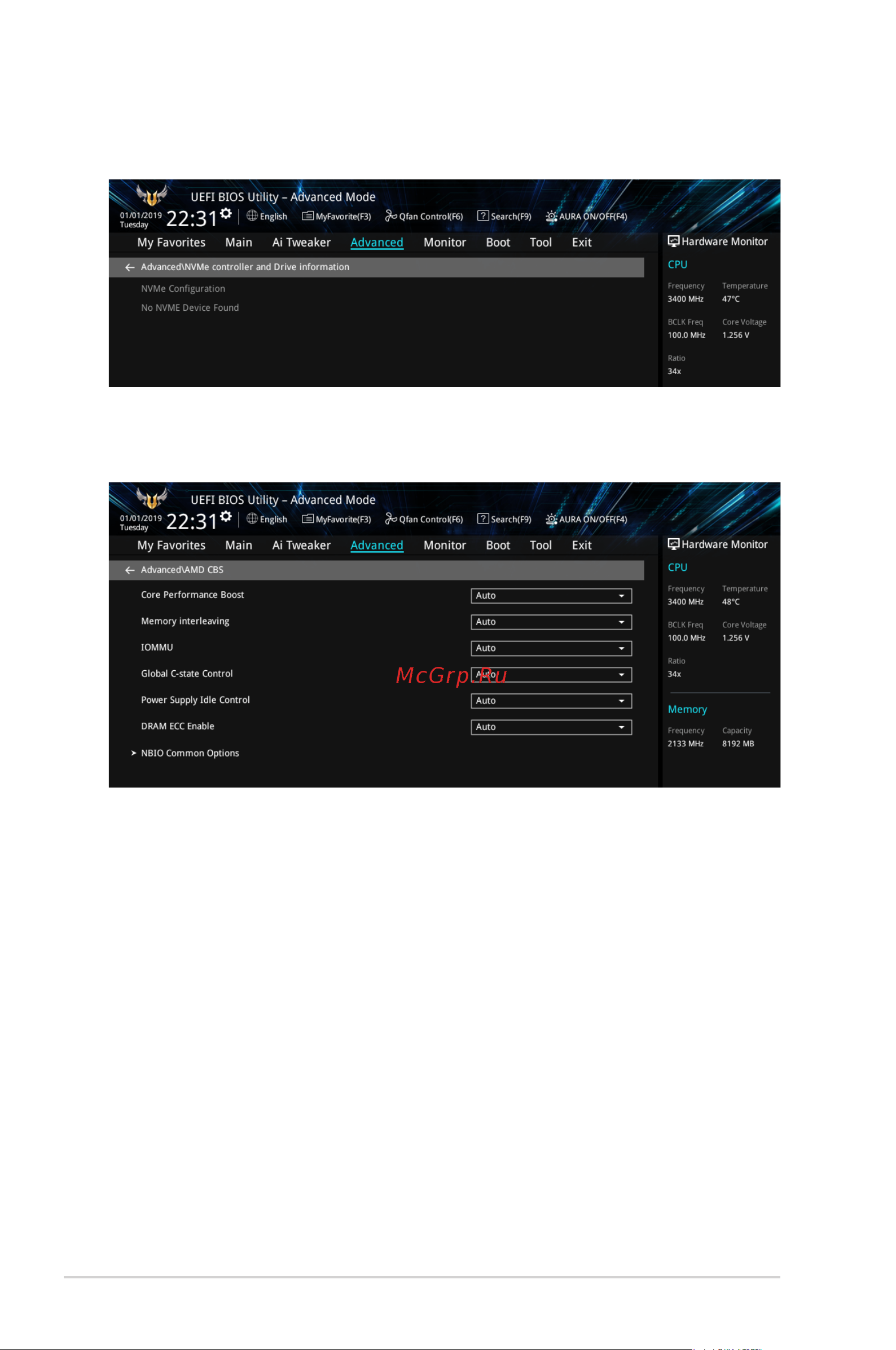

1.6.10 NVMe Conguration
This menu displays the NVMe controller and Drive information of the connected devices.
1.6.11 AMD CBS
The items in this menu shows the AMD Common BIOS Specications.
Core Performance Boost
Conguration options: [Auto] [Disabled]
Memory interleaving
Conguration options: [Auto] [Disabled]
IOMMU
Conguration options: [Auto] [Disabled] [Enabled]
Global C-state Control
Conguration options: [Auto] [Disabled] [Enabled]
Power Supply Idle Control
Conguration options: [Auto] [Low Current Idle] [Typical Current Idle]
DRAM ECC Enable
Conguration options: [Auto] [Disabled] [Enabled]
