PRIME/PRO/TUF GAMING X570 Series BIOS Manual
1.9.3 ASUS SPD Information

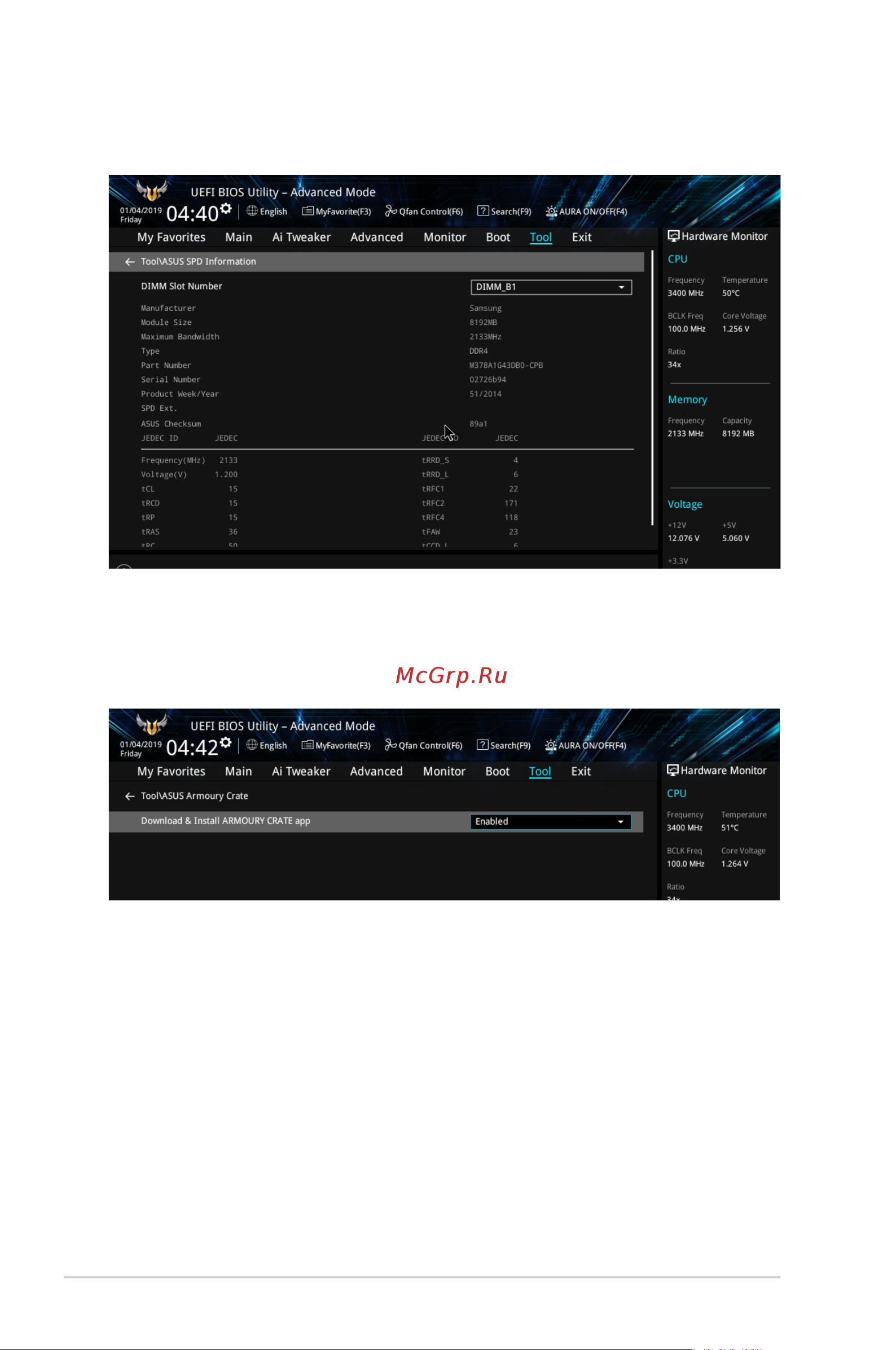

This item allows you to view the DRAM SPD information.
1.9.4 ASUS Armoury Crate
This item allows you to enable Armoury Crate download process.
