Asus ProArt X570-CREATOR WIFI [12/80] Connectors with shared bandwidth

xii

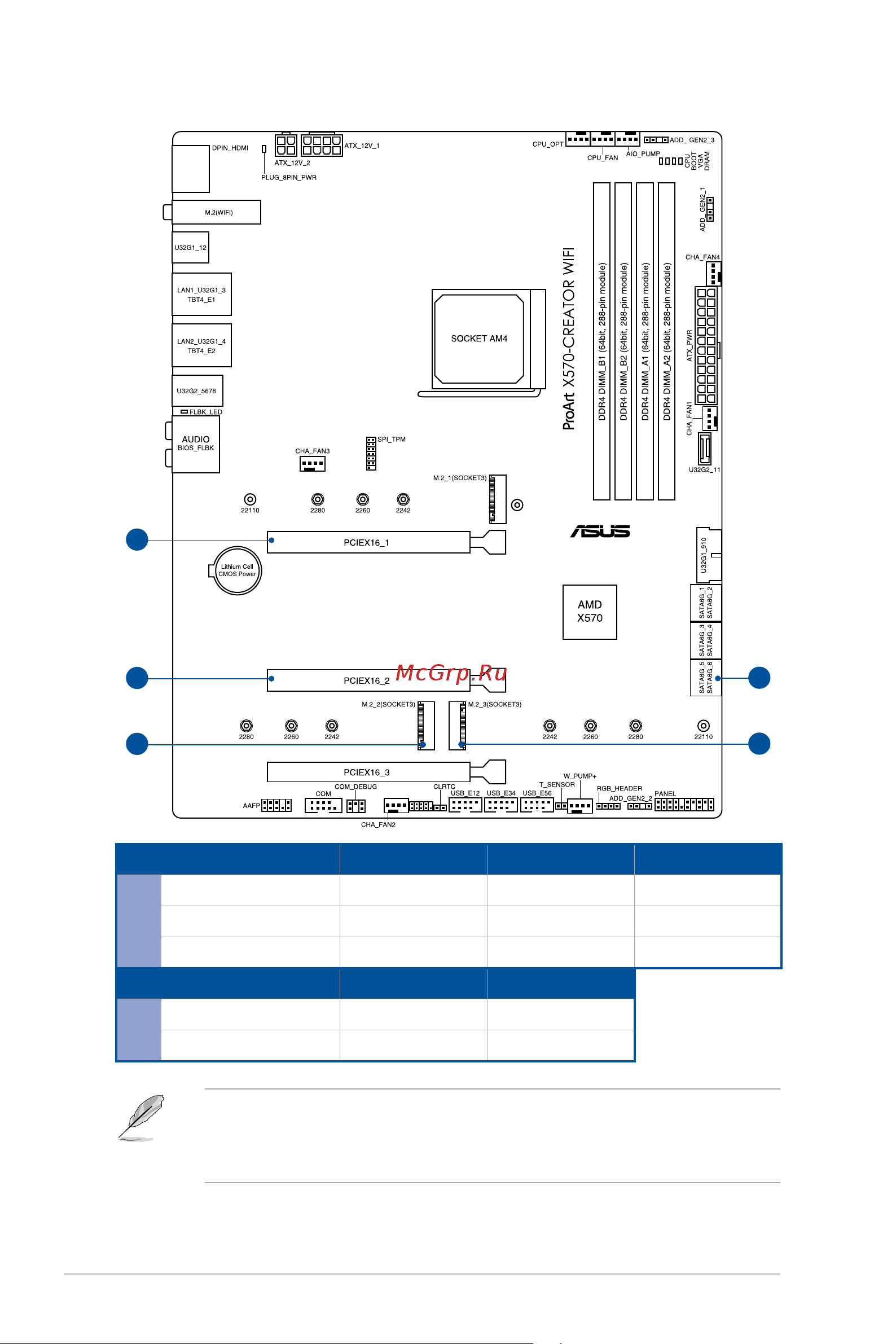

Connectors with shared bandwidth

Configuration 1 (Default) 2 3

PCIEX16_1 x16 x8 x8

PCIEX16_2 - x8 x4

M.2_2 - - x4

Configuration 1 2

M.2_3 V (SATA mode) V (PCIe mode)

SATA6G_56 V -

M.2_3 shares bandwidth with SATA6G_5~6. If M.2_3 is populated by an NVMe device,

SATA6G_5~6 will be suspended. If M.2_3 is operating in SATA mode, then M.2_3 and

SATA6G_5~6 will all be able to support SATA devices. Please adjust this item in the BIOS

settings.
