ROG ZENITH II EXTREME ALPHA
1-25
Chapter 1

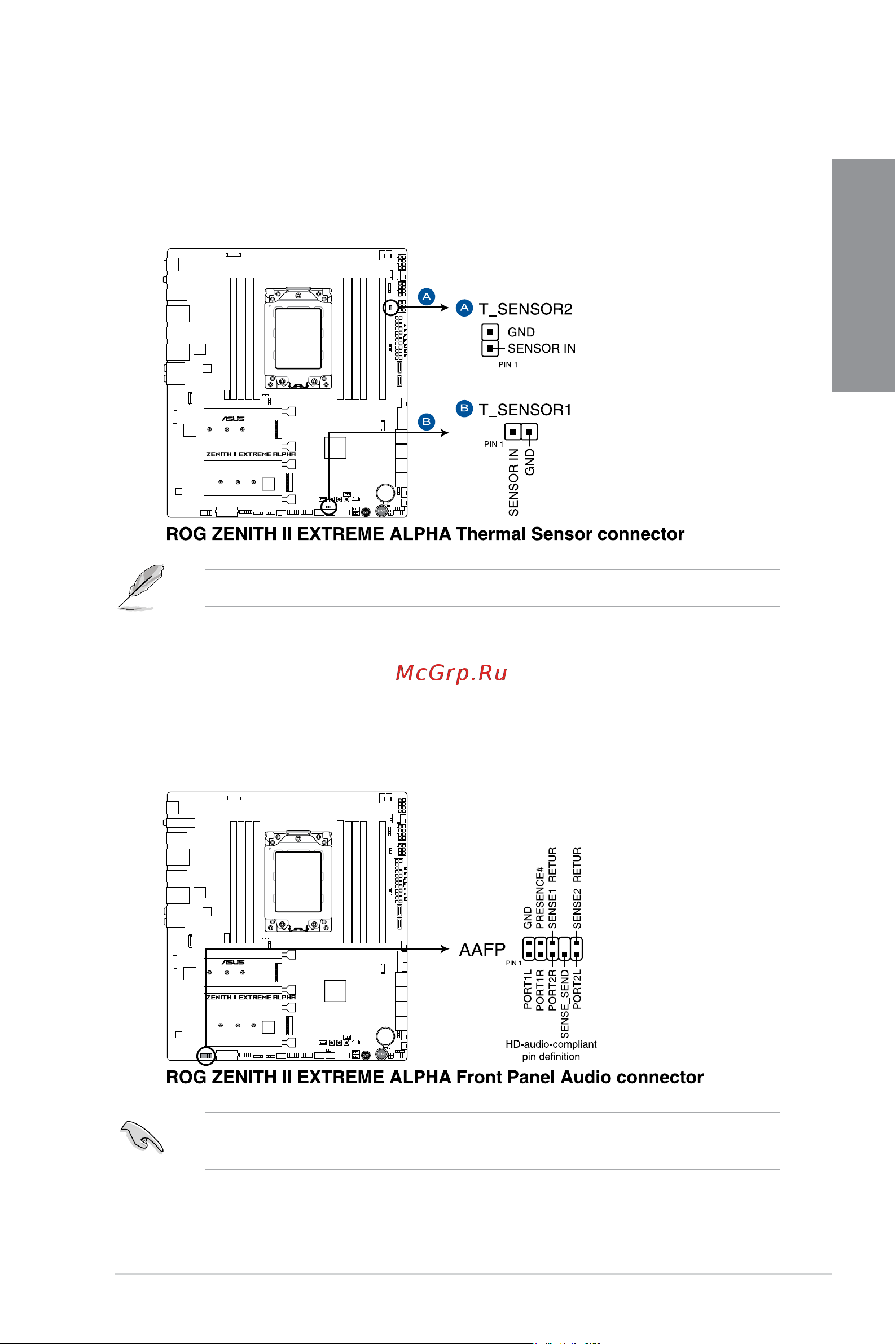

13. Thermal Sensor connector
The Thermal Sensor connector allows you to connect a sensor to monitor the
temperature of the devices and the critical components inside the motherboard.
Connect the thermal sensor and place it on the device or the motherboard’s
component to detect its temperature.
The thermal sensor is purchased separately.
14. Front Panel Audio connector
The front panel audio connector is for a chassis-mounted front panel audio I/O module
that supports HD Audio. Connect one end of the front panel audio I/O module cable to
this connector.
We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard’s high-definition audio capability.
