Asus ROG Zenith II Extreme Alpha [51/112] Chapter 2

ROG ZENITH II EXTREME ALPHA

2-3

Chapter 2

Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the

heatsink and fan if necessary.

The load plate screws are Torx T20 models. A torque value of 12 inch-lbf is recommended.

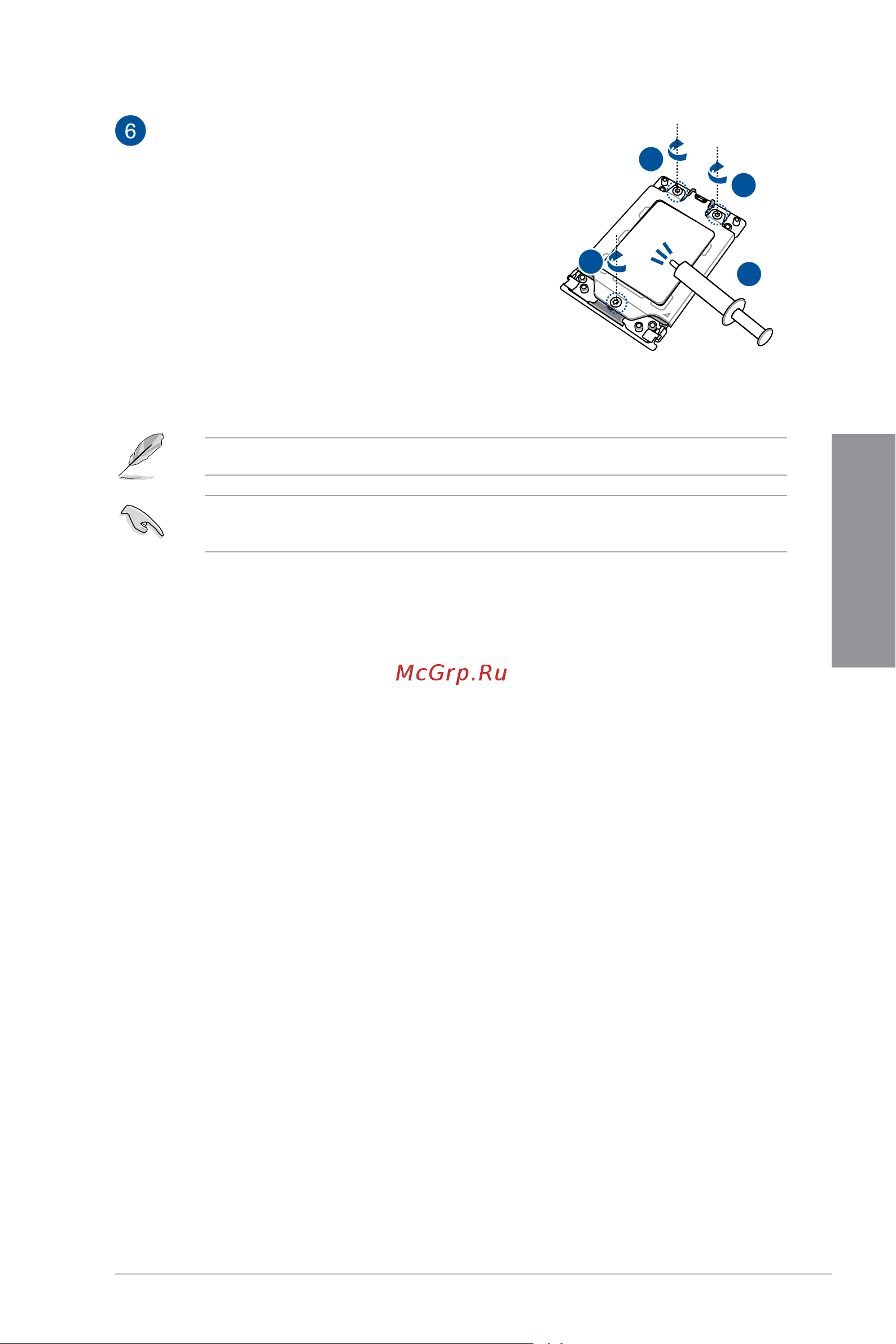

Drive the three screws slightly into the holes

in sequence 1>2>3, just enough to attach

the load plate to the socket. When the

three screws are attached, tighten them in

sequence 1>2>3 to completely secure the

load plate. Then apply the Thermal Interface

Material to the CPU.
