Installation/ connection

Attention:

REMOVE THE TRANSPORT CD STOPPER (2 SCREWS)

BEFORE USE.

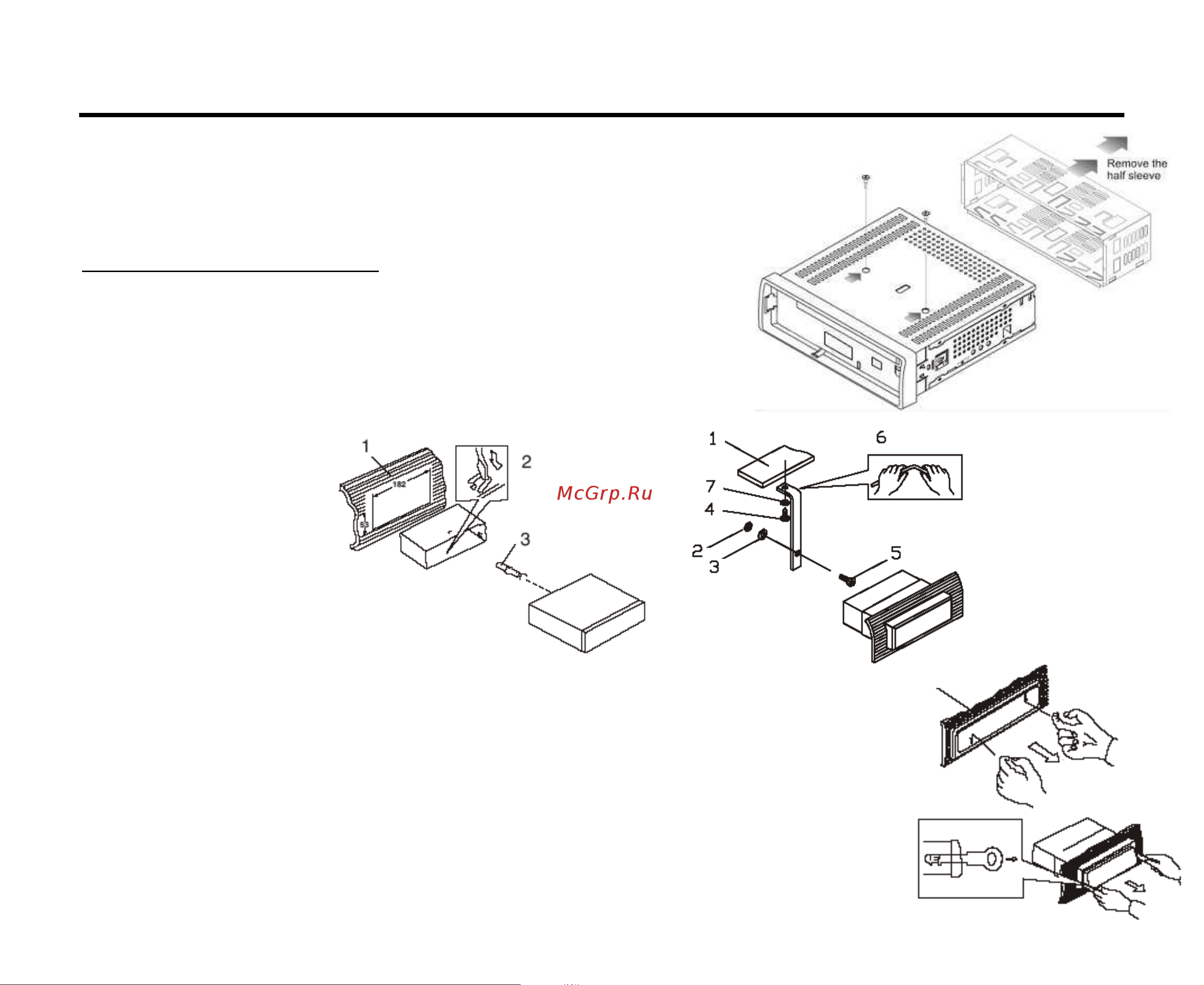

Din front-mount (method 1)

· After inserting the holder into the dashboard, select the appropriate

tab and bend them inwards to secure the holder in place.

· Insert fingers into the groove in the front of frame and remove it.

· Insert the levers supplied with the unit to the grooves at both sides.

The unit can be installed or removed from the dashboard.

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (5 x 25mm)

5. Screw

6. Strap

7. Plain washer

Removing the unit

· Insert fingers into the groove in the front of frame and pull out to remove the frame.

(When reattaching the frame, point the side with a groove down wards and attach it.)

· Insert the levers supplied with the unit into the grooves at both sides of the

unit as shown in figure until they click. Pulling the levers makes it possible

to remove the unit from the dashboard.

frame

lever
