HYUNDAI ELECTRONICS H-CDM8042 [8/54] Using the iso connector

Do not interchange the connection of the wiring!!!

For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car

dealer before installing this unit.

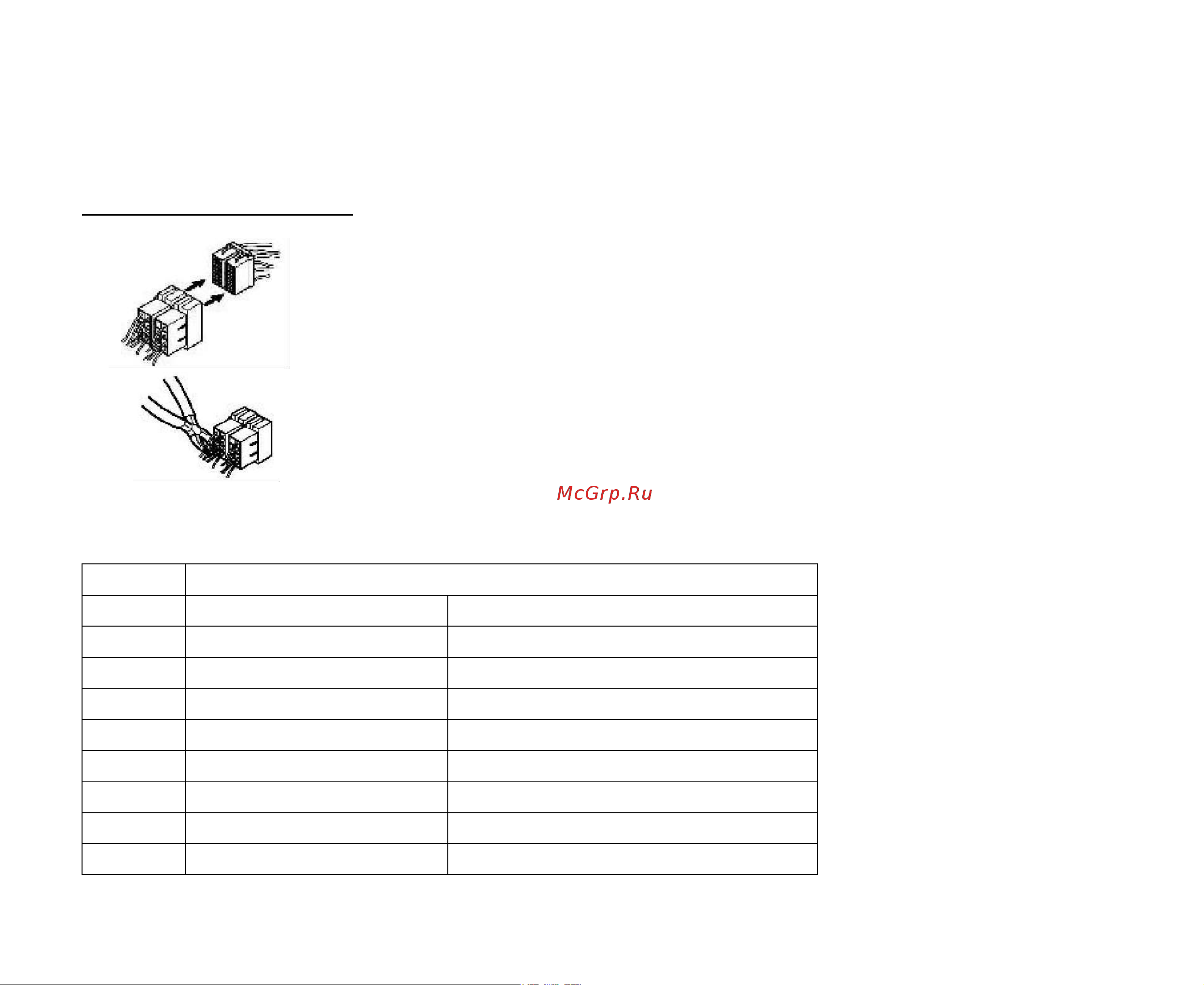

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO

connectors as illustrated.

2. For connections without the ISO connectors, check the wiring in the

vehicle carefully before connecting, incorrect connection may cause serious

damage to this unit.

Cut the connector, connect the colored leads of the power cord to the car

battery as shown in the color code table below for speaker and power cable

connections.

Location FUNCTION

Connector A Connector B

1 Rear Right(+)---Purple

2 Rear Right(-)---Purple/Black Stripe

3 Front Right(+)---Gray

4 Battery 12V (+)/yellow Front Right(-)---Gray/Black Stripe

5 Auto Antenna/blue Front Left(+)---White

6 Front Left((-)---White/Black Stripe

7 ACC+/red Rear Left(+)---Green

8 Ground/black Rear Left(-)---Green/Black Stripe
