Using the ISO Connector

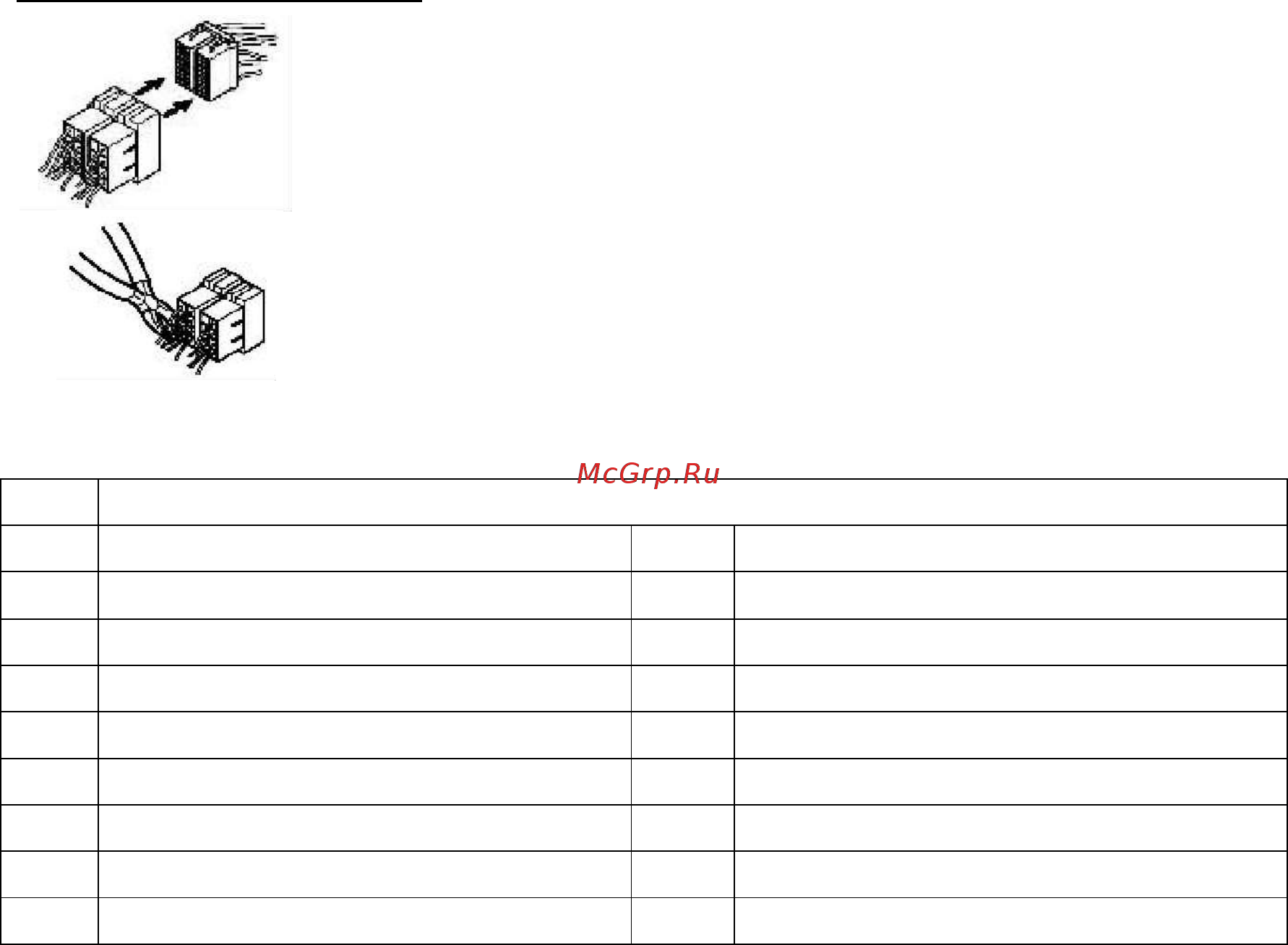

1. If your car is equipped with the ISO connector, then connect the ISO connectors as

illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle

carefully before connecting, incorrect connection may cause serious damage to this

unit.

3. Cut the connector, connect the colored leads of the power cord to the car battery as

shown in the color code table below for speaker and power cable connections.

Function

 Connector A  Connector B

4 Car battery memory B+ (Yellow) 1 Rear Right (+)---Violet

5 Power antenna (Blue) 2 Rear Right (-)---Violet/Black Stripe

7 Ignition key 12V (+) (Red) 3 Front Right(+)---Grey

8 Ground lead (Black) 4 Front Right (-)---Grey/Black Stripe

5 Front Left(+)---White

6 Front Left (-)---White/Black Stripe

7 Rear Left(+)---Green

8 Rear Left(-)---Green/Black Stripe
