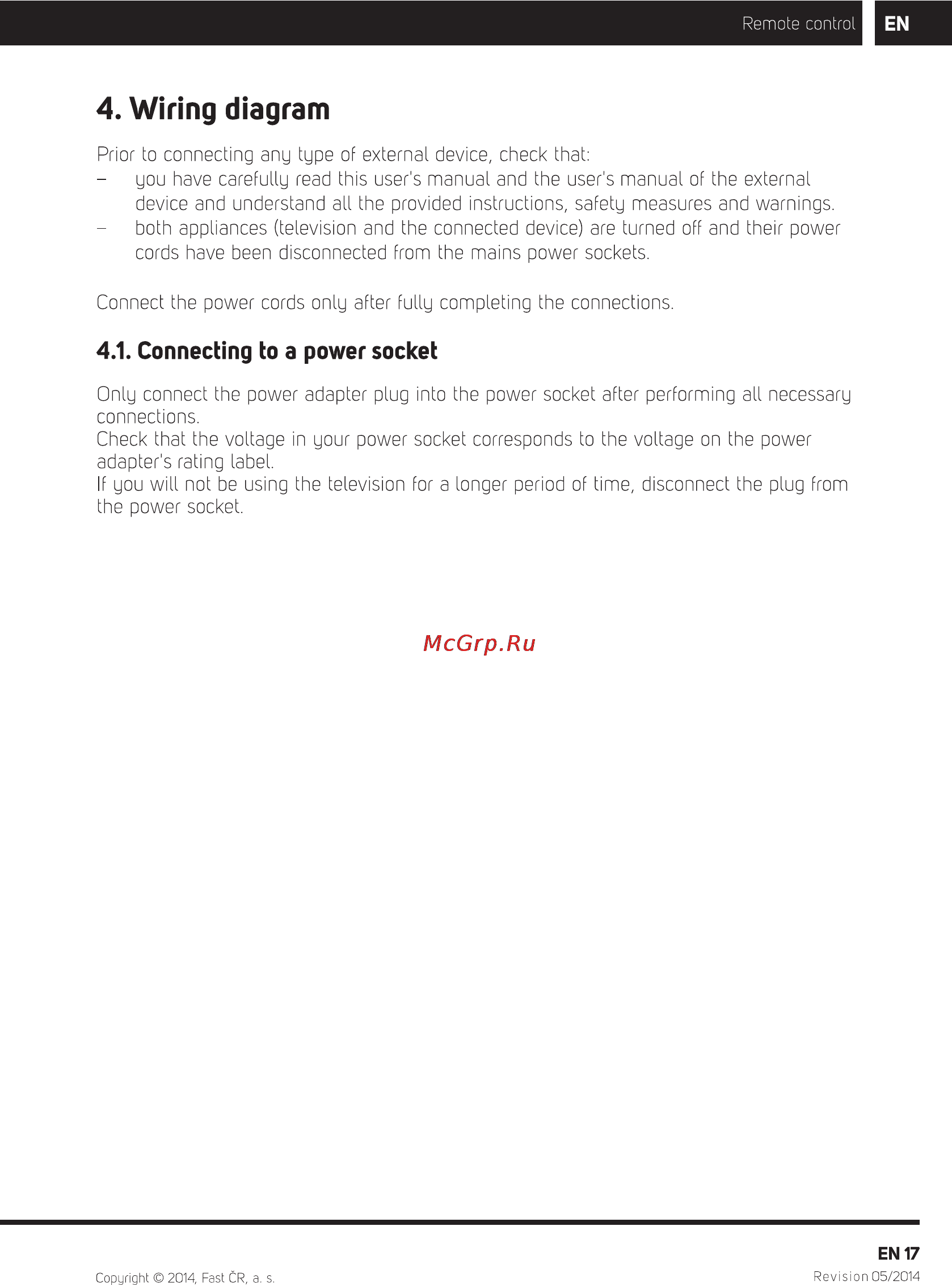

Remote control B EN 4 Wiring diagram Prior to connecting any type of external device check that you have carefully read this user s manual and the user s manual of the external device and understand all the provided instructions safety measures and warnings both appliances television and the connected device are turned off and their power cords have been disconnected from the mains power sockets Connect the power cords only after fully completing the connections 4 1 Connecting to a power socket Only connect the power adapter plug into the power socket after performing all necessary connections Check that the voltage in your power socket corresponds to the voltage on the power adapter s rating label If you will not be using the television for a longer period of time disconnect the plug from the power socket EN 17 Copyright 2014 Fast CR a s Revision 05 2014
