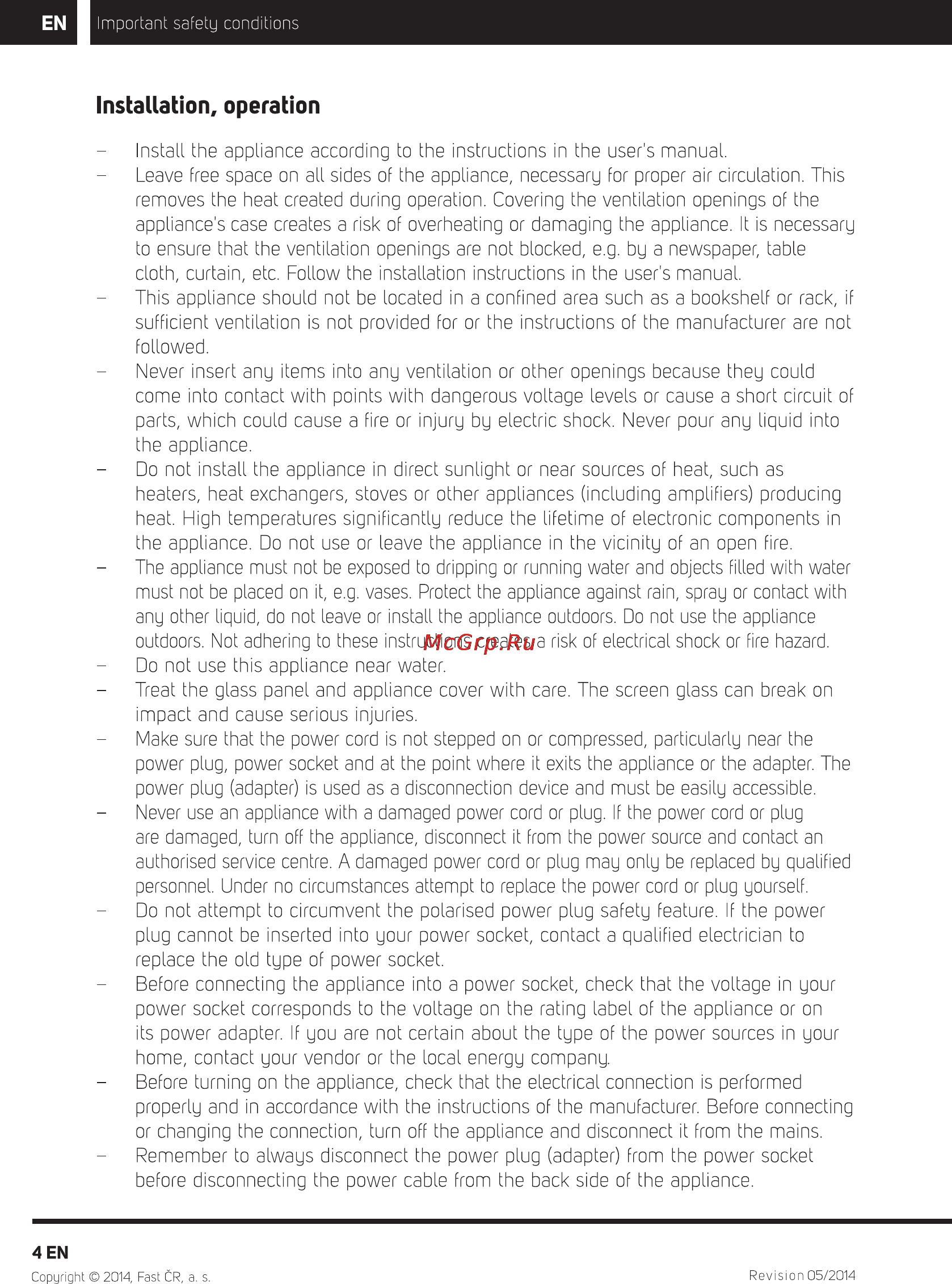

EN B Important safety conditions Installation operation Install the apptiance according to the instructions in the user s manual Leave free space on all sides of the appliance necessarg for proper air circulation This emoves the heat created during operation Covering the ventilation openings of the appliance s case creates a risk of overheating or damaging the appliance It is necessarg to ensure that the ventilation openings are not blocked e g bg a newspaper table cloth curtain etc Follow the installation instructions in the user s manual This appliance should not be located in a confined area such as a bookshelf or rack if sufficient ventilation is not provided for or the instructions of the manufacturer are not allowed Never insert ang items into ang ventilation or other openings because theg could come into contact with points with dangerous voltage levels or cause a short circuit of oarts which could cause a fire or injurg bg electric shock Never pour ang liguid into the appliance Do not install the appliance in direct sunlight or near sources of heat such as heaters heat exchangers stoves or other appliances including amplifiers producing neat High temperatures significantly reduce the lifetime of electronic components in rhe appliance Do not use or leave the appliance in the vicinitg of an open fire The appliance must not be exposed to dripping or running water and objects filled with water must not be placed on it e g vases Protect the appliance against rain sprag or contact with ang other liguid do not leave or install the appliance outdoors Do not use the appliance outdoors Not adhering to these instructions creates a risk of electrical shock or fire hazard Do not use this appliance near water Treat the glass panel and appliance cover with care The screen glass can break on impact and cause serious injuries Make sure that the power cord is not stepped on or compressed particularly near the sower plug power socket and at the point where it exits the appliance or the adapter The sower plug adapter is used as a disconnection device and must be easily accessible Never use an appliance with a damaged power cord or plug If the power cord or plug are damaged turn off the appliance disconnect it from the power source and contact an authorised service centre A damaged power cord or plug mag onlg be replaced bg qualifiée sersonnel Under no circumstances attempt to replace the power cord or plug gourself Do not attempt to circumvent the polarised power plug safetg feature If the power plug cannot be inserted into gour power socket contact a qualified electrician to eplace the old tgpe of power socket Before connecting the appliance into a power socket check that the voltage in gour power socket corresponds to the voltage on the rating label of the appliance or on its power adapter If gou are not certain about the tgpe of the power sources in gour nome contact gour vendor or the local energg compang Before turning on the appliance check that the electrical connection is performec oroperlg and in accordance with the instructions of the manufacturer Before connecting or changing the connection turn off the appliance and disconnect it from the mains Remember to alwags disconnect the power plug adapter from the power socket oefore disconnecting the power cable from the back side of the appliance 4 EN Copyright 2014 Fast CR a s Revision 05 2014
