English 21

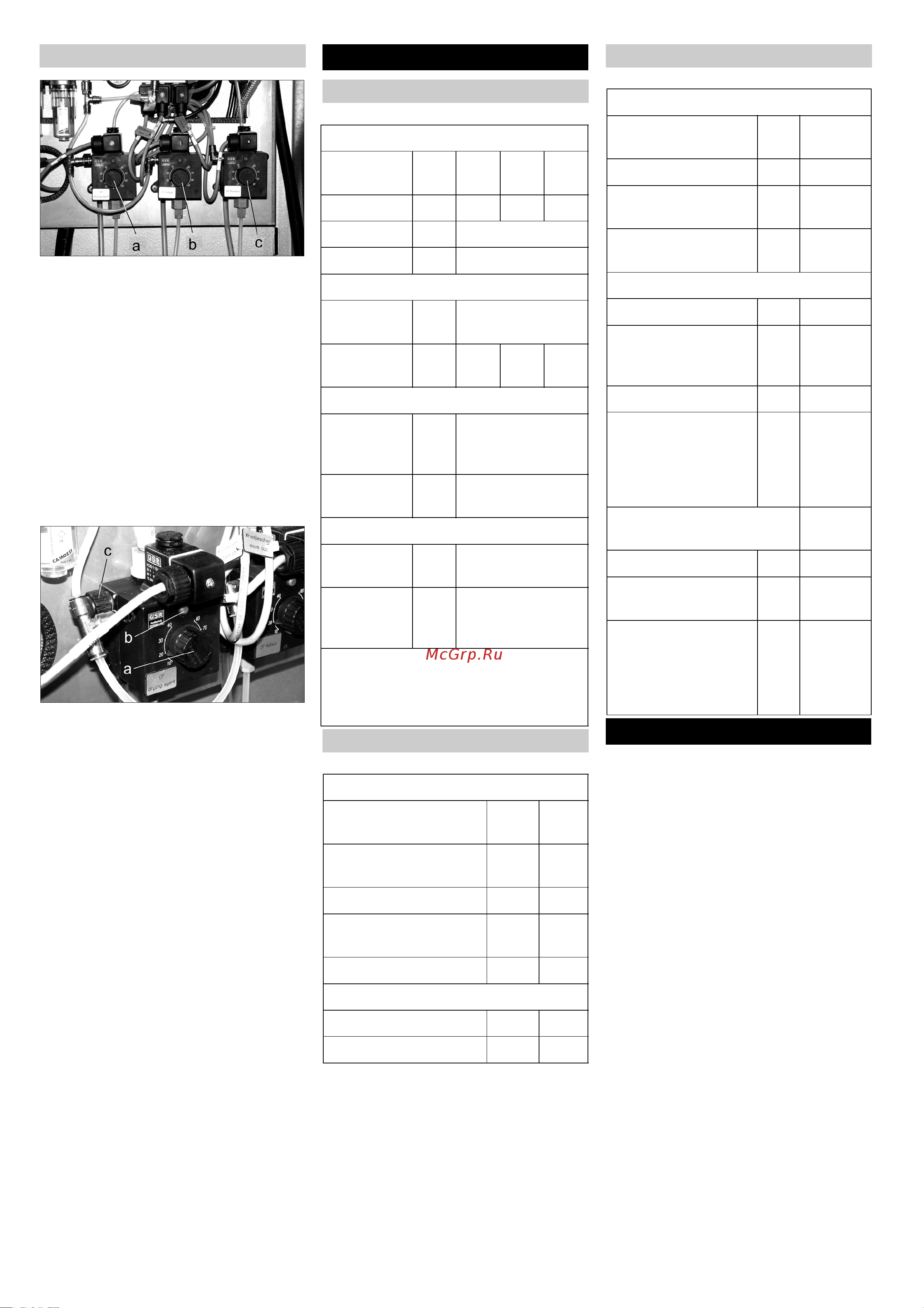

The dosing pumps dose the washing water
with the detergents shampoo/foam (a), hot
wax (b) (option) and drying aid (c) in ac-
cordance with the wash programme and
the equipment of the plant.
Note
The dosage amount is optimally set by the
fitter when the plant is assembled. General-
ly no reset is necessary.
몇 Warning
Dosing pump can be damaged. Activate ro-
tary knob (a) only when the pump is run-
ning.
Î Unlock rotary knob (a) by pulling.
Î Turn rotary knob (a) to desired dosage
amount. At the same time (b) press sev-
eral times.
Î Rotary knob (a) secure by pressing in.
Î Turn bleeder screw (c) ca. 2 rotations
anti-clockwise.
Î Press button (b) so often until there are
no more air bubbles in the suction hose
and the detergents and drying aid flows
back via run-off hose into the container.
Î Screw close the bleeder screw (c)
again.
In the event of danger for persons, property
and animals, the plant must be switched off
immediately by pressing the emergency-
stop button. It is found
– at the wash card/code reader
– at the operating place for manual oper-
ator station
– at the entrance to the wash hall, íf an
operating point or wash card/code read-
er is located there.
몇 Warning!
Risk of damage to vehicle which is to be
cleaned. If the wash plant develops a fault
once the detergent has been applied, it
must be switched off and the detergent re-
moved by spraying the vehicle thoroughly
with water to prevent the paintwork being
damaged through an extended period of
exposure to the detergent.
Note
In the case of self-operating plants, a spe-
cialist familiar with the plant must be con-
tactable who can carry out measures, or
have them done, in order to avoid possible
dangers.
Setting dosing pumps
Set dosing amount
Bleed dosing pump.
Technical specifications
Dimensions
Plant dimensions
CB
1/23
CB
1/25
CB
1/28
Height mm 3100 3300 3600
Width mm 3500
Depth *) mm 2020
Vehicle size limits dimensions **)
Washing
width
mm 2300
Washing
height
mm 2300 2500 2800
Washable vehicle lengths ***)
without
safety dis-
tance
mm 5800
with safety
distance
mm 5270
Hall width
with safety
distance
mm 4500
without
safety dis-
tance
mm 4050
>*) Rotating roof brush, rotating side
brushes **) almost all vehicles can be
washed within these measurements ***)
with 9000 mm drive channel length
Features
Wash brushes
Diameter of side-brush-
es Side
mm 965
Side-brush rotation
speed
1/min 107
Diameter of brush Roof mm 880
Brush rotation speed
Roof
1/min 127
Portal drive speed m/min 0...20
Sound level
Brush cleaning dB(A) 67
Drier operation dB(A) 87
Connection values
Electrical connection
Voltage V 400/3~,
P, N
Frequency Hz 50
Connection output Ba-
sic plant
kW 16
Pre-securing Control
cabinet
Amax. 35
Water connection
Nominal width Inch 1
Flow pressure accord-
ing to DIN 1988 (with
100 l/min)
MPa
(bar)
0,4...0,6
(4...6)
Temperature °C max. 50
Water consumption/
vehicle with 0.45 MPa
(programme-depend-
ent with 4.5 m vehicle
length)
l 80...210
Compressed air connec-
tion
Nominal width Inch 1/2
Pressure MPa
(bar)
0,6...0,8
(6...8)
Consumption/Wash-
es (without anti-frost
device, programme-
dependent with 4.5 m
vehicle length)
l200
Operation
