- 9
1 Control supply voltage/normal position
button
Briefly press control supply voltage/nor-
mal position button.
Press button or button combination
(press simultaneously) to obtain the de-
sired function.
– [ I ]: Function remains active as long as
the corresponding button is pressed.
– [ 0-I ]: function is activated the first time
the button is pressed and deactivated
when it is pressed again.
1 Keys Prog. 1 ... Prog. 7
2 Key "8"
The manual functions are divided into
groups.
Press button or button combination
(press simultaneously) to obtain the de-
sired group. The positioning ramp indi-
cates the selected group via a flashing
signal with the lamp “forward”.
Press button or button combination
(press simultaneously) to obtain the de-
sired function.
– [ I ]: Function remains active as long as
the corresponding button is pressed.
– [ 0-I ]: function is activated the first time
the button is pressed and deactivated
when it is pressed again.
Select function
Group 1 roof brush/wheel washer
Rotate roof brush for-
wards, [ 0-I ]
X
Rotate roof brush
backwards, [ 0-I ]
X
Lower roof brush, [ I ] X X
Raise roof brush, [ I ] X
Move wheel washer
forwards, [ 0-I ]
XX
Move wheel washer
backwards, [ 0-I ]
XX
Retract wheel wash-
er, [ 0-I ]
XXX
Group 2 Side-brushes
Rotate side brushes for-
wards, [ 0-I ]
X
Rotate side brushes
backwards, [ 0-I ]
X
Retract side brush 1, [ I ] X X
Extend side brush 1, [ I ] X
Retract side brush 2, [ I ] X X
Extend side brush 2, [ I ] X X
Tilt side-brushes [ 0-I ] X X X
Group 3 Drier
Switch on roof drier, [ 0-I ] X
Switch on side drier, [ 0-I ] X
Lower roof drier, [ I ] X X
Raise roof drier, [ I ] X
Group 4 portal drive
Move gantry for-
wards, [ I ]
X
Move gantry back-
wards, [ I ]
X
Light [ 0-I ] X X
(initialise machine) [I] X
Group 5 Water
Loosen insects, [ 0-I ] X
Dosing pump, rim
cleaner, [ 0-I ]
X
Foam, [ 0-I ] X X
Processed water arc
and shampoo, [ 0-I ]
X
Fresh water arc and
CTH [ 0-I ]
XX
Hot wax, [ 0-I ] X X
Foam wax, [ 0-I ] X X X
Group 6 Pumps
Alarm, [ 0-I ] X
Ready to start wash, [ 0-I ] X
Frost alarm, [ 0-I ] X X
Fresh water pump, [ 0-I ] X
Industrial water pump, [ 0-I ] X X
High-pressure pump, [ 0-I ] X X
Chassis wash, [ 0-I ] X X X
Group 7 Frost protection (option)
Start frost protection,
[ 0-I ]
X
High-pressure air
valve, [ 0-I ]
X
Chassis wash air
valve, [ 0-I ]
XX
Fresh water air
valve, [ 0-I ]
X
Industrial water air
valve, [ 0-I ]
XX

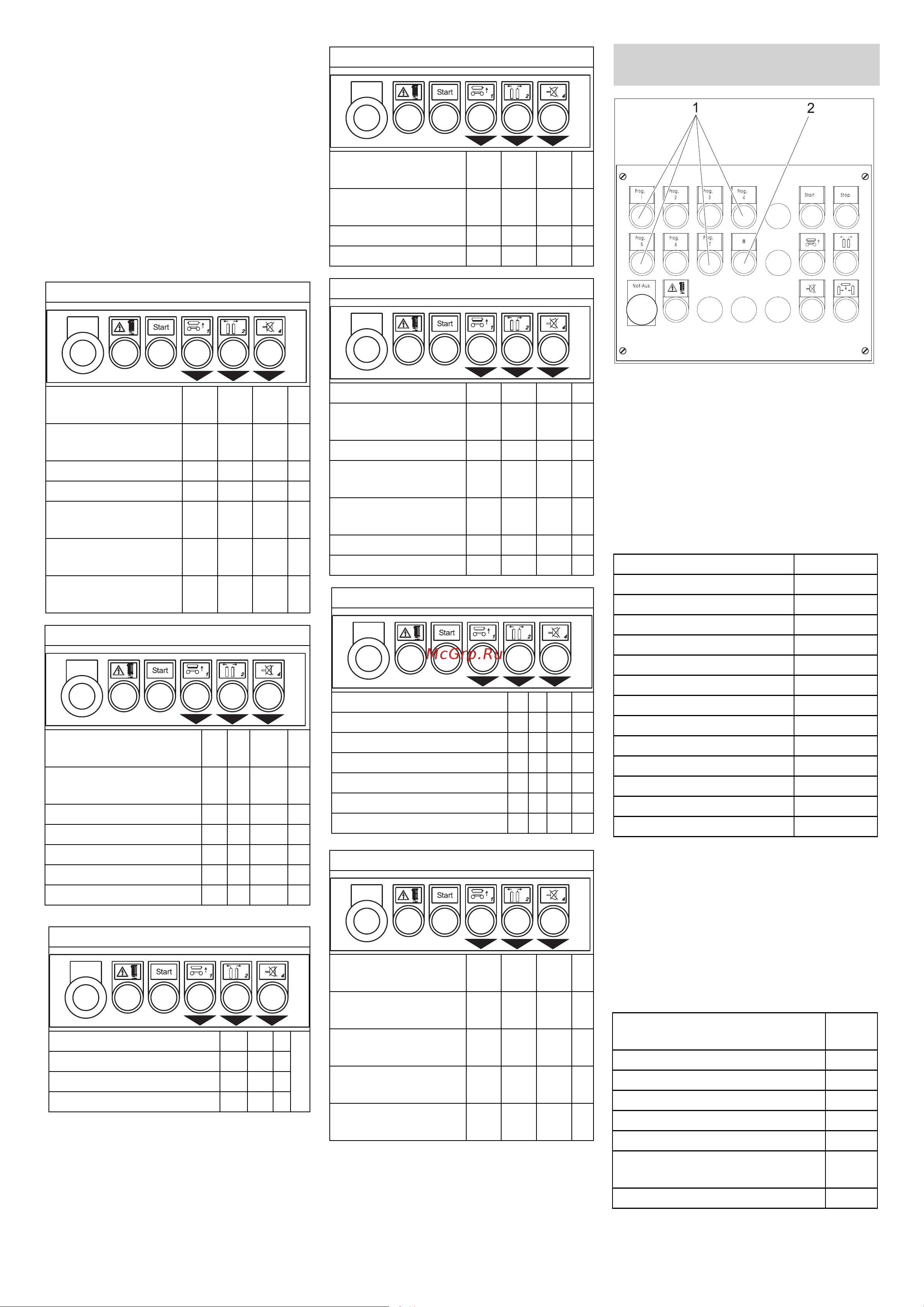

Comfor control station for manual
operation
Select group
Group Key(s)
1 roof brush/wheel washer Prog. 1
2 side- brushes Prog. 2
3 drier Prog. 3
4 portal drive Prog. 4
5 water Prog. 5
6 pumps Prog. 6
7 Frost protection (option) Prog. 7
8 Chassis wash Key 8
9 Gate control Prog. 2 + 8
10 Washing phase display Prog. 3 + 8
11 Card reader Prog. 4 + 8
12 Dosing pumps Prog. 5 + 8
13 High pressure Prog. 6 + 8
Select function
Group 1 roof brush/wheel
washer
Key(s)
Rotate roof brush forwards, [ 0-I ] Prog. 1
Rotate roof brush backwards, [ 0-I ] Prog. 2
Lower roof brush, [ I ] Prog. 3
Raise roof brush, [ I ] Prog. 4
Move wheel washer forwards, [ 0-I ] Prog. 5
Move wheel washer backwards,
[ 0-I ]
Prog. 6
Retract wheel washer, [ 0-I ] Prog. 7
31EN
