Sven HT-435(R) [25/28] Ht 435r

5.1 Active Home Theater

Speaker System

HT-435R

Operation Manual

ENG

SUB

SR FLFR SLCEN

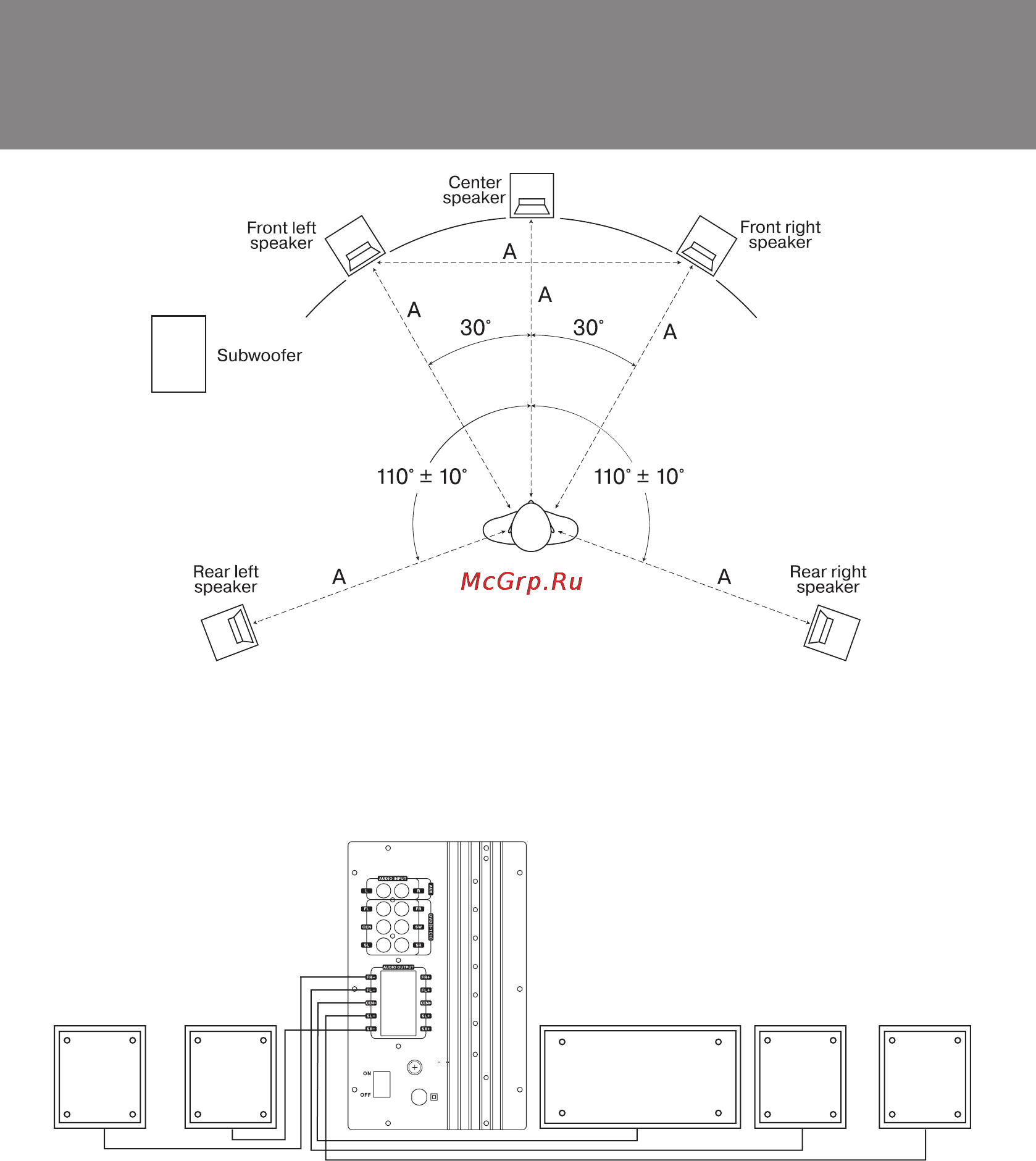

Fig. 5. Placement of the speakers

Connections illustration

• To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and

turn o the power on all devices before making any connections.

• Connect the Subwoofer, the Center, the Front and the Surround Speakers (sww Fig. 6).

Fig. 6. Connections of the Subwoofer, the Center, the Front and the Surround Speakers

FUSE

Содержание

Ht 435r 1
Руководство по эксплуатации 1
Активная акустическая система 5 для домашнего кинотеатра 2
Ht 435r 3
Руководство по эксплуатации 3
Активная акустическая система 5 для домашнего кинотеатра 4
Задняя панель 4
Особенности ас 4
Панель управления 4
Ht 435r 5
Руководство по эксплуатации 5
Активная акустическая система 5 для домашнего кинотеатра 6
Ht 435r 7
Руководство по эксплуатации 7
Активная акустическая система 5 для домашнего кинотеатра 8
Подключение источников сигнала 8
Ht 435r 9
Руководство по эксплуатации 9
Активная акустическая система 5 для домашнего кинотеатра 10
Ht 435r 11
Активна акустична система 5 для домашнього кінотеатру 12
Ht 435r 13
Керівництво з експлуатації 13
Активна акустична система 5 для домашнього кінотеатру 14
Ht 435r 15
Керівництво з експлуатації 15
Активна акустична система 5 для домашнього кінотеатру 16
Ht 435r 17
Керівництво з експлуатації 17
Front фронтальних center центрального і rear тилових каналів 18
Активна акустична система 5 для домашнього кінотеатру 18
Натисніть кнопку standby a на пду мал 3 або на передній панелі сабвуфера мал 1 система перейде в робочий режим при цьому за умовчанням активним буде стереовхід aux для вибору 18
Ht 435r 19
Керівництво з експлуатації 19
Ht 435r 20
Operation manual 20
Active home theater speaker system 21
Ht 435r 21
Operation manual 21
Active home theater speaker system 22
Active home theater speaker system 23
Ht 435r 23
Operation manual 23
Active home theater speaker system 24
Preparation and operation speaker placement to achieve optimum sound it s recommended that you place the speakers according to fig 5 the center and front speakers should be located along an imaginary circle with the distance between the listener and the center channel speaker as a radius and the lis tener s head as the center each of the three speakers should be placed at equal distance from the listener the front speakers and the listener make up an equilateral triangle the rear speakers are placed at the same distance from the listener on the imaginary circle too at an angle of nearly 110 to the listener display axis avoid placing your speakers in the corners and close to walls as this can lead to unwanted resonance and distortions if possible place them at least 20 cm away from walls for more accurate perception the tweeters should be at the listener s ear level do not locate the speakers in niches such placement can affect the sound badly especially in the lows the subwoofer emits 24
Remote control battery installation open the battery compartment on the back of the remote control insert 2 aaa type batteries included close the battery compartment 24
Active home theater speaker system 25
Ht 435r 25
Operation manual 25
Active home theater speaker system 26
Button on the front panel at your own discretion with the help of corresponding remote control buttons or on the subwoofer front panel adjust the volume with buttons vol the master volume control with front front channels center central channel and rear rear channels volume control 26
E on position on the subwoofer rear panel fig 2 the device will switch on in standby mode to turn the system to operation mode press standby button a on the remote control fig 3 or on the subwoofer front panel fig 1 aux stereo input is active by default choose an input with corresponding remote control buttons or input select 26
Switch on the htts with 26
Active home theater speaker system 27
Ht 435r 27
Operation manual 27
Ht 435r 28
Registered trademark of oy sven scandinavia ltd finland 28
You want we can 28
Активная акустическая система 5 для домашнего кинотеатра 28
