INPUT
REMOTE CONTROL
AUX PCST-BY
MUTE TRE+BASS+
RESET
VOLUME +–
TRE–BASS–

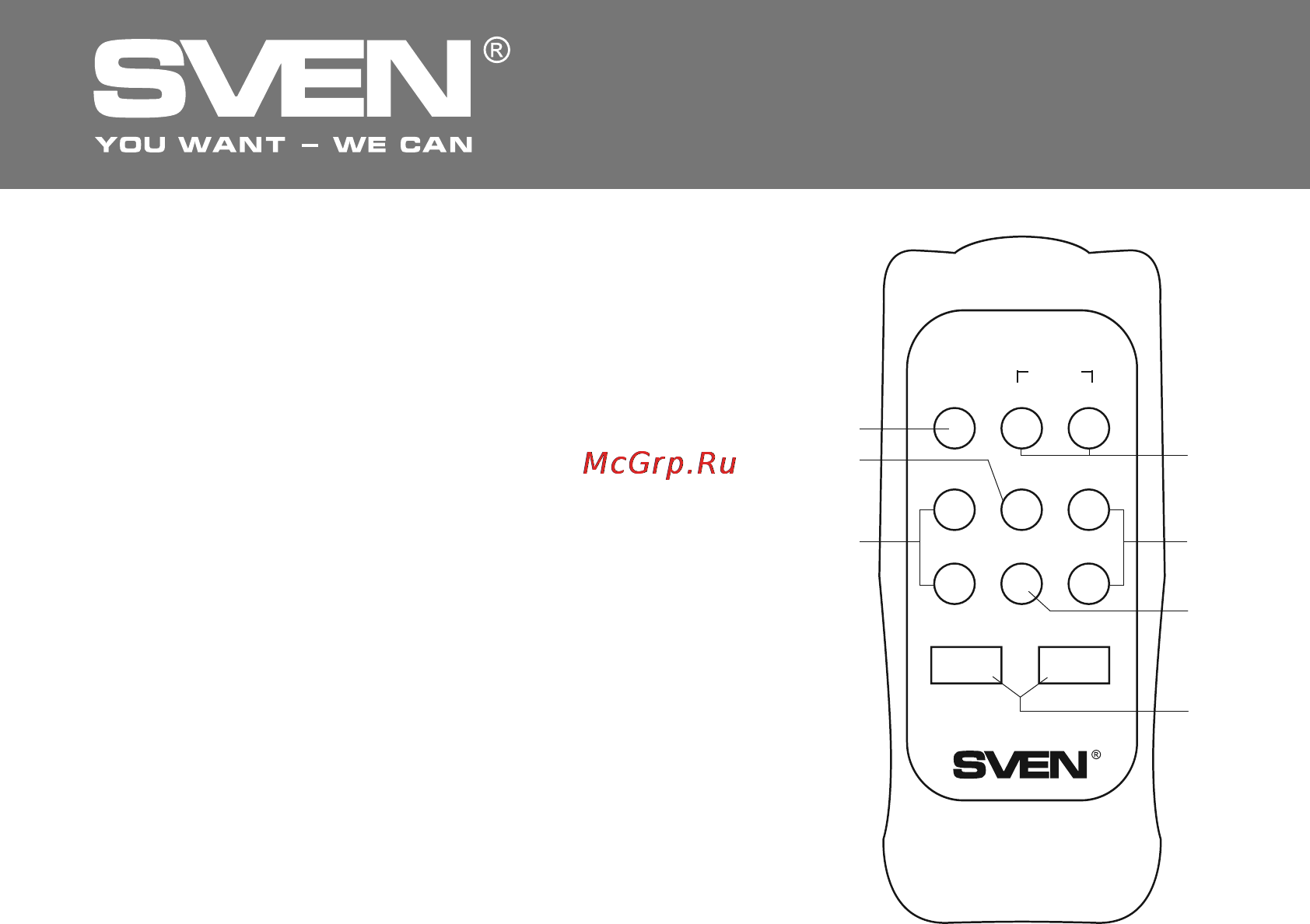

Fig. 4. Remote control
5. PREPARATION AND OPERATION
Speaker placement
• Place the speakers symmetrically to the listener at least one
meter away.
• Since the speaker system has bass reԜex port on the rear pa-
nel, place it at the distance of 20-30 cm from a wall or any
other obstacle.
• Place MSS far away from monitors and TV sets, as insigni-
ԛcant image distortion in these supersensitive devices is
possible.
Installation and operation
ROYAL 1R and ROYAL 2R Multimedia Speaker Systems can be
connected to virtually any audio source: DVD/CD, PC, laptop,
etc. (see connection diagrams, Fig. 5a and Fig. 5b).
• Before making any connections, make sure that the MSS is
switched oԚ. Connect the speakers to each other using the
audio cable (included). To do this, unscrew the binding posts
on the passive speaker, insert the positive (red) cable end into
the hole of the positive binding post, and the negative (white)
cable end into the hole of the negative binding post, as shown
in Fig. 5a and Fig. 5b, and then connect the cable to SPEAKER
R g on the active speaker in the same way. Screw up the
binding posts tight.
Notes:
• Always match the polarity.
• Do not short the speaker cable ends together.
• After connecting, all the binding posts must be tightened well.
• To connect the MSS to a TV or DVD/CD player, plug the RCA jacks of the 2RCA to 2RCA stereo
signal cable (included) to AUX AUDIO INPUT R/L f of the active speaker, and connect the other RCA
jacks of the signal cable to the output of the TV, DVD/CD players, as shown in Fig. 5a and Fig. 5b.
• To connect the MSS to a PC, MP3/CD player, plug the RCA jacks of the 2RCA to mini-jack Ø 3,5 mm
(included) stereo signal cable into the DŽDž AUDIO INPUT of the active speaker f, and connect the
mini-jack of the signal cable to the output of the computer sound card or to the audio output
(Ø 3.5 mm jack) of another sound source, as shown in Fig. 5a and Fig. 5b.
Note. Sound quality is directly affected by correctness and reliability of the connection of
cables. The left RCA jacks should be inserted into the left ports of the ampliНer (usually
white), and the right RCA jacks should be inserted into the right ports of the ampliНer
(usually red). It is recommended that cables included into the package contents of the
MSS be used.
• Adjust the volume to its minimum using the VOL- d button on the control panel or control button
VOLUME- g on the remote control, then connect the MSS to the mains outlet via the built-in power
cable j.
