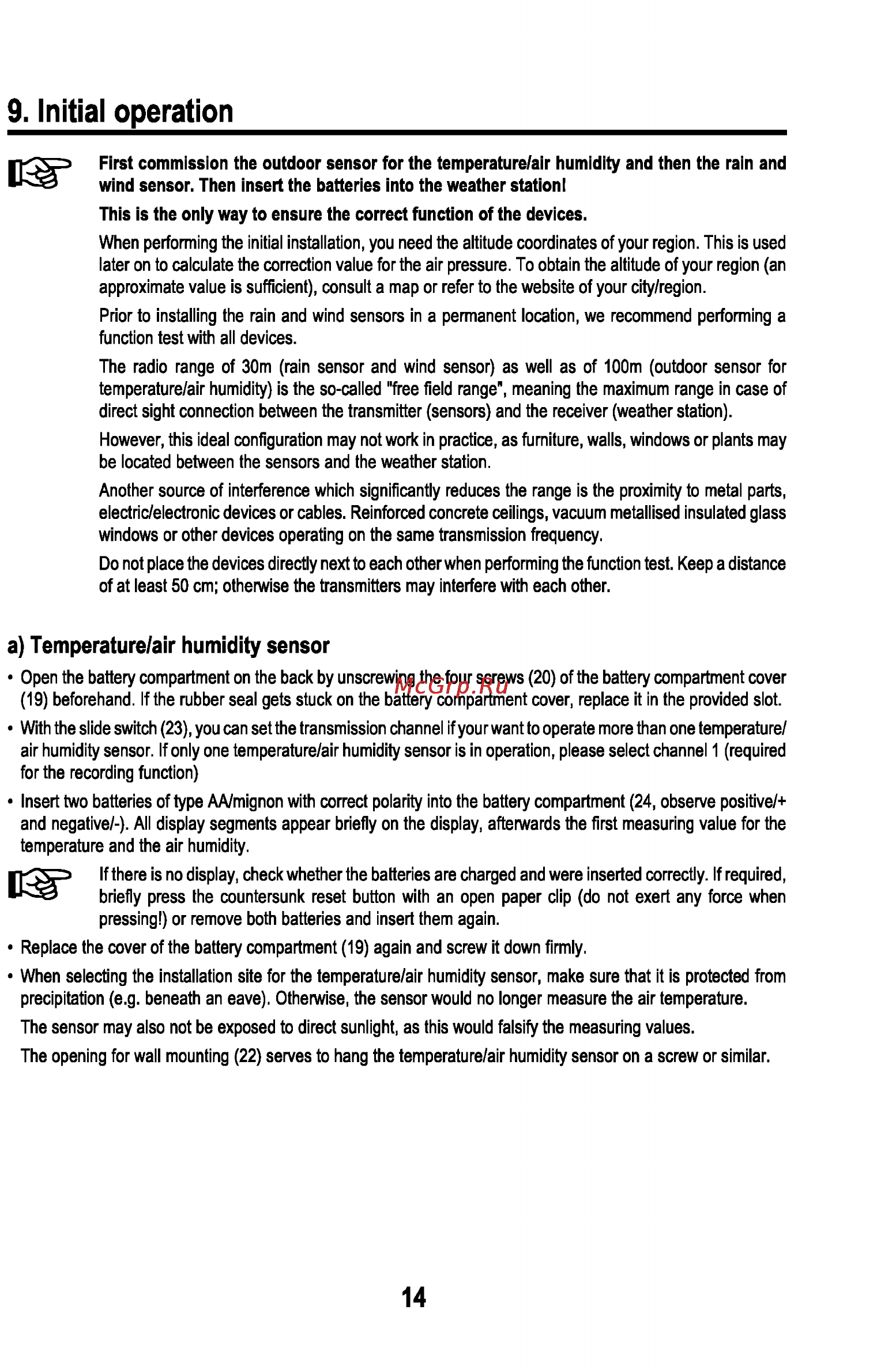

9 Initial operation First commission the outdoor sensor for the temperature air humidity and then the rain and wind sensor Then insert the batteries into the weather station I This is the only way to ensure the correct function of the devices When performing the initial installation you need the altitude coordinates of your region This is used later on to calculate the correction value for the air pressure To obtain the altitude of your region an approximate value is sufficient consult a map or refer to the website of your city region Prior to installing the rain and wind sensors in a permanent location we recommend performing a function test with all devices The radio range of 30m rain sensor and wind sensor as well as of 100m outdoor sensor for temperature air humidity is the so called free field range meaning the maximum range in case of direct sight connection between the transmitter sensors and the receiver weather station However this ideal configuration may not work in practice as furniture walls windows or plants may be located between the sensors and the weather station Another source of interference which significantly reduces the range is the proximity to metal parts electric electronic devices or cables Reinforced concrete ceilings vacuum metallised insulated glass windows or other devices operating on the same transmission frequency Do not place the devices directly next to each other when performing the function test Keep a distance of at least 50 cm otherwise the transmitters may interfere with each other a Temperature air humidity sensor Open the battery compartment on the back by unscrewing the four screws 20 of the battery compartment cover 19 beforehand If the rubber seal gets stuck on the battery compartment cover replace it in the provided slot With the slide switch 23 you can set the transmission channel if your want to operate more than one temperature air humidity sensor If only one temperature air humidity sensor is in operation please select channel 1 required for the recording function Insert two batteries of type AA mignon with correct polarity into the battery compartment 24 observe positive and negative All display segments appear briefly on the display afterwards the first measuring value for the temperature and the air humidity IKS ere s no display check whether the batteries are charged and were inserted correctly If required briefly press the countersunk reset button with an open paper clip do not exert any force when pressing or remove both batteries and insert them again Replace the cover of the battery compartment 19 again and screw it down firmly When selecting the installation site for the temperature air humidity sensor make sure that it is protected from precipitation e g beneath an eave Otherwise the sensor would no longer measure the air temperature The sensor may also not be exposed to direct sunlight as this would falsify the measuring values The opening for wall mounting 22 serves to hang the temperature air humidity sensor on a screw or similar 14
