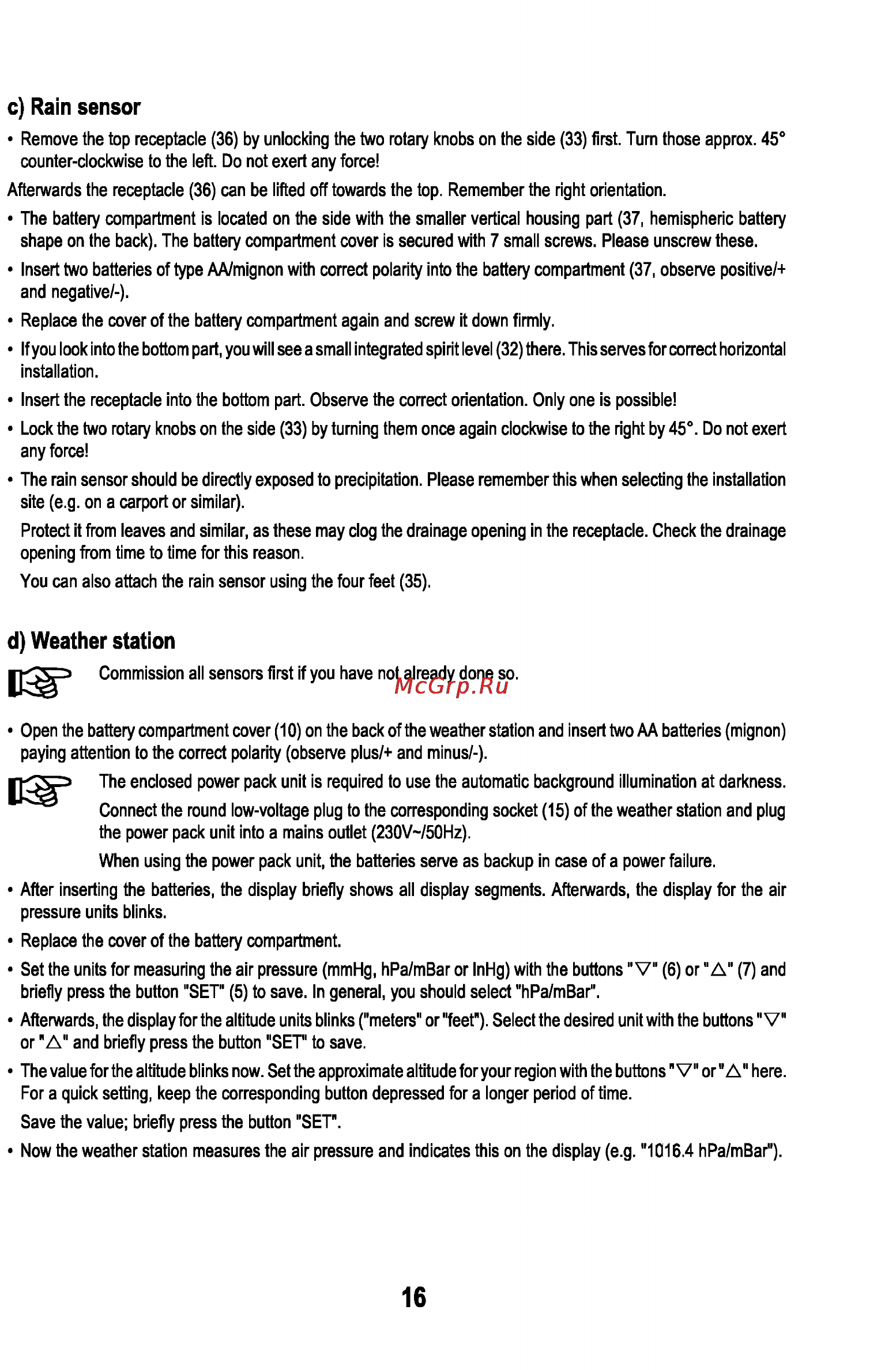

Sencor SWS 180 USB [18/48] C rain sensor
![Sencor SWS 180 USB [18/48] C rain sensor](/views2/1093373/page18/bg12.png)
Содержание
- Sgncor 1
- Sws 180 usb 1
- Ft ft 6 ft ft ft 8 5
- Introduction 6
- Contents 7
- Intended use 7
- A weather station 8
- Features and functions 8
- Symbol explanation 8
- B temperature air humidity sensor 9
- C rain sensor 9
- D wind sensor 9
- Safety instructions 10
- Notes on batteries and rechargeable batteries 11
- A weather station 12
- Operating elements 12
- B temperature air humidity sensor 13
- C wind sensor 14
- D rain sensor 15
- A temperature air humidity sensor 16
- Initial operation 16
- B wind sensor 17
- C rain sensor 18
- D weather station 18
- Dcf reception 20
- A performing a dcf reception test 21
- B searching for sensors 21
- C background illumination 21
- Operating the weather station basic functions 21
- D selecting the function 22
- A function weather symbol 23
- Description of the functions 23
- Selecting the altitude unit meter or feet 23
- Selecting the units for air pressure mmhg hpa mbar or inhg 23
- Setting adjusting the air pressure to sea level height 23
- Setting adjusting the altitude 23
- Switching the display 23
- Occ c c o 24
- Turning the thunderstorm alarm on off 24
- Viewing the air pressure values of the past 24 hours 24
- Viewing the moon phase of the past or next 39 days 24
- Viewing the temperature or air humidity values of the past 24 hours 24
- Weather forecast symbols 25
- Air pressure trend display 26
- B function temperature air humidity symbol 27
- Deleting minimum maximum values 27
- Dew point display 27
- Display of the minimum maximum values for temperature air humidity 27
- Switching between several temperature air humidity sensors 27
- Switching the display unit c f 27
- Automatic switching in case of several temperature air humidity sensors 28
- Selecting or turning the temperature alarm on off 28
- Setting the temperature values for the temperature alarm 28
- Trend display for temperature air humidity 28
- Comfort indicator for interior air humidity 29
- C function wind symbol 30
- Deleting the value memory for the wind speed 30
- Switching the display data 30
- Switching the units for the display of the wind speed 30
- Viewing the value memory for the wind speed 30
- Setting the wind speed alarm 31
- Turning the wind speed alarm on off 31
- D function rain symbol 32
- Deleting the value memory for the rain quantity 32
- Setting the rain quantity alarm 32
- Switching the display data 32
- Turning the rain quantity alarm on off 32
- E function time date symbol 33
- Setting the language for the weekday geographic position date and time 33
- Switching the display data 33
- Selecting the alarm function or viewing the alarm time 35
- Setting the alarm time 35
- Switching the alarm function on off 35
- Snooze function snooze 36
- Stopping the alarm signal 36
- Turning the pre alarm on off setting the pre alarm 36
- Entering the location data 37
- F function sunrise sunset symbol 37
- Switching the display data 37
- Viewing the sunrise sunset times 38
- A software installation 39
- B pc connection 39
- C short description of the software 39
- Software installation connection to the pc 39
- A weather station 40
- B sensors 40
- Replacing the batteries 40
- Troubleshooting 41
- Maintenance and cleaning 43
- Disposal 44
- Disposal of used electrical and electronic appliances 44
- Instructions and information regarding the disposal of used packaging 44
- Materials 44
- A weather station 45
- B power pack unit for the weather station 45
- Technical data 45
- C temperature air humidity sensor 46
- D wind sensor 46
- E rain sensor 46
- Appendix a city codes 47
- Appendix b dst codes 48
- Jkgp the dcs codes are settings for switching between daylight savings time and normal time among other things they are required to calculate the sunrise sunset times correctly 48
- Please observe the table in appendix a for this purpose 48
Похожие устройства
- Supra KES-1709 White Инструкция по эксплуатации
- Philips SPF7010 Инструкция по эксплуатации
- Sencor SWS 130 Инструкция по эксплуатации
- Philips Daily Collection HD 9310/14 Инструкция по эксплуатации
- Philips SPF7208 Инструкция по эксплуатации
- Sencor SWS 120 Инструкция по эксплуатации
- Tefal Express II KI170D30 Инструкция по эксплуатации
- Philips SPF7008 Инструкция по эксплуатации
- Sencor SWS 65 Инструкция по эксплуатации
- Bork B702 Инструкция по эксплуатации
- LG GR-V292SC Инструкция по эксплуатации
- Philips SPF4208 Инструкция по эксплуатации
- Maxwell MW-1960 ST Инструкция по эксплуатации
- Philips SPF2027 Инструкция по эксплуатации
- LG GR-V302RLC Инструкция по эксплуатации
- Philips SPF2017 Инструкция по эксплуатации
- Krups CITIZ RED XN720510 Инструкция по эксплуатации
- LG GR-V302SC Инструкция по эксплуатации
- Philips AZ2536 Инструкция по эксплуатации
- Krups U&Milk XN260110 Инструкция по эксплуатации
c Rain sensor Remove the top receptacle 36 by unlocking the two rotary knobs on the side 33 first Turn those approx 45 counter clockwise to the left Do not exert any force Afterwards the receptacle 36 can be lifted off towards the top Remember the right orientation The battery compartment is located on the side with the smaller vertical housing part 37 hemispheric battery shape on the back The battery compartment cover is secured with 7 small screws Please unscrew these Insert two batteries of type AA mignon with correct polarity into the battery compartment 37 observe positive and negative Replace the cover of the battery compartment again and screw it down firmly If you look into the bottom part you will see a small integrated spirit level 32 there This serves for correct horizontal installation Insert the receptacle into the bottom part Observe the correct orientation Only one is possible Lock the two rotary knobs on the side 33 by turning them once again clockwise to the right by 45 Do not exert any force The rain sensor should be directly exposed to precipitation Please remember this when selecting the installation site e g on a carport or similar Protect it from leaves and similar as these may clog the drainage opening in the receptacle Check the drainage opening from time to time for this reason You can also attach the rain sensor using the four feet 35 d Weather station Commission all sensors first if you have not already done so Open the battery compartment cover 10 on the back of the weather station and insert two AA batteries mignon paying attention to the correct polarity observe plus and minus IKS The enclosed power pack unit is required to use the automatic background illumination at darkness Connect the round low voltage plug to the corresponding socket 15 of the weather station and plug the power pack unit into a mains outlet 230V 50Hz When using the power pack unit the batteries serve as backup in case of a power failure After inserting the batteries the display briefly shows all display segments Afterwards the display for the air pressure units blinks Replace the cover of the battery compartment Set the units for measuring the air pressure mmHg hPa mBar or InHg with the buttons V 6 or A 7 and briefly press the button SET 5 to save In general you should select hPa mBar Afterwards the display for the altitude units blinks meters 1 or feet Select the desired unit with the buttons V or A and briefly press the button SET to save The value for the altitude blinks now Set the approximate altitude foryour region with the buttons V or A here For a quick setting keep the corresponding button depressed for a longer period of time Save the value briefly press the button SET Now the weather station measures the air pressure and indicates this on the display e g 1Q16 4 hPa mBar 16
