Sencor SWS 180 USB [17/48] B wind sensor

Содержание

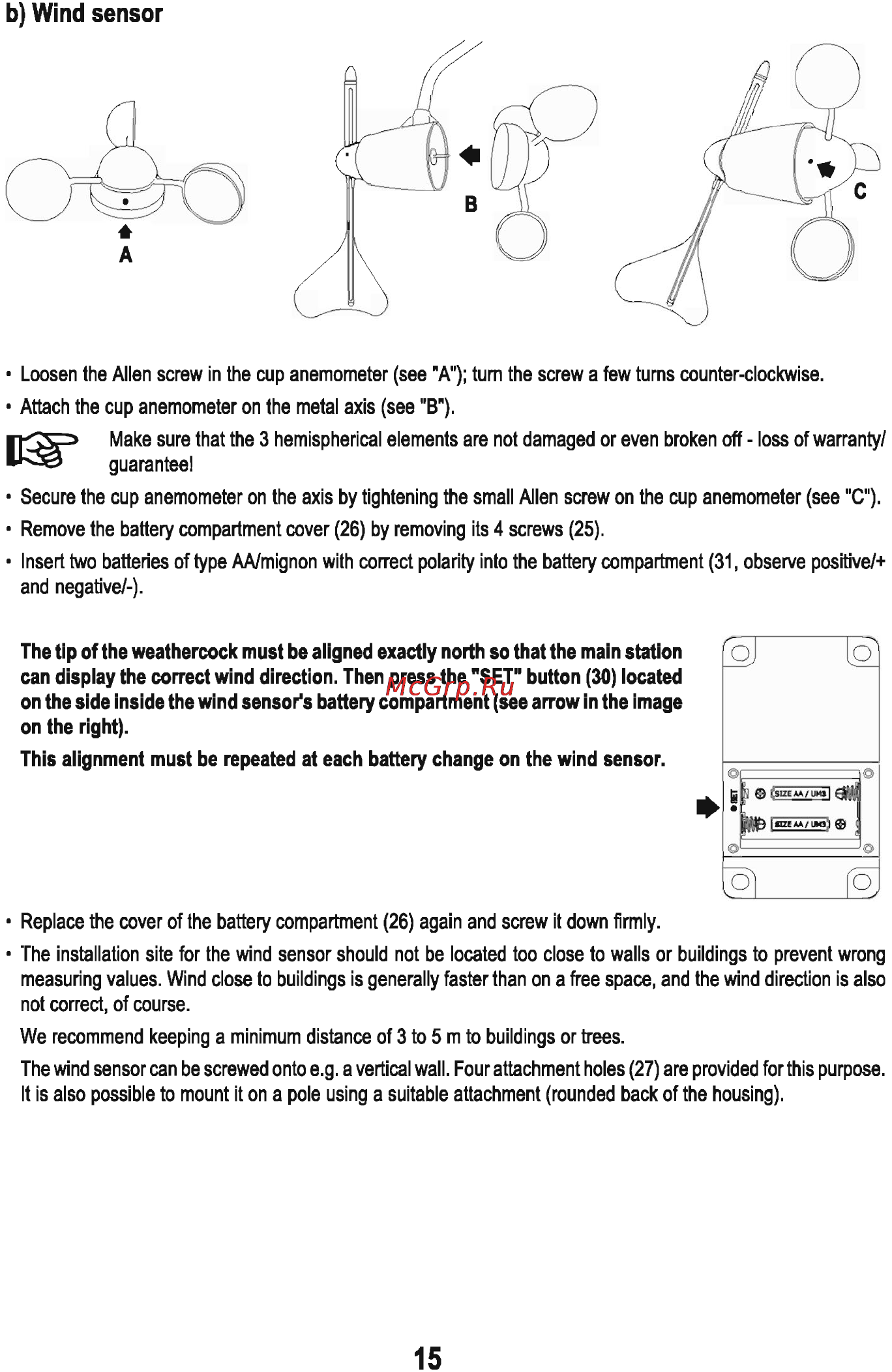

b Wind sensor Loosen the Allen screw in the cup anemometer see A turn the screw a few turns counter clockwise Attach the cup anemometer on the metal axis see B Make sure that the 3 hemispherical elements are not damaged or even broken off loss of warranty guarantee Secure the cup anemometer on the axis by tightening the small Allen screw on the cup anemometer see C Remove the battery compartment cover 26 by removing its 4 screws 25 Insert two batteries of type AA mignon with correct polarity into the battery compartment 31 observe positive and negative The tip of the weathercock must be aligned exactly north so that the main station can display the correct wind direction Then press the SET button 30 located on the side inside the wind sensor s battery compartment see arrow in the image on the right This alignment must be repeated at each battery change on the wind sensor Replace the cover of the battery compartment 26 again and screw it down firmly The installation site for the wind sensor should not be located too close to walls or buildings to prevent wrong measuring values Wind close to buildings is generally faster than on a free space and the wind direction is also not correct of course We recommend keeping a minimum distance of 3 to 5 m to buildings or trees The wind sensor can be screwed onto e g a vertical wall Four attachment holes 27 are provided for this purpose It is also possible to mount it on a pole using a suitable attachment rounded back of the housing 15
