Samsung AW-1407B [3/5] 3 disassemby and reassembly procedure

4-3Samsung Electronics

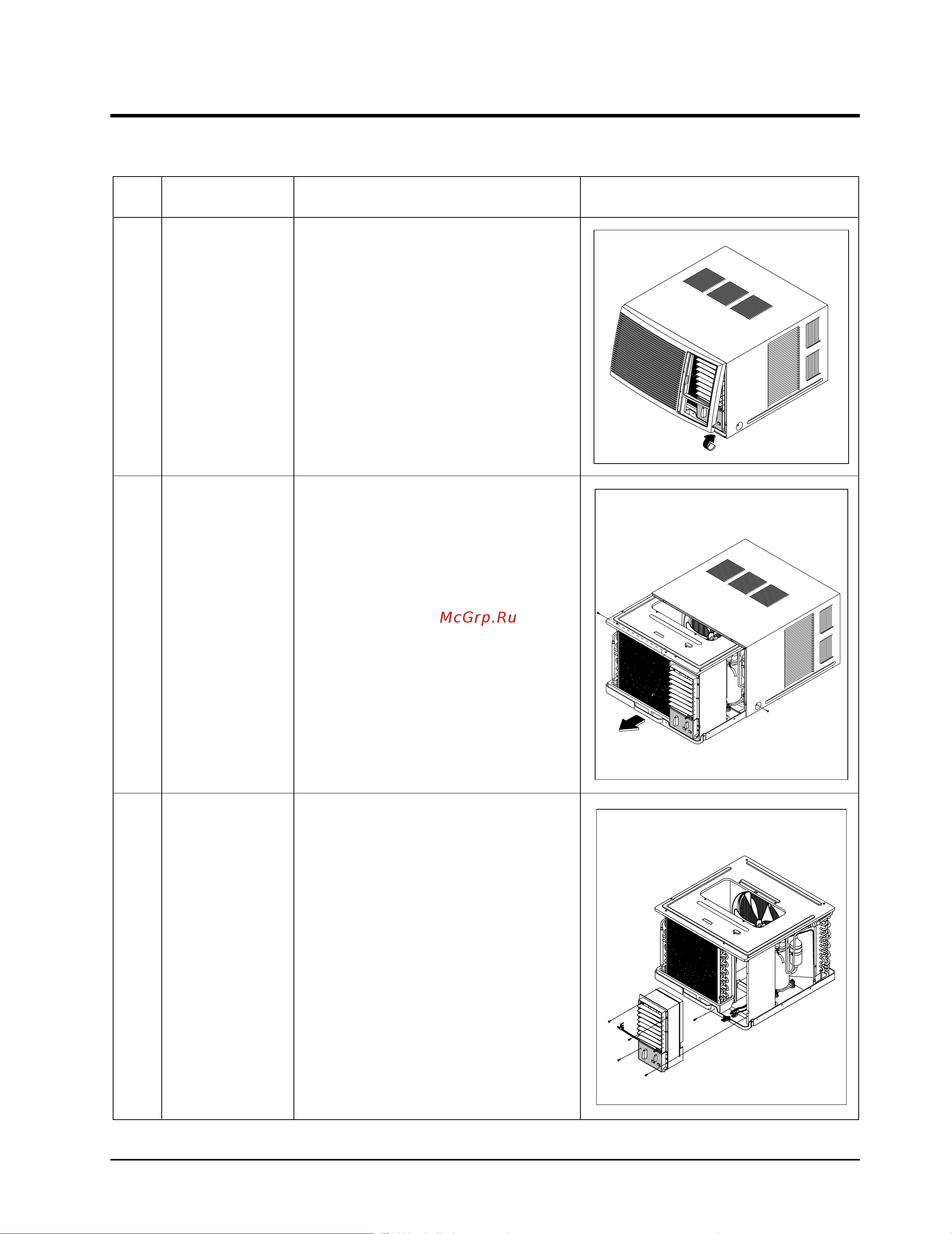

4-3 Disassemby and Reassembly Procedure

Stop operating the air conditioner, and pull out the power cord before repair.

No. Part name Procedures Remarks

Ass'y Grille

Ass'y Cabinet

Ass'y Control

1. Hold the lower part of the front grille with

two hands while pressing down on both

sides of the lower part of the cabinet,

pull it forward by about 30¡˘, and then lift

it up for removal.

1. Remove the screws on both sides of the

cabinet to disconnect the cabinet and

frame.

2. Pull the handle on the front side of the

bottom, and remove the unit from the

cabinet.

1. Remove four machine screws,

and earth wire screw.

2. Take out the Control Box forward,

and remove two lead-wire assemblies.

¤Ł

¤Ø
