Disassembly and Reassembly

4-5Samsung Electronics

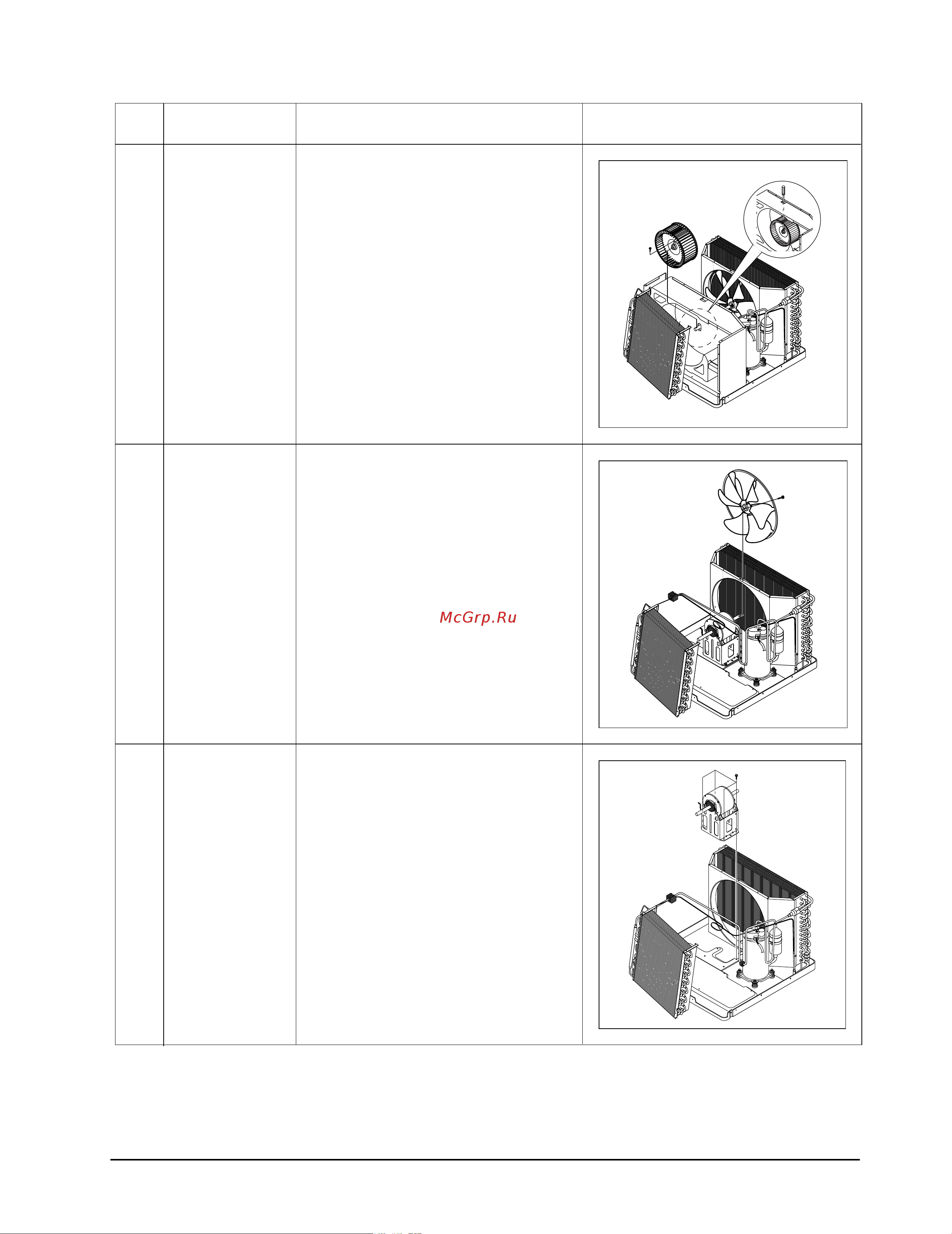

No. Part name Procedures Remarks

Blower

Propeller Fan

Motor Supporte

& Motor

1. Loosen the hexagon nut, and

remove the blower.

1. Loosen the hexagon nut, and

remove the fan.

1. Remove four hexagon nuts on

the bottom.

2. Move the motor-assembly toward

the condenser, and lift up the

motor-assembly from the frame.

3. Remove the clips on both sides

carefully using the (-) driver.
