FG
10 GB
cod. 3540I950 - 06/2007 (Rev. 00)
2.5 Electrical connections
Fitting the control panel
1. Remove the control panel cover "P" by undoing the two side screws "V".
2. Arrange the cables of the fan "B", the sensor "A" and the door microswitch "C" as shown in fig. 4
3. Connect the fan cable to the terminal block, respecting the colours indicated in fig. 5 and fix the condenser"R" with
the special adhesive clamp.
4. Connect the cable of the microswitch "C" to the terminals as shown in fig. 5.
5. Insert the probe "A" in the special pocket.

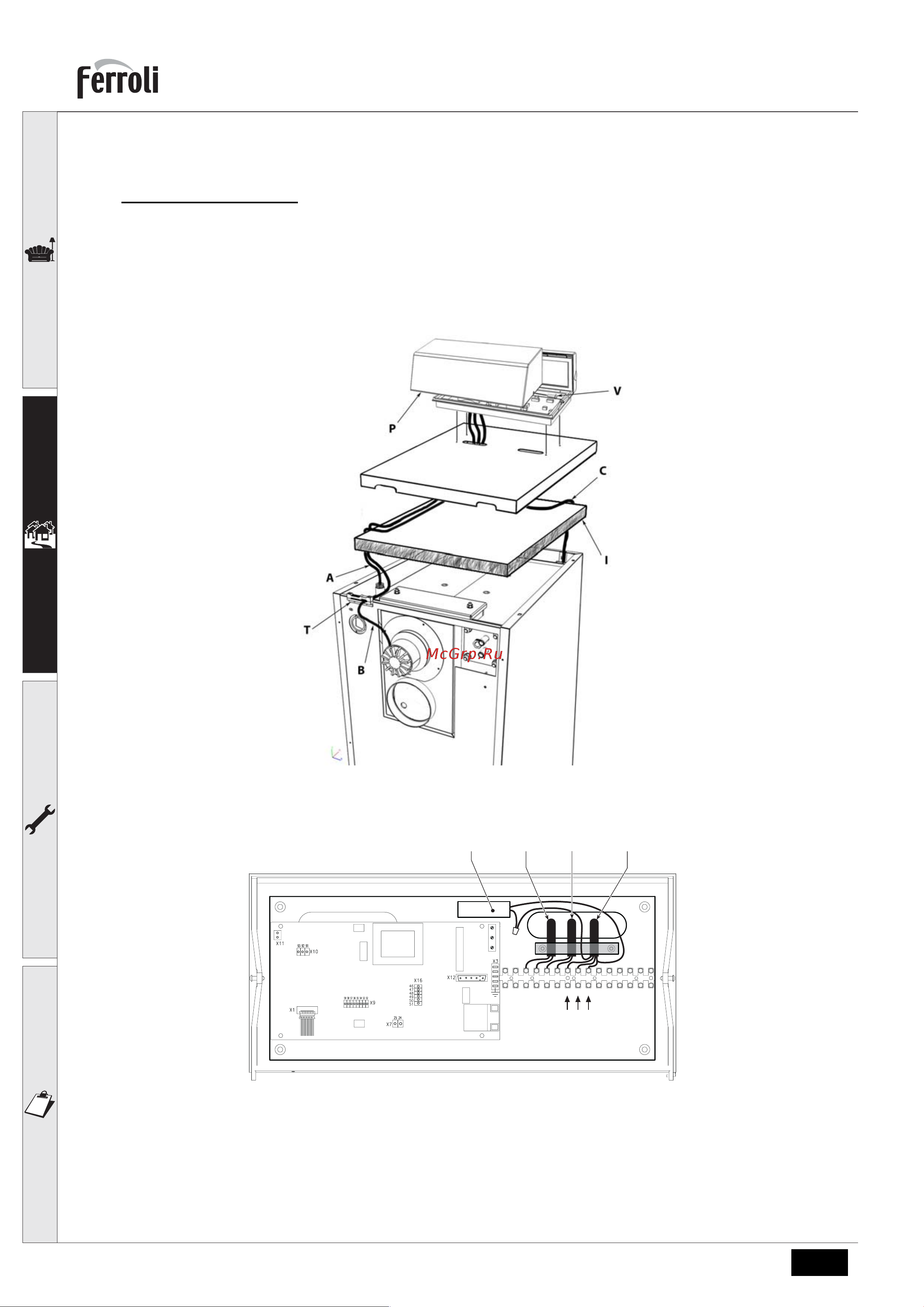

fig. 4 - Fitting the control panel
fig. 5 - Connection to the terminal block
C Condenser
16 Fan
34 Heating temperature sensor
296 Door microswitch
14131211109876543
34 296 16
Nero/Bianco
Blu
Giallo/Verde
