Gigabyte GA EX58 UD3R rev 1 0 [31/120] Coma serial port header white

Hardware Installation- 31 -

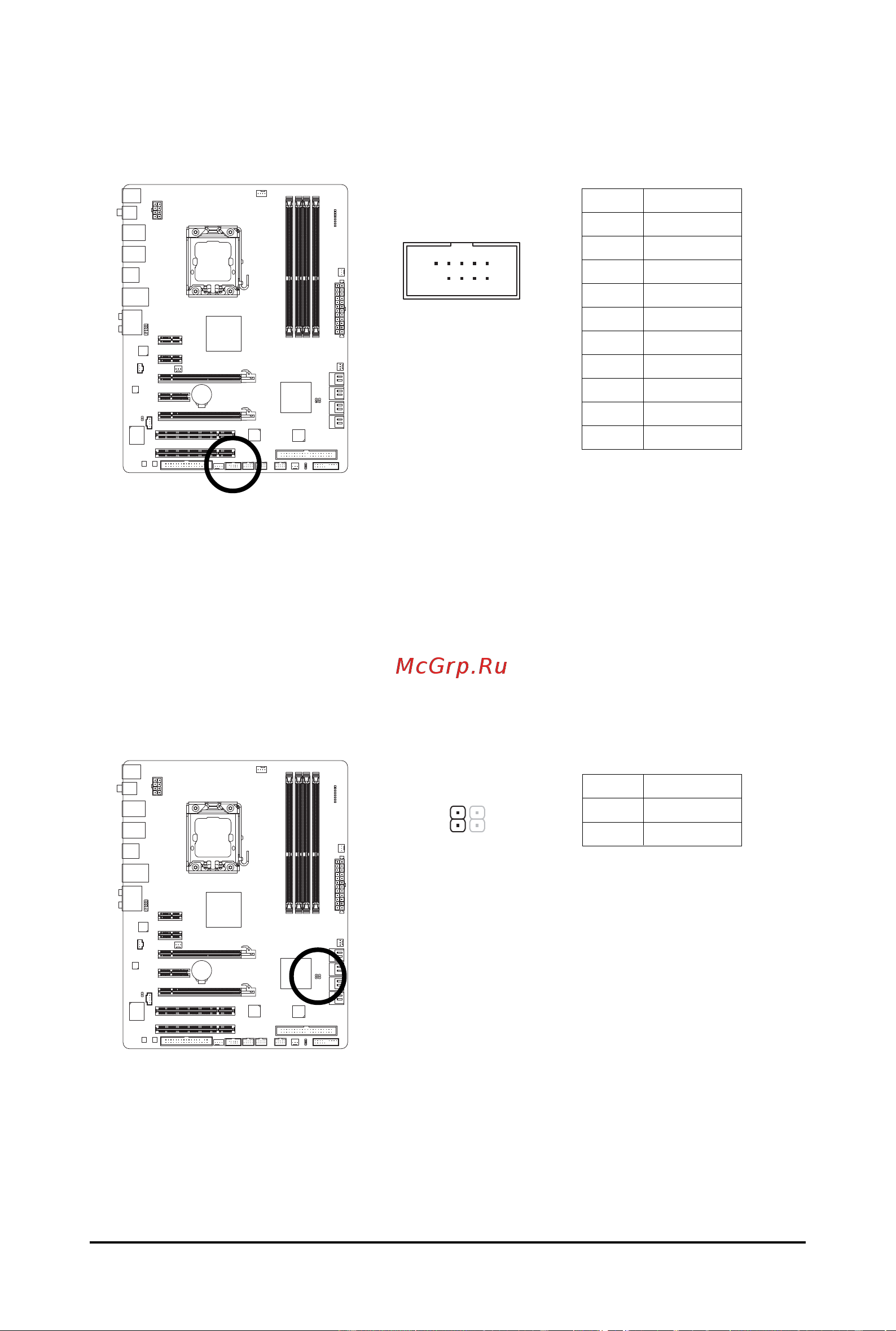

21) CI (Chassis Intrusion Header)

This motherboard provides a chassis detection feature that detects if the chassis cover has been

removed. This function requires a chassis with chassis intrusion detection design.

Pin No. Definition

1 Signal

2 GND

20) COMA (Serial Port Header, White)

The COMA header can provide one serial port via an optional COM port cable. For purchasing the

optional COM port cable, please contact the local dealer.

Pin No. Definition

1 NDCD-

2 NSIN

3 NSOUT

4 NDTR-

5 GND

6 NDSR-

7 NRTS-

8 NCTS-

9 NRI-

10 No Pin
