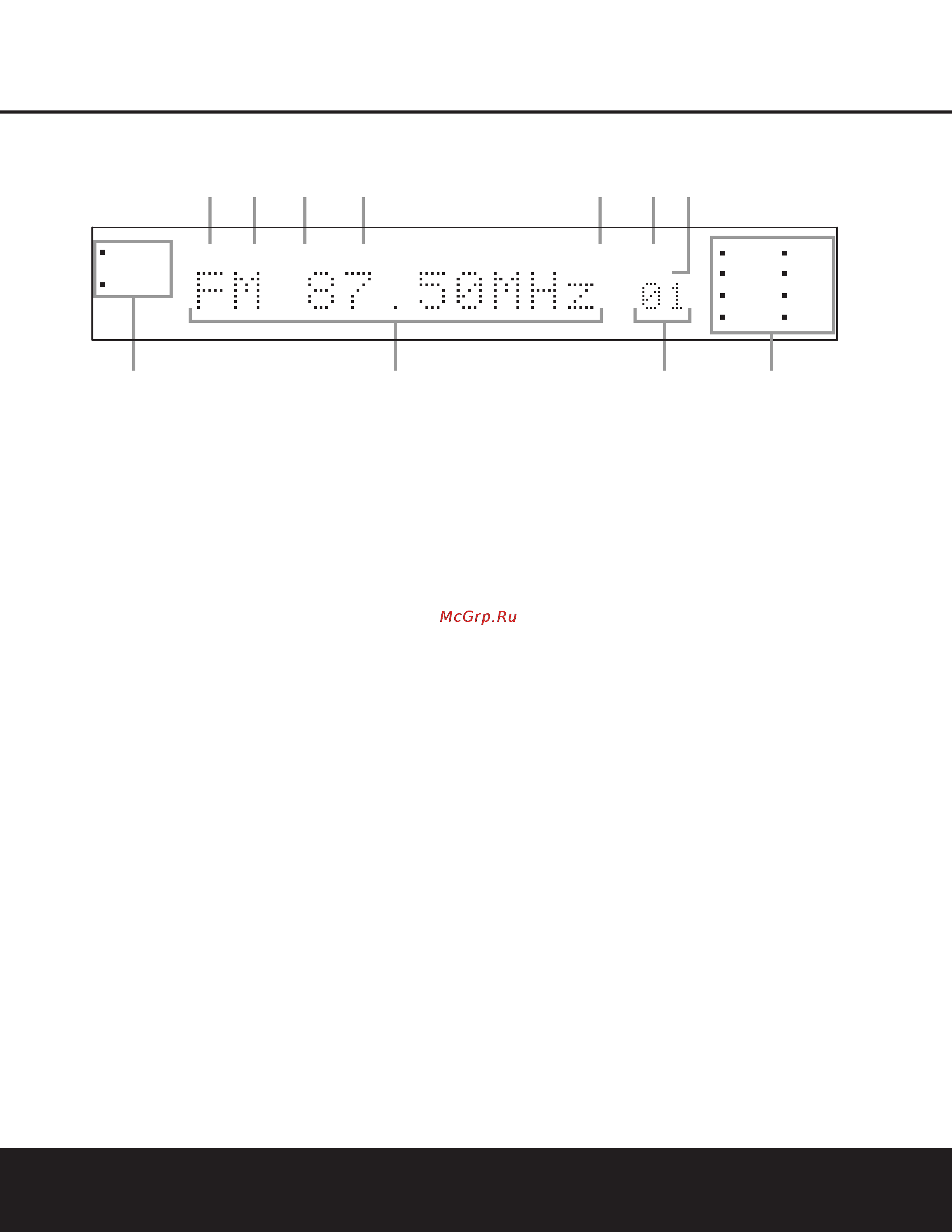

FRONT-PANEL INFORMATION DISPLAY
FRONT-PANEL INFORMATION DISPLAY 7
F E
G
A
B
H
IJK
C
SPEAKER 2
SPEAKER 1
PHONO
CD
FM
VID 1
TAPE M.
VID 2
PRESET
AM
VID 3
AUTO TUNED STEREO
MUTE
SLEEP
MEMORY
D
A Speaker Selection Indicators
B Main Information Display
C Preset Number/Sleep Timer
D Input Indicators
E Sleep Indicator
F Preset Indicator
G Memory Indicator
H Stereo Indicator
I Tuned Indicator
J Auto Indicator
K Mute Indicator
A Speaker Selection Indicators: The dot to the
left of the indicator for each speaker pair will light
when that pair is active. Press the
Speaker 1 5 or
Speaker 2 7 selectors to activate either or both
pairs of speakers.
B Main Information Display: This display shows
messages relating to the status, input source, tuner or
other aspects of the HK 3380’s operation.
C Preset Number/Sleep Timer: When the tuner is
in use, these numbers indicate the specific preset
memory location in use. (See page 15 for more infor-
mation on preset stations.) When the Sleep function is
in use, these numbers show how many minutes
remain before the unit goes into the Standby mode.
D Input Indicators: The dot to the left of the name
of the device that is currently the source input for the
HK 3380 will light.
When the device connected to the
Tape Monitor
Inputs
¢ has been selected, the dot to the left of
the
Tape Monitor Input Indicator D will flash to
indicate that you are hearing the signal the HK 3380
is receiving from the device connected to the
Tape
Monitor Inputs
¢.The dot to the left of the Input
Indicator
D for the last-selected source input will
remain lit. (See page 15 for more information on
monitoring tape recordings.)
E Sleep Indicator: This indicator lights when the
Sleep function is in use.The numbers in the Preset
Number/Sleep Timer Indicators will show the minutes
remaining before the HK 3380 goes into the Standby
mode. (See page 14 for more information on the
Sleep function.)
F Preset Indicator: This indicator lights when the
tuner is in use to show that the
Preset Number/
Sleep Timer
C is showing the station’s preset
memory number. (See page 15 for more information
on tuner presets.)
G
Memory Indicator: This indicator flashes when
entering presets and other information into the tuner’s
memory.
H Stereo Indicator: This indicator lights when an FM
station is being tuned in stereo.
I
Tuned Indicator:
This indicator lights when a sta-
tion is being received with sufficient signal strength to
provide acceptable listening quality.
J Auto Indicator: This indicator lights when the
tuner’s Auto Stereo mode is in use.
K Mute Indicator: This indicator flashes to remind
you that the HK 3380’s output has been silenced by
pressing the
Mute Button 4®. Press the Mute
button again to return to the previously selected
output level.
NOTE: To make it easier to follow the instructions that refer to this illustration, a larger copy may be the Product Support section for this product
at www.harmankardon.com.
NOTE: To make it easier to follow the instructions that refer to this illustration, a larger copy may be the Product Support section for this product
at www.harmankardon.com.
