Harman/Kardon SABRE SB 35 [10/16] Operation
![Harman/Kardon SABRE SB 35 [10/16] Operation](/views2/1094092/page10/bga.png)
SB35
Operation
10
NOTE: The SABRE SB35’s On-screen Information Display (OSD) only appears
through the HDMI TV Out connector. If you want to see the SABRE SB35’s
OSD, you need to connect its HDMI ARC TV Out connector to your TV even if
you are not connecting any HDMI video source devices to the SABRE SB35’s
HDMI In 1/2/3 connectors.
AUX IN
OPTICAL
DC IN 24V 2.7A
IR TRANSMITTER
PAIRING
FW UPGRADE
HDMI 3
HDMI 2
HDMI 1
HDMI TV
HDMI In 1/2/3: If any of your source devices have HDMI connectors, connect them
to the soundbar’s HDMI In 1/2/3 connectors for the best possible video and audio
performance quality. Since the HDMI cable carries both digital video and digital audio
signals, you do not have to make any additional audio connections for source devices
you connect via HDMI connectors.
NOTE: The SABRE 35 uses micro HDMI to HDMI connector and you have to
purchase micro HDMI cables as these are not provided with SB35.
Aux In and Optical In connections: If your TV and/or source devices do not have
HDMI connections, you can use the supplied audio cable and/or optical cable to connect
your TV and one source device to the SABRE SB35’s Aux In and/or Optical In connectors,
respectively.
Power Connections

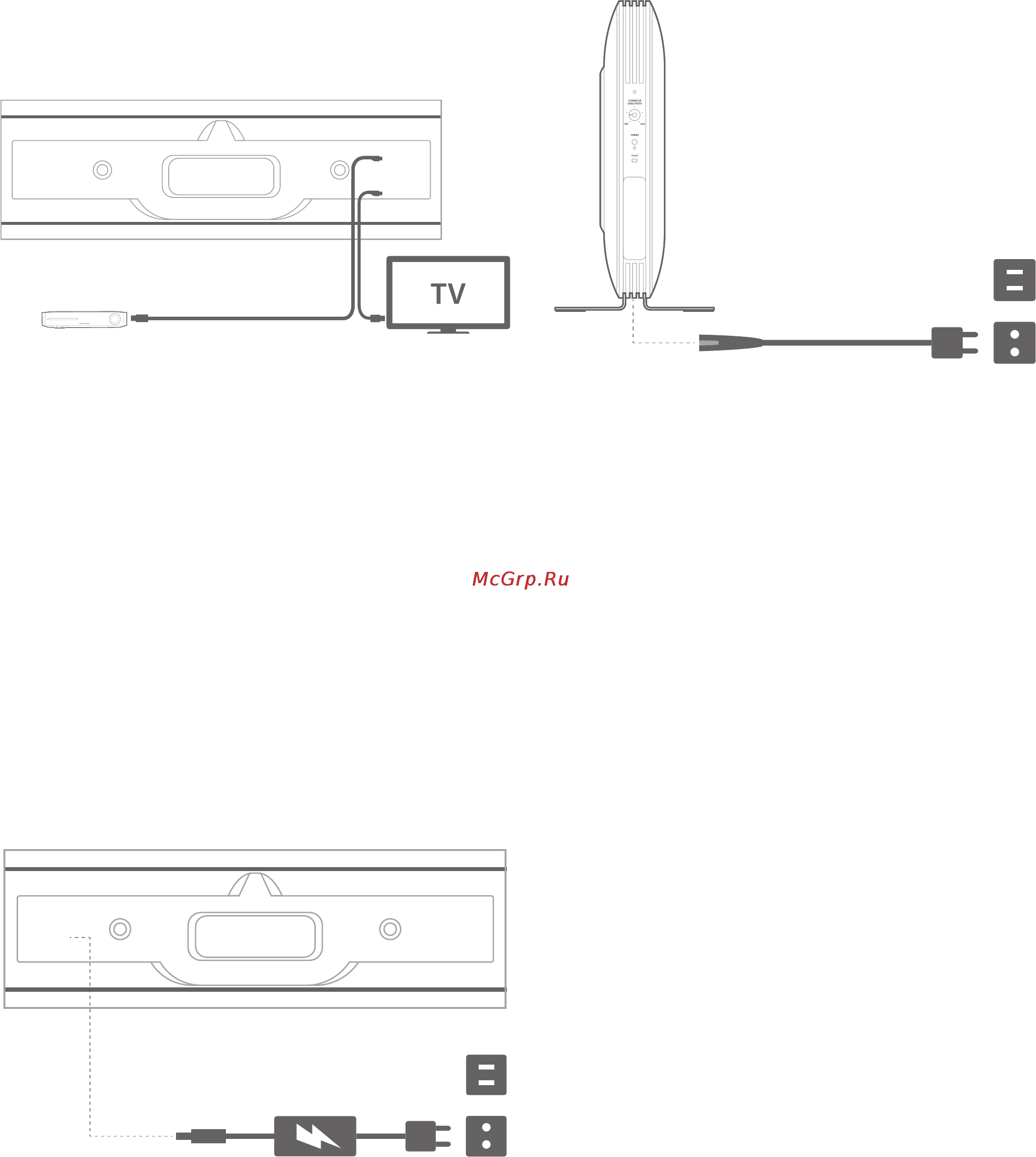

After you have made and verified all of the source connections above:
1. Connect the DC power supply to the soundbar’s power
connection. Then plug the supplied AC cord into the DC power
supply and into an active, unswitched AC outlet..
IMPORTANT: DO NOT plug this cord into the accessory outlets found on some
audio components.
AUX IN
OPTICAL
DC IN 24V 2.7A
IR TRANSMITTER
PAIRING
FW UPGRADE
HDMI 3
HDMI 2
HDMI 1
HDMI TV
2. Plug the subwoofer’s power cord into an active, unswitched AC outlet.
Operation
Turning the SABRE SB35 ON and OFF
Manually: To turn the SABRE SB35 ON or OFF manually, short press the soundbar’s
Power button. Press the Power button on either the soundbar or the remote.
NOTE: If you put the soundbar into Standby manually, you can turn it back
ON by manually pressing the Power button.
Auto turn-on: The SABRE SB35 has a signal detector that will automatically turn the
unit ON when it senses an audio signal on HDMI inputs using CEC command (compatible
product and/or television) or a Bluetooth streaming. The auto turn-on mode is activated
for analog or optical inputs only when the SABRE SB35 goes in auto Standby on sensing
the same audio input signal.
Auto turn-off: The SABRE SB35 will automatically enter Standby mode if no audio
signal is detected at any of its Source input connections for approximately 10 minutes.
If you have programmed the SABRE SB35 to respond to the ON and OFF commands of
your TV remote, you can manually put the SABRE SB35 into the Standby mode without
pressing the Power button.
IMPORTANT: If you will be away from home for an extended period of
time, or if you will not be using the system for an extended period, we
recommend that you unplug from the AC outlet.
