Introduction
5
SB35
SURROUND SOURCE
Power Button: The Power button turns the SABRE SB35 ON/OFF. When the SABRE
SB35 is in Standby mode (Power Indicator is amber), press this button to turn the SABRE
SB35 system ON (Power Indicator turns white).
NOTE: When the SABRE SB35 goes automatically to Standby mode, it will
automatically turn ON whenever it detects an audio signal at the Source
inputs. The SB35 will also automatically wake up from the following sources
if it was on those sources before going to auto-standby.
• Optical audio input
• Analog audio input
For example, if the source input is analog audio when the SABRE SB35 goes to automatic
Standby, it does not wake up even if it senses an audio signal from the optical audio
input.
When the SABRE SB35 system is ON, short press the Power button to put the system in
Standby mode (The Power Indicator turns amber).
NOTE: The system will remain ON for approximately 10 minutes after the
audio signal ceases, and will then automatically go into the Standby mode.
Bluetooth (BT): This button pairs your system with other Bluetooth-enabled devices.
NOTE: SB 35’s Bluetooth device name is SABRE SB35.
Volume Up/Down Buttons: Press the (–) button to reduce the volume; press the (+)
button to increase the volume.
NOTE: Pressing both the SABRE SB35’s Volume buttons at the same time
while the system is ON will mute the system. Pressing either Volume
buttons while the system is mute will restore the sound.
Surround Mode Button: This button turns the SABRE SB35 system’s Harman WAVE
or Virtual Surround processing ON and OFF. The text will be displayed on the panel
display appropriately.
Source Button: Press the SABRE SB35’s Source button to cycle between the sources in
the following order:
1. Bluetooth
2. AUX input
3. Digital Optical In
4. HDMI ARC
5. HDMI 1
6. HDMI 2
7. HDMI 3

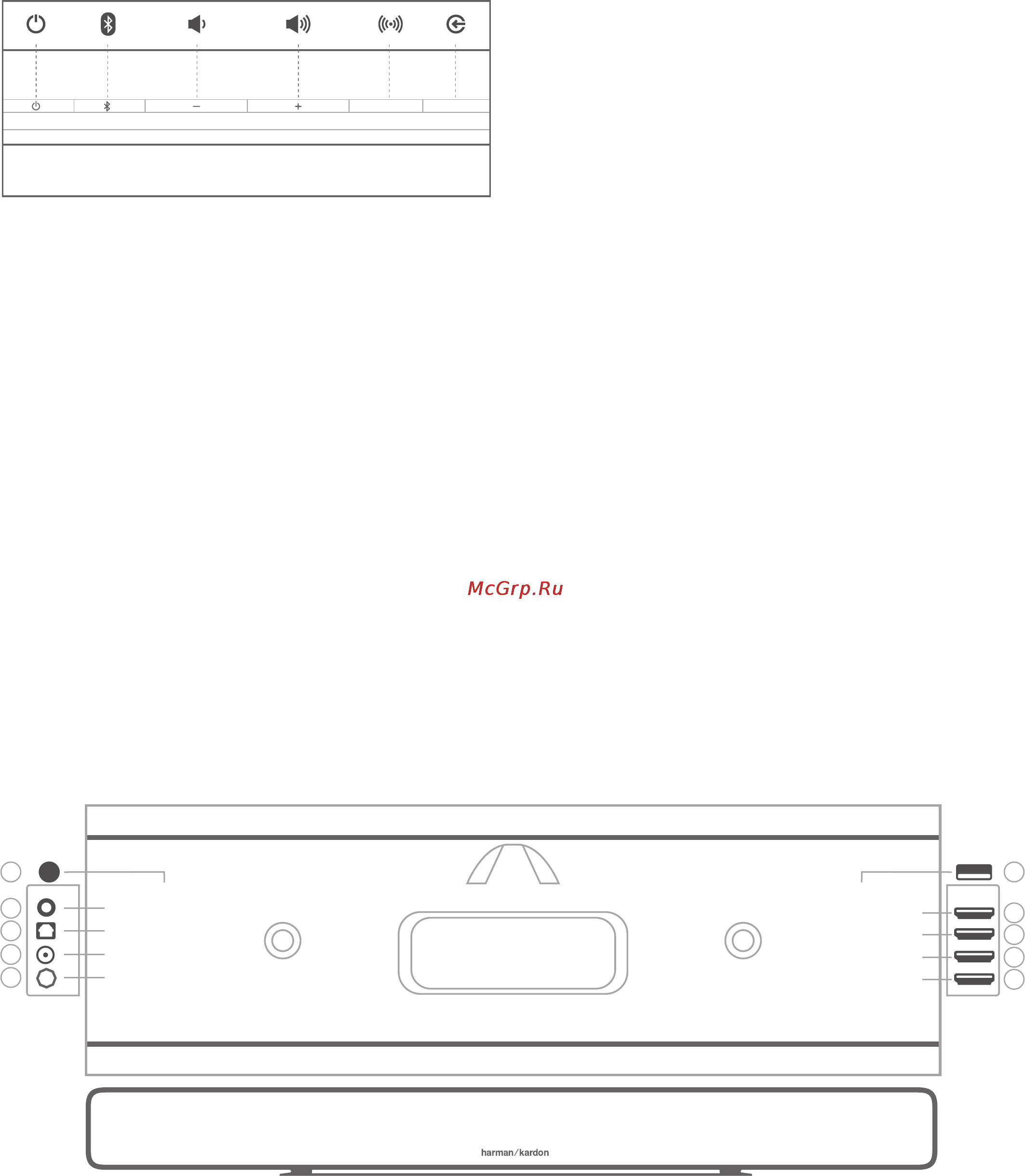

SABRE SB35 Rear Panel Controls and Connections
The rear panel of the SABRE SB35 soundbar includes the following:
1. Subwoofer pairing button
2. AUX input (analog audio in)
3. Optical (digital optical audio in)
4. Power input DC
5. IR transmitter (optional)
6. USB port (software update only)
7. HDMI 3 (HDMI input)
8. HDMI 2 (HDMI input)
9. HDMI 1 (HDMI input)
10. HDMI TV (support Audio Return Channel)
Subwoofer pairing button: Press the subwoofer pairing button to initiate pairing
between soundbar and the wireless subwoofer.
AUX input (analog audio in): Connect your system to other devices using an AUX cable.
7
9
8
10
61
2
4
3
5
AUX IN
OPTICAL
DC IN 24V 2.7A
IR TRANSMITTER
PAIRING
FW UPGRADE
HDMI 3
HDMI 2
HDMI 1
HDMI TV
