CONNECTION OF DRAIN HOSES

Insert the drain hose into a drain pipe with a minim urn diameter

of 4cm, or let it run in to the sink, making sure to avoid bending or

crimping it. Use the special plastic support that comes with the appli-

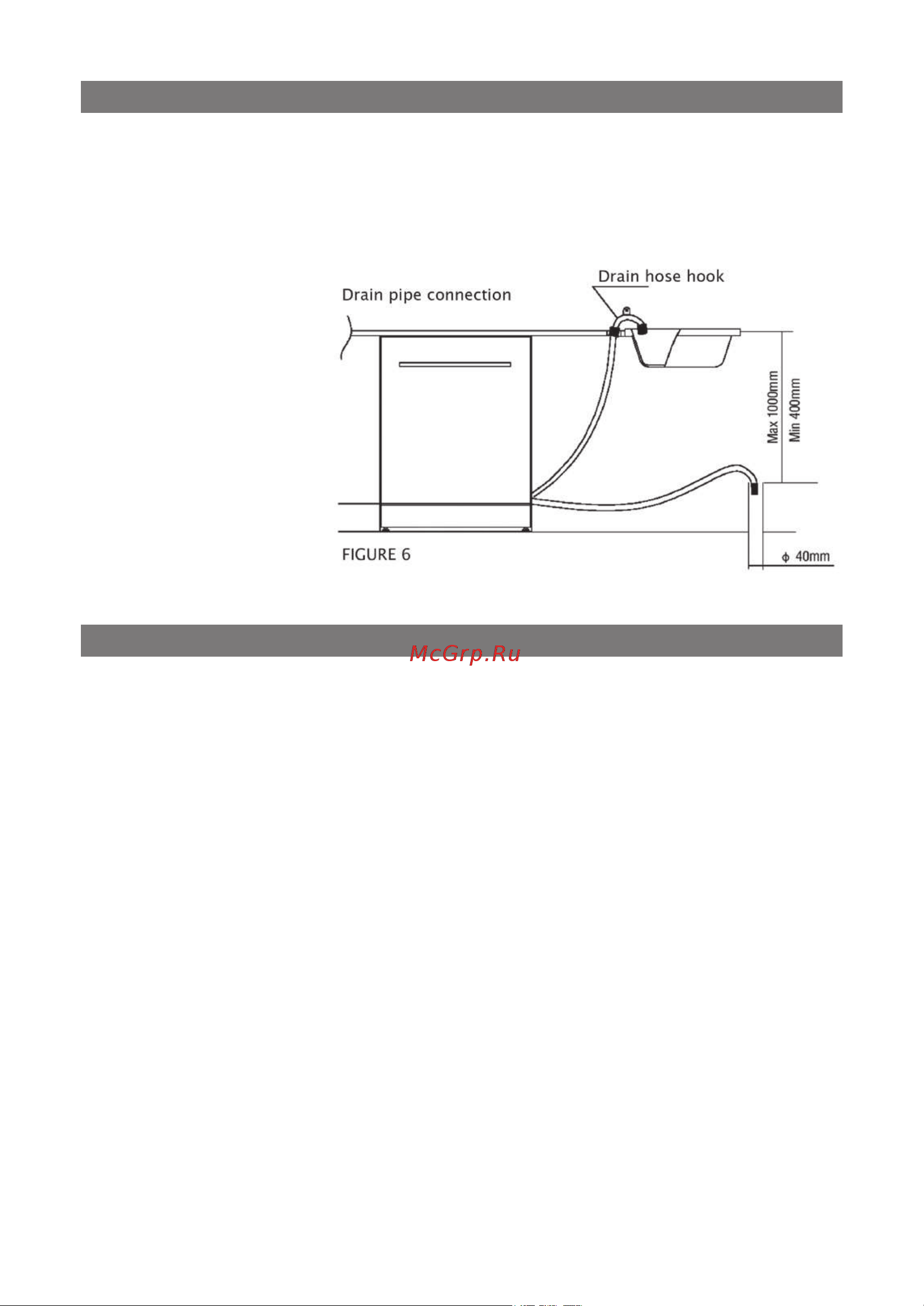

ance (ﬁgure 6). The free and of the hose must be at a height between

400 and 1000mm

and must not be

immersed in water

to avoid the back

ﬂow of it. ATTEN-

TION: The spe-

cial plastic hose

support must be

solidly fastened

to the wall to

prevent the drain

hose from mov-

ing and allowing

water to spill outside the drain.

1. Install the furniture door to the outer door of the dishwasher using

the brackets provided. Refer to the template for positioning of the

brackets.

2. Adjust the tension of the door springs by using an Allen key turn-

ing in a clockwise motion to tighten the left and right door springs.

Failure to do this could cause damage to your dishwasher (Illustra-

tion 2).

3. Connect the inlet hose to the cold water supply.

4. Connect the drain hose. Refer to diagram. (Figure 6)

5. Connect the power cord.

6. Put the dishwasher to slide rails (lllustration4).

7. Add the condensation strip following instructions on the reverse

side of the condensation strip.

8. Place the dishwasher into position.

Level the dishwasher. The rear feet can be adjusted from the front of

the dishwasher by turning the screws on the left and right hand side

of the cabinet (Illustration 6A). To adjust the front feet, use a wrench

and turn the front feet until the dishwasher is level (Illustration 6B).

10.The dishwasher must be secured in place. There are two ways to

do this:

DISHWASHER INSTALLATION STEPS
