-4-

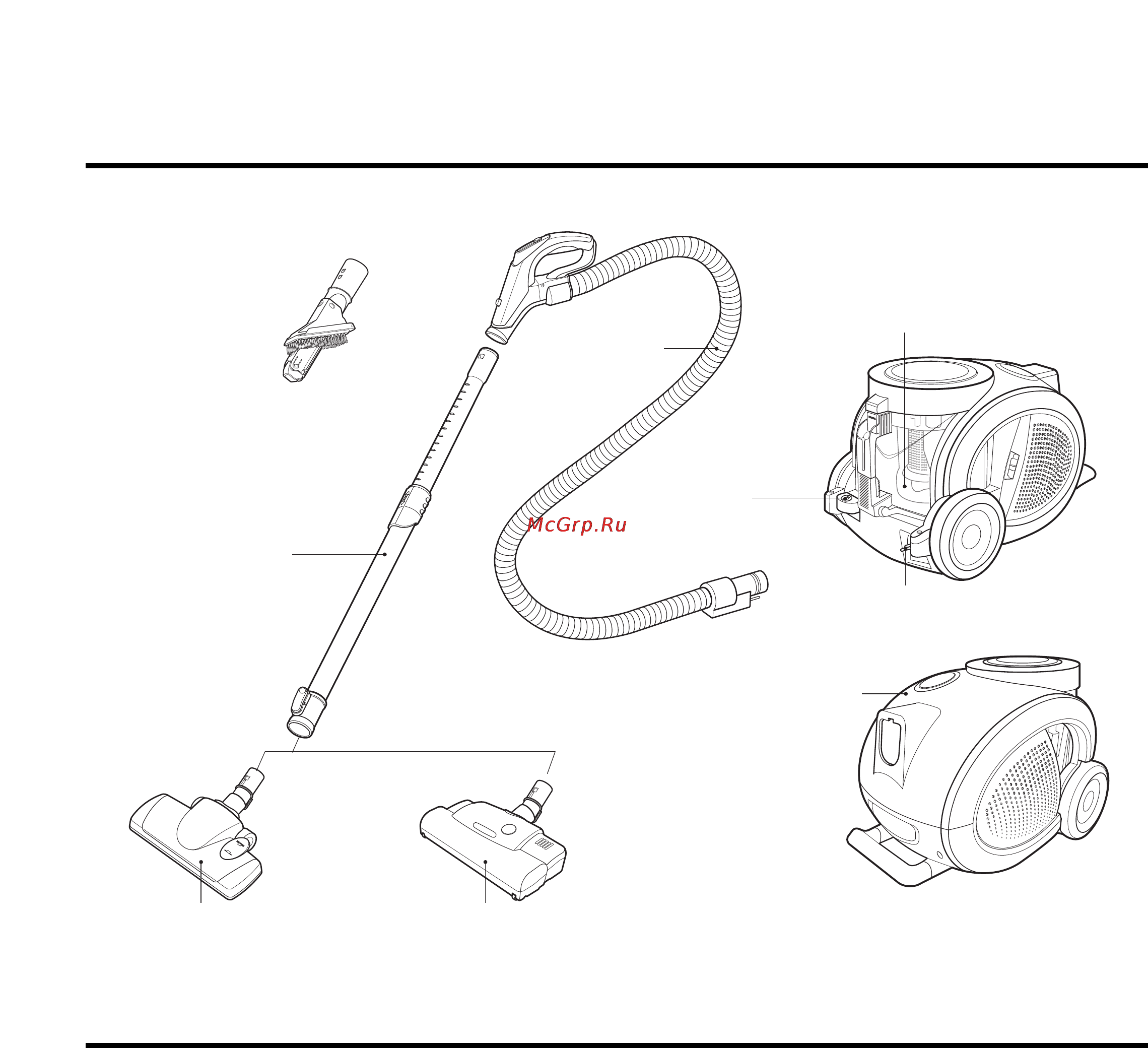

DESCRIPTION
Cord Reel
Button
Dust Tank
Body Cover
Power Cord
Flexible Hose
Assembly
Telesscopic
Pipe Assembly
Brush Assembly,Dust
Carpet and Floor Nozzle
Carpet Master
SPECIFICATIONS
• MODEL : REFER TO THE COVER PAGE
• POWER SOURCE : ON RATING PLATE
• POWER CONSUMPTION : ON RATING PLATE
• POWER CONTROL :
- MAIN : SLIDE KNOB CONTROL (F/HOSE)
• CORD LENGTH : 10 m
• HOSE LENGTH : 1.5 m
• NET WEIGHT : 6.4 kg
• PACKING WEIGHT : 10.5 kg
• NET DIMENSION : 280 X 440 X 286 (W X D X H)mm
•
PACKING DIMENSION
: 330 X 615 X 330 (W X D X H)mm
• ATTACHMENTS
HOSE .................................................................................. 1EA
TELESCOPIC PIPE ASSEMBLY ..................................... 1EA
NOZZLE ASSEMBLY ........................................................ 1EA
BRUSH ASSEMBLY, DUST ............................................. 1EA
TURBIN NOZZLE ASSEMBLY......................................... 1EA
• This specifications are subject to change according to the buyer's request.
Содержание
- Before servicing the unit read the safety precautions in this manual 1
- Caution 1
- Model v k8701htu 1
- Vacuum cleaner service manual 1
- Contents 2
- Air exhausted from the vacuum cleaner is normally warm but if extraordinarily hot air is exhausted check if the telescopic tube hose or clean filter is clogged or not 3
- Attachments 3
- Avoid suction such materials as 3
- Before attempting to service or adjust any part of the vacuum cleaner disconnect the electrical power supply cord from the wall outlet 3
- Before operating this vacuum cleaner read this service manual thoroughly and observe each point carefully 3
- Cautions 3
- Close supervision is necessary when this vacuum cleaner is used by or near children children s carelessness may cause damage to the cleaner or injure persons 3
- Electric shock could occur if used outdoors or on wet surfaces 3
- Exhaust filter washable hepa filter 3
- In case of exchanging other parts refer to the exploded view 3
- Motor exchange 3
- Motor filter air cleaner 3
- Safety precautions 3
- Carpet master 4
- Description 4
- Specifications 4
- Body cover assembly replacement 5
- Disassembly 5
- Motor assembly replacement 5
- Checking cause solution 7
- Switch on but motor dose not turn 7
- Switch on motor does not turn but buzzes 7
- Trouble shooting guide 7
- Switch off but motor turns 8
- Weak suction power 8
- Improper tube of nozzle connection 9
- Radio tv reception disturbance 9
- Vibration noises 9
- Main pwb asm sub pwb asm 10
- Schematic diagram 10
- Circuit diagram 11
- Hms8 1 7 c1102a 11
- Base assembly body 12
- Exploded view 12
- V k8701htu v k8701htu axrqbwt 12
- Cover assembly body 13
- Tank assembly dust 14
- Accessories 15
- Replacement parts list 16
