LG V-K8701HTU [5/18] Disassembly

-5-

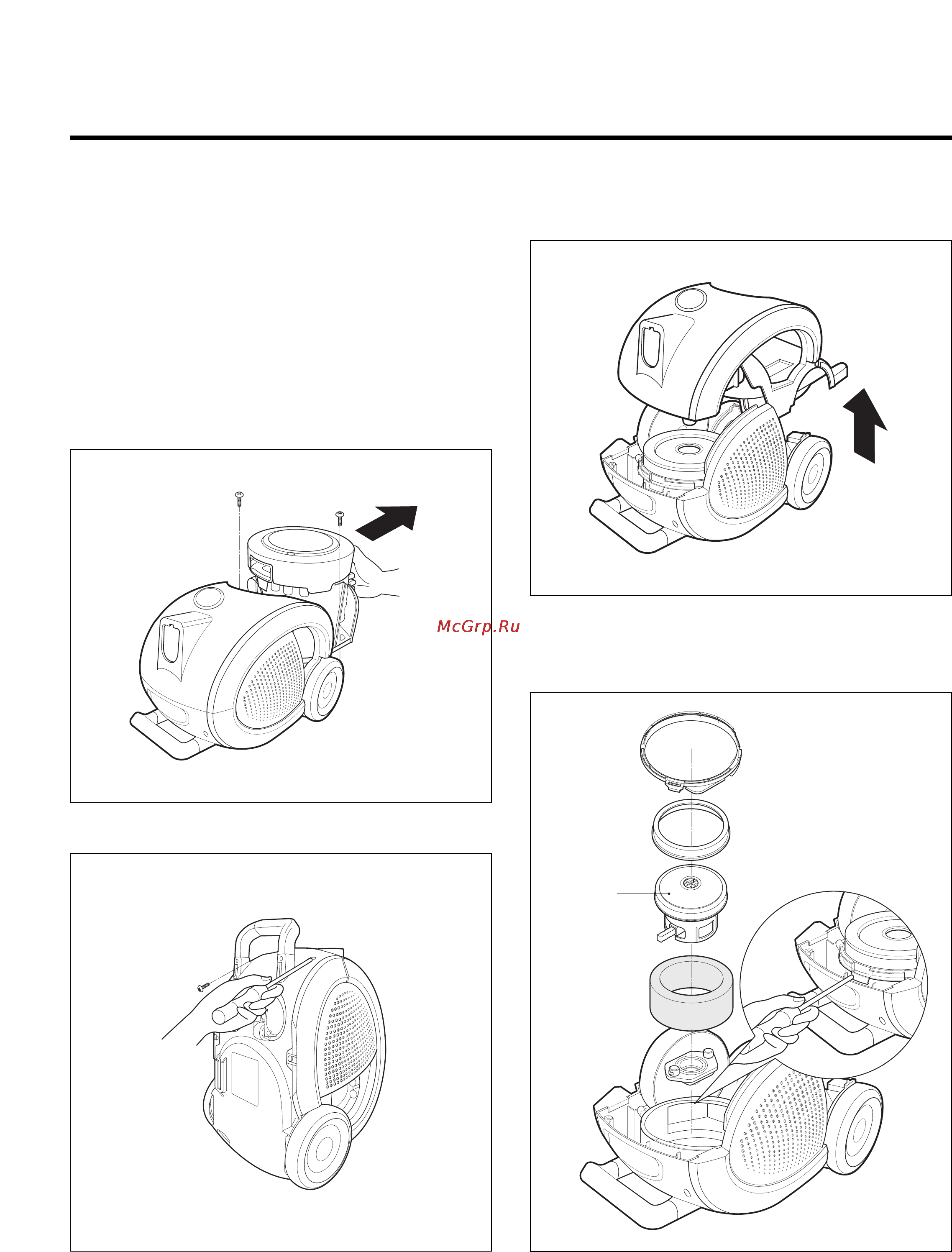

DISASSEMBLY

• Almost all of the parts of this vacuum cleaner can be

disassembled with a screw driver and each connecting

component easily fits each other.

Disassemble one by one referring to the exploded view.

• If possible, don't disassemble except for the necessary

parts. It is not necessary to disassemble the parts that

are not detailed in the exploded view.

1. Body Cover Assembly Replacement

1) Remove the dust tank from the set.

Remove the two screws fastening the sub cover.

2) Remove the four screws fastening the body base.

3) Disassemble the body cover, raising the body cover.

2. Motor Assembly Replacement

1) Unhook the four hook.

2) Pull out the motor and disconnect the lead wires from it.

Motor

NOTE: Before attempting to service or adjust any part of the vacuum cleaner, disconnect the electrical power supply cord

from the wall outlet.
