10
GB

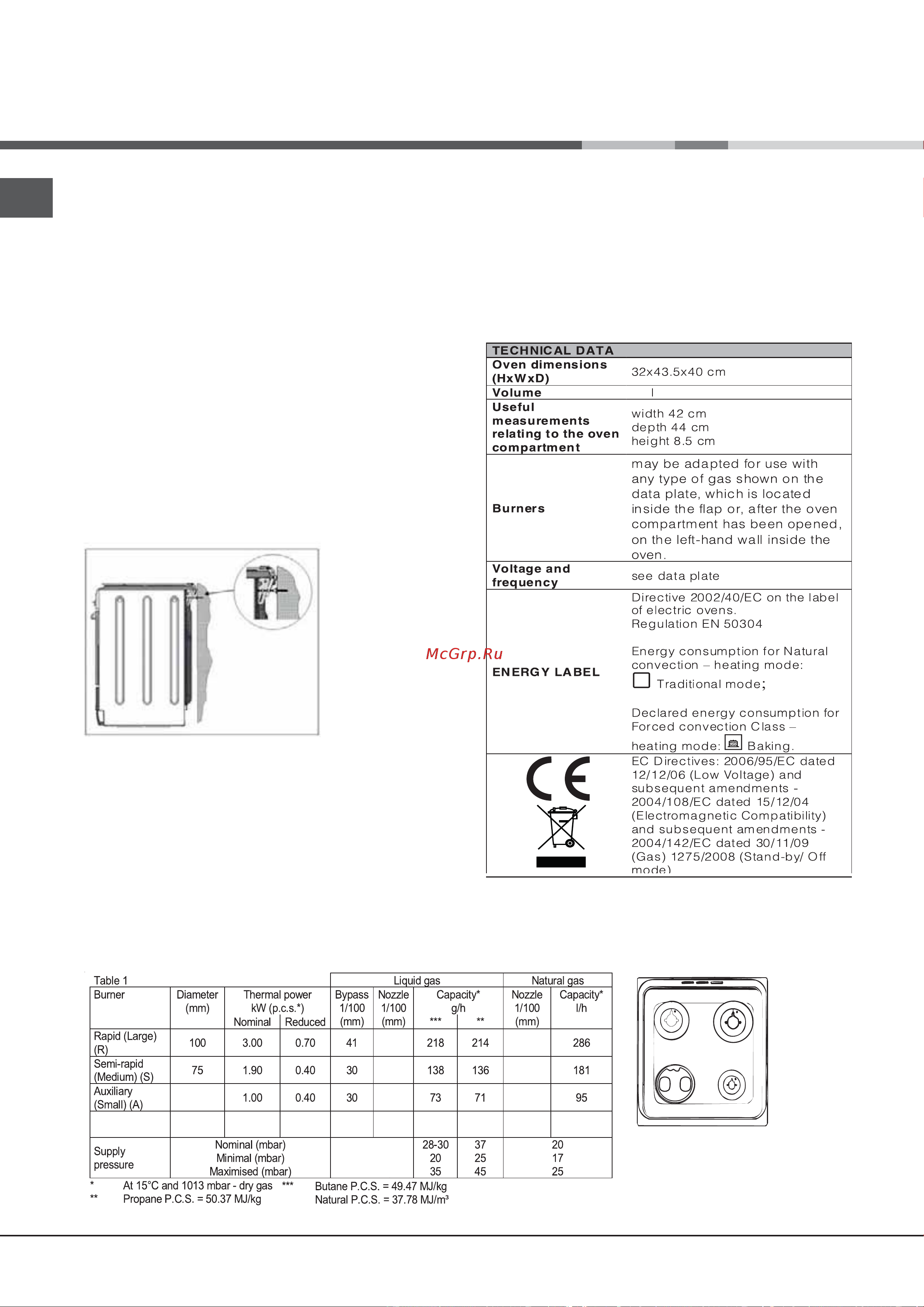

Table of burner and nozzle specifications
of the knob from minimum to maximum and vice versa
several times, checking that the flame does not go out.
4. Some appliances have a safety device (thermocouple)
fitted. If the device fails to work when the burners are
set to the low flame setting, increase this low flame
setting using the adjusting screw.
5. Once the adjustment has been made, replace the seals
on the by-passes using sealing wax
! If the appliance is connected to liquid gas, the regulation
screw must be fastened as tightly as possible.
! Once this procedure is finished, replace the old rating
sticker with one indicating the new type of gas used.
Stickers are available from any of our Service Centres.
! Should the gas pressure used be different (or vary
slightly) from the recommended pressure, a suitable
pressure regulator must be fitted to the inlet pipe (in order
to comply with current national regulations).
Safety Chain
! In order to prevent
accidental tipping
of the appliance,
for example by a
child climbing onto
the oven door, the
supplied safety
chain MUST be
installed!
The cooker is fitted
with a safety chain
to be fixed by means of a screw (not supplied with the
cooker) to the wall behind the appliance, at the same
height as the chain is attached to the appliance.
Choose the screw and the screw anchor according to
the type of material of the wall behind the appliance. If
the head of the screw has a diameter smaller than 9mm,
a washer should be used. Concrete wall requires the
screw of at least 8mm of diameter, and 60mm of length.
Ensure that the chain is fixed to the rear wall of the cooker
and to the wall, as shown in figure, so that after installation
it is tensioned and parallel to the ground level.
87
69
50
128
104
78
51
Tripple Ring (TC)
236 232 2x99 309
130
3.25 1.50 2x65
63
H6TMH4AF RU
S
R
TC A
57
