Indesit K 6C7 M.C_R [4/40] Installation

The following instructions should be read by a qualified

technician to ensure that the appliance is installed,

regulated and technically serviced correctly in compliance

with current regulations.

Important: disconnect the cooker from the electricity when

making any adjustement, maintenance operation, etc.

Positioning

The cooker is prepared with protection degree against

excessive heating of type X, the appliance can therefore

be installed next to cabinets, provided the height does not

exceed that of the hob

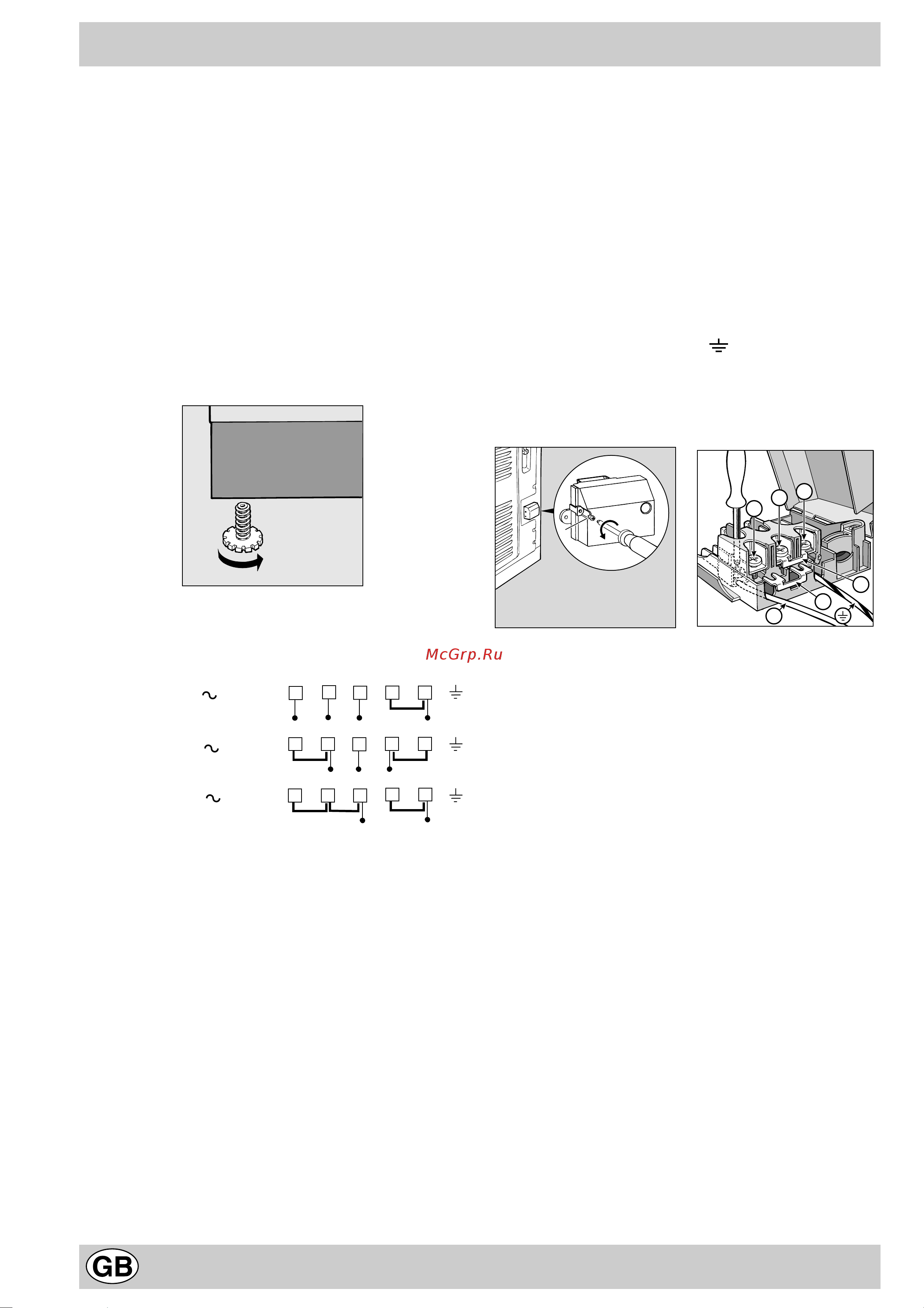

Levelling

In order to have a perfect levelling of the cooker adjustable

feets are supplyed (see Fig.1). They can be screwed in

the seats positioned in the corners of the cooker base.

Electrical connection

The power supply cable since its size depends on the

electric connection (see the following connection diagram).

1 2

12345

400 3N

H05RR-F 5x2.5 CEI-UNEL 35363

400V 2N

H05RR-F 4x2.5 CEI-UNEL 35363

230V 1N

H07RN-F 3x4 CEI-UNEL 35364

Installation

Feeding cable installation

Terminal block opening:

· Unscrew screw “V”

· Pull and open the junction block lid

For the installation of the feeding cable carry out the

following operations:

· position the small connection A-B according to the type

of connection that has to be performed using the

scheme shown in the figure 3.

Note: the small connections are prepared by the Factory

for the 230V monophase connection (contacts 1-2-3 are

connected to one another). The bridge 4-5 is situated in

the lower part of the terminal block.

· introduce the cables (N and ) as shown in the figu-

re and tighten the relative screws.

· fix the remaining cables on the 1-2-3 clips.

· fix the feeding cable in the special cable stop and close

the cover fastening it with the screw “V”.

Connecting the supply cable to the mains

Fit a plug, normalised for the load indicated on the data

plate, on the cable; when making the connection directly

to the mains, an omnipoIar switch with a minimum opening

of 3 mm between the contacts, must be installed between

the appliance and the mains. This switch must be sufficient

for the load and must comply to regulations in force (the

earthing wire must not be interrupted by the switch). The

power supply cable must be positioned so that it does not

exceed 50°C more than room temperature at any point of

its length. Before making the connection check that:

· the limiter valve and the home system can support the

appliance load (see data plate);

· the power supply system has an efficient earthing

connection which complies with the provisions of

current regulations;

· the socket or omnipoar circuit-breaker is easily

accessible once the cooker has been installed.
