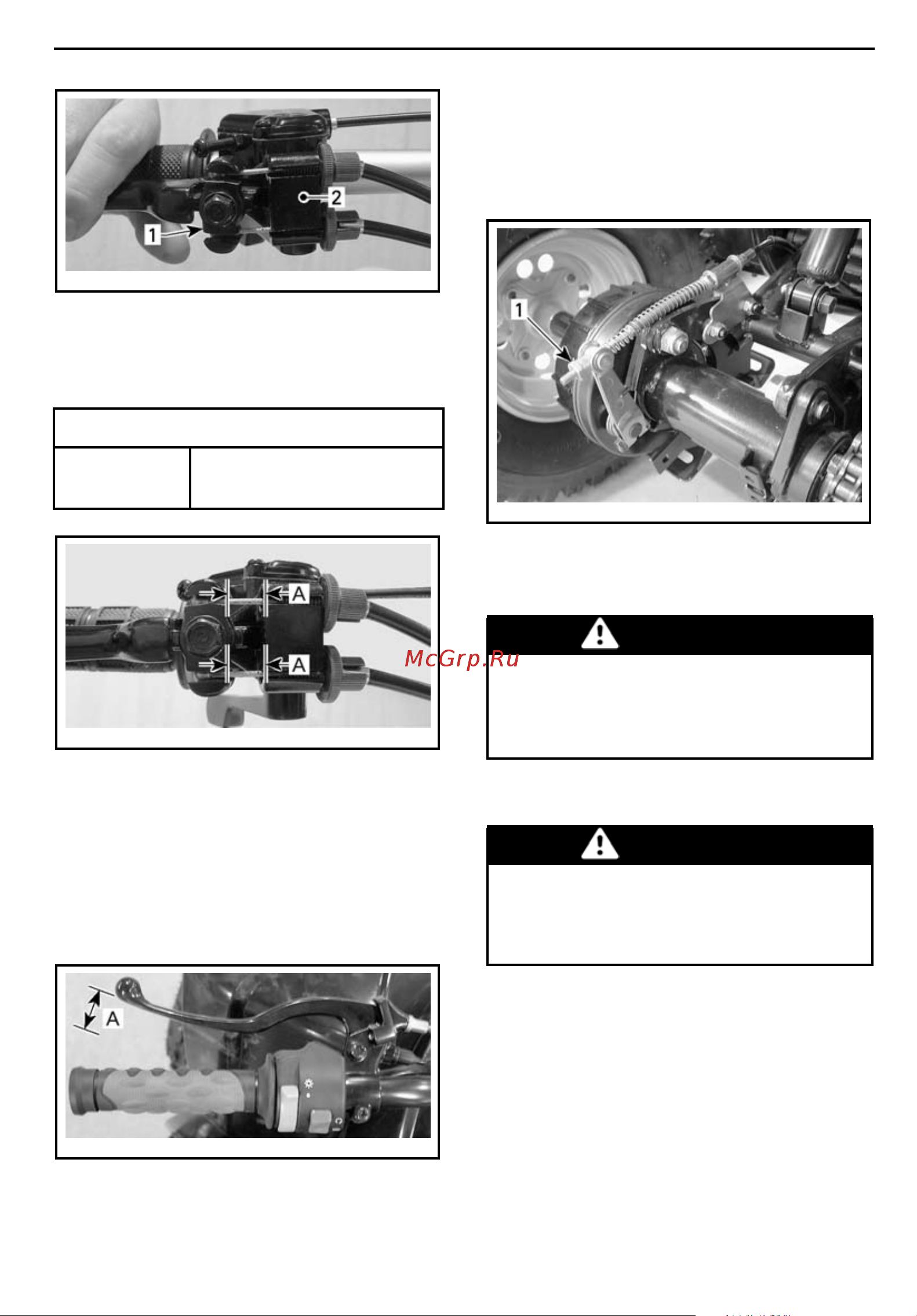

MAINTENANCE PROCEDURES
vmr2008-106-011_a
1. Cable link
2. Cable support
Using adjustment screws on lever, ad-
just cable free-play.
BRAKE CABLE ADJUSTMENT
FREE-PLAY
10 mm to 12 mm
(.4 in to .5 in)
vmr2008-106-012_a
A. 10 mm to 12 mm (.4 in to .5in)
Tighten all adjustment screw locks.
Rear Brake Lever Adjustment
The normal free-play measured
at the end of the brake lever is
15 mm to 25 mm (.6 in to 1 in).
vmo2008-008-050_a
NORMAL FREE-PLAY
A. 15mm to 25 mm (.6 in to 1 in)
To adjust rear brake lever, turn the
brake cable adjusterat the end of brake
cable until proper adjustment is ob-
tained.
vmo2008-008-049_a
1. Brake cable adjuster
HydraulicBrakes(DS 90 X)
WARNING
New brakes will not perform to
their maximum efficiency until
after their initial break-in is com-
plete. Use extra caution.
Hydraulic Brake Inspection
WARNING
Brake fluid replacement or bra
ke
system maintenance and repairs
should be performed by an autho-
rized Can-Am dealer.
The braking system is a hydraulic type
andnoadjustmentisrequ
ired.
Check the following to maintain the
brake system in a good ope
rating con-
dition:
– Brake fluid level
– Brake system for fluid leaks
– Brake for spongy feel
______________
101
