Motorola ST 7760 [11/117] Package content options

Getting Started

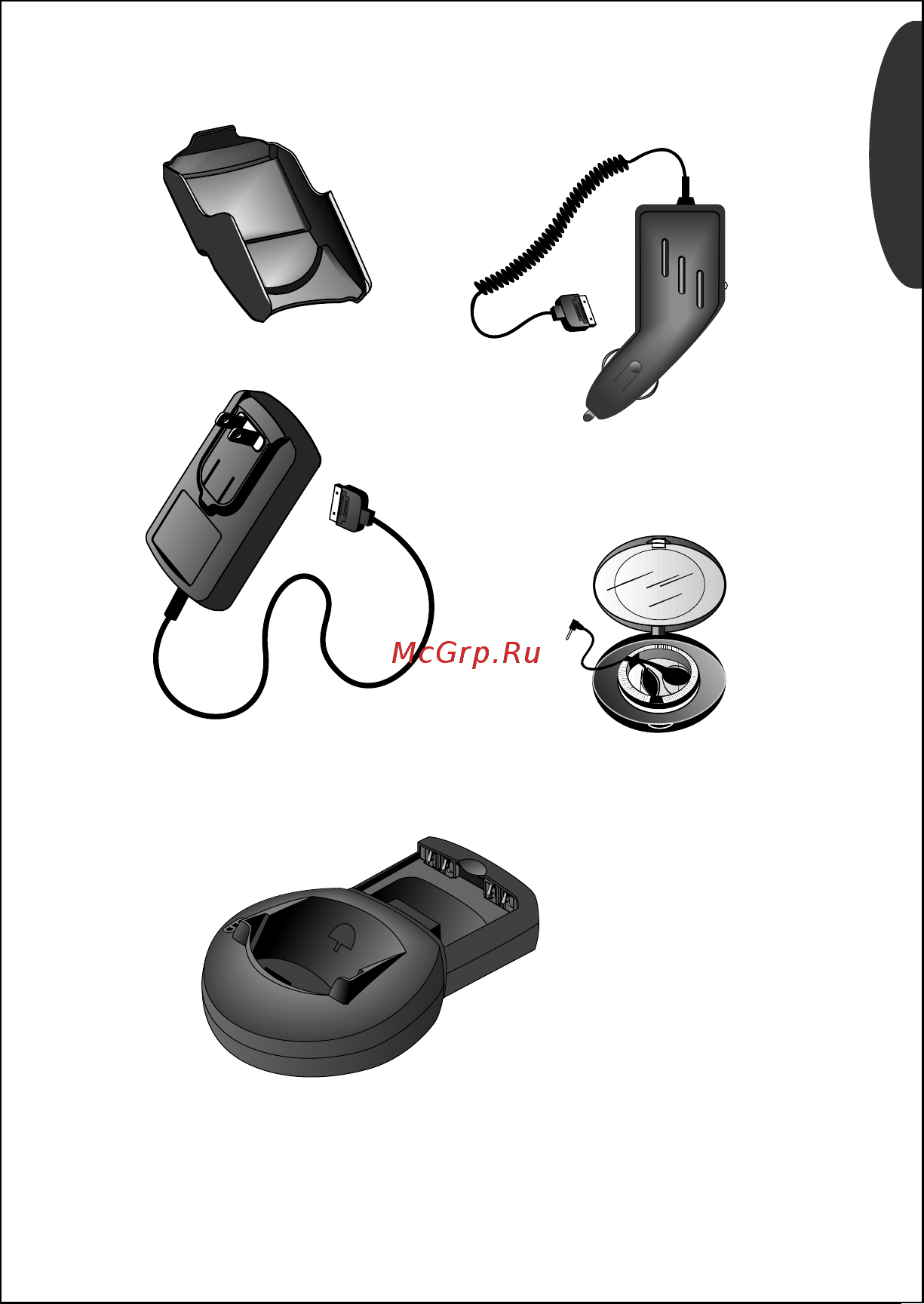

Package Content Options

Your phone and accessories may not look exactly as pictured above.

Holster

Cigarette Lighter Adapter

AC Adapter

Headset

Desktop Charger
