Centek CT-8540 [30/56] The rc may not work properly if the tv is operated in a brightly lit room

3. There should be no other objects on or near the wall when mounting the TV.

4. The TV should be mounted to the wall by a skilled technician.

5. Observe the assembly instruction when mounting the TV.

6. The pictures are shown for reference.

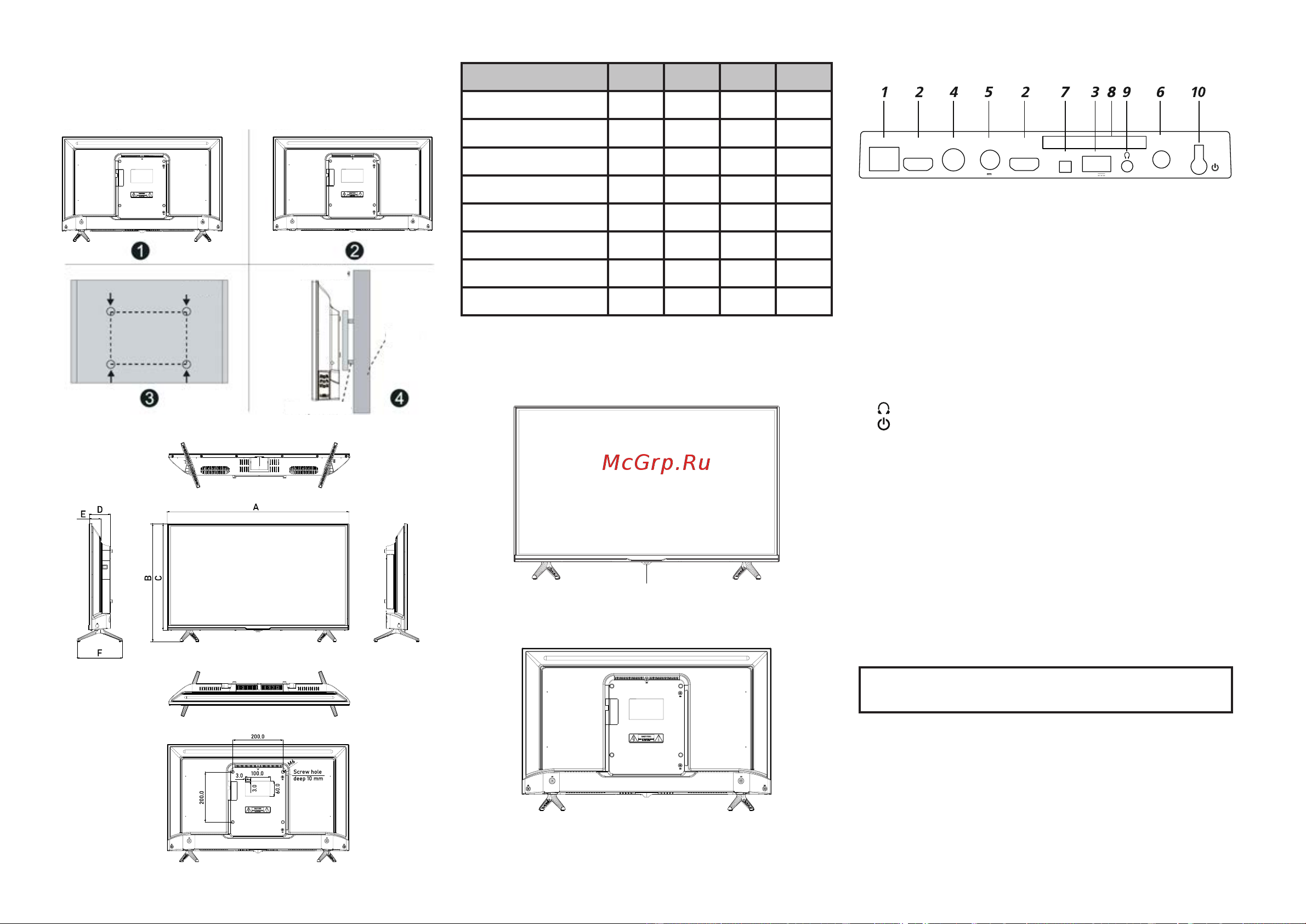

Wall mount

Wall

Anchor bolt

Model CT-8532 CT-8540 CT-8543 CT-8550

Size without stand (mm) 724х425 898х515 963х561 1117х648

Size with stand (mm) 724х471 898х562 963х611 1117х708

A (mm) 724 898 963 1117

B (mm) 471 562 611 708

C (mm) 425 515 561 648

D (mm) 84 83 82 89

E (mm) 47 47 47 46

F (mm) 181 183 226 274

4. STARTING OPERTION

Front panel of the TV

Please carefully read the relevant sections “Important Notices and Warnings” and

“Safety Precautions” before operating the appliance.

Remote control sensor / Power indicator

Back panel of the TV

Side panel of the TV

HDMI2

ANT1

DIGITAL

AUDIO OUT

13/18 V 400 mA

ANT2

(SATELLITE)

USB2.0

(5V 500mA)

HDMI1(ARC)

LAN

COMMON

INTERFACE

LAN – LAN RJ-45 local area network connection port. Use a LAN cable with

RJ-45 connector (not included).

2. HDMI – HDMI port allowing the connection of an external speaker system via

the audio return channel (ARC) HDMI. HDMI1 — with ARC function.

USB – port for connecting USB 2.0 type devices (operates in “Media player”

mode).

4. ANT1 – antenna connection port (75 Ohm).

5. ANT2 (SATELLITE) – satellite antenna connection port.

6. DIGITAL AUDIO OUT – coaxial digital audio outlet.

AV – TV inlet connections for left/right audio channels from different sources

with a composite intake signal connected, uses a miniAV connector (3.5 mm

- 3хRCA connector required).

8. COMMON INTERFACE – slot for CAM module connection.

– headphone connection port.

10.

– Power ON/OFF button.

NOTE: the inlet/outlet connection options may differ depending on the specific

model.

STARTING OPERATION

Using the Remote Control

Pint the RC unit towards the RC sensor located on the TV. The RC may not work

if is some object located between it and the RC sensor on the TV.

- The RC may not work properly if the TV is operated in a brightly lit room.

The maximum effective range for proper operation of the RC unit is

approximately 7 meters.

Replacing RC Batteries

Replace depleted batteries without delay. Install the batteries according to

instructions to ensure proper operation of the RC unit.

ATTENTION! Incorrectly installed batteries can cause an explosion. Replace

the batteries with batteries of the same or equivalent type.

Installing the Batteries into the RC Unit

1. Open the cover on the back side of the RC unit.

Insert two ААА type batteries. Ensure that the “+” and “-“ markings on the

battery ends are aligned with the markings inside the battery compartment.

3. Close the battery cover.
