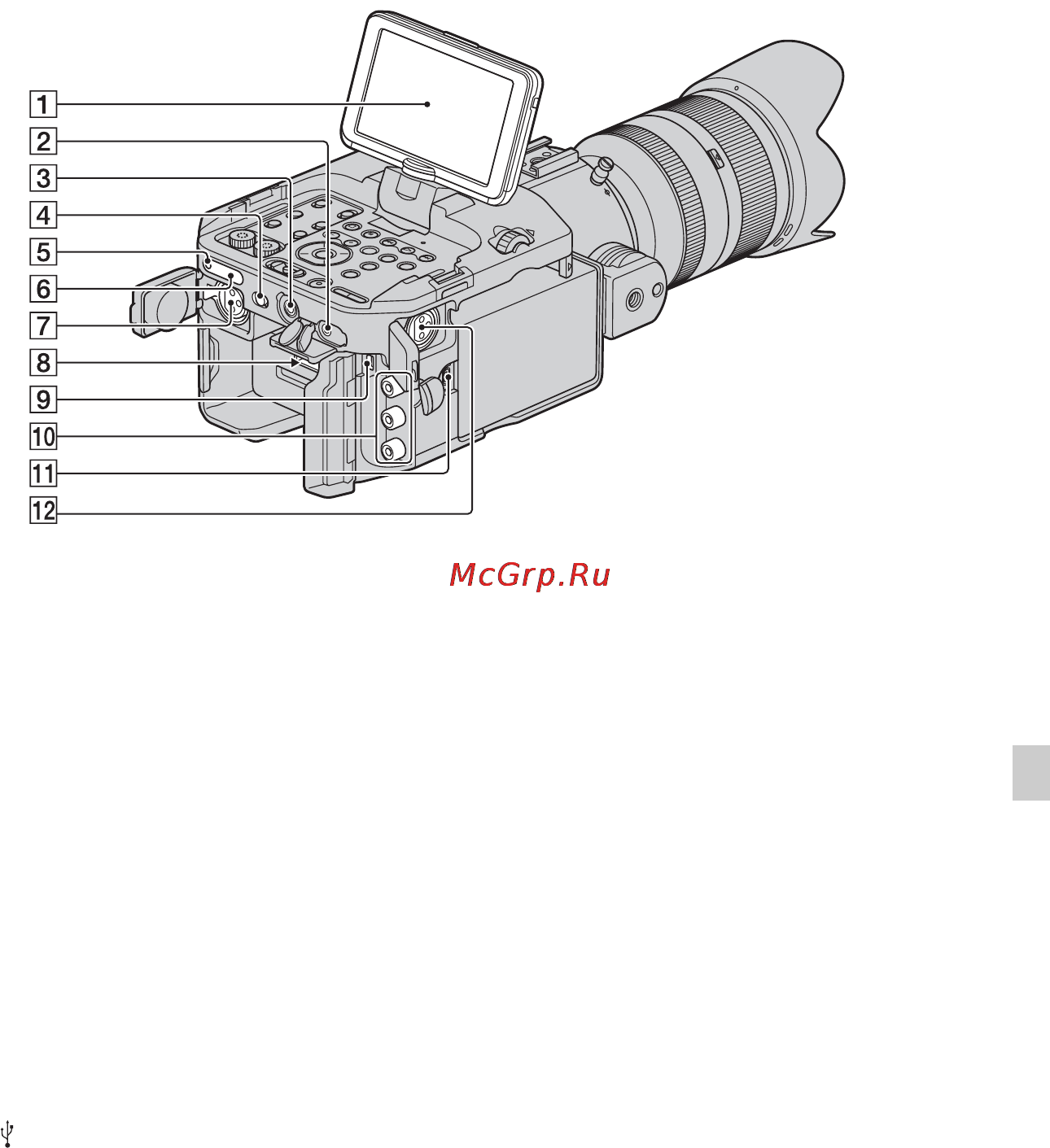

Quick Reference

A LCD screen/touch panel (14)

B REMOTE jack

The REMOTE jack is used for controlling

playback, etc. on the video device and

peripherals connected to it.

C i (headphones) jack

For connecting stereo mini-jack headphones.

D HEADPHONE MONITOR switch (37)

E Rear recording lamp (82)

The recording lamp flashes if the remaining

capacity of recording media or battery is low.

F Remote sensor (82)

G INPUT 2 jack (11)

H HDMI OUT jack (56)

I COMPONENT OUT jack (56)

J VIDEO OUT/AUDIO OUT jacks (56)

K (USB) jack (85, 87)

L INPUT 1 jack (11)

Continued ,
