Sony NEX-FS100EK [25/124] When you do not use a flash memory unit

Getting Started

When you do not use a flash memory

unit

Leave the flash memory unit jack cover

attached.

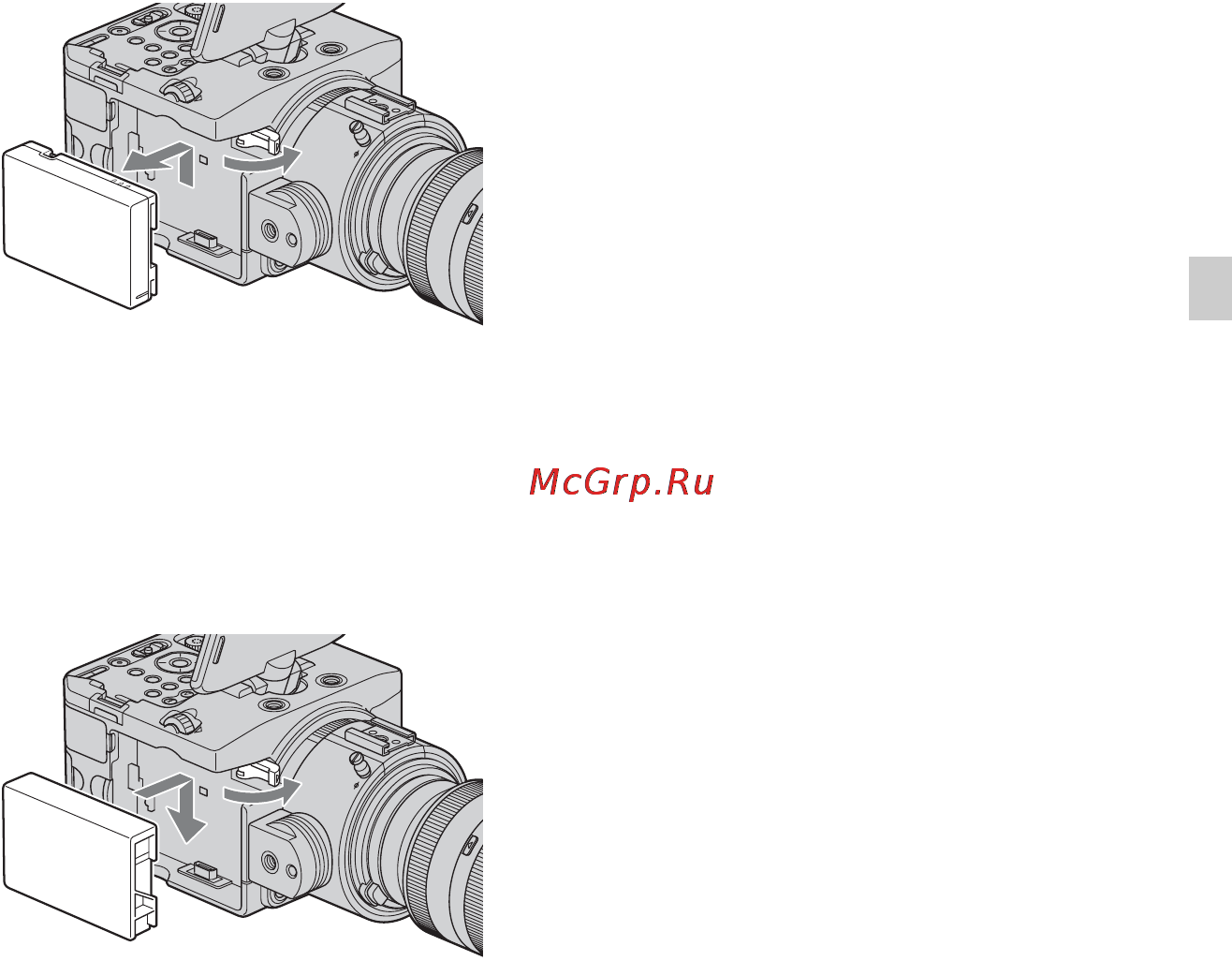

While sliding the RELEASE lever in the

direction of the arrow, attach the flash

memory unit jack cover.

z Tips

• Your camcorder does not have the relay

recording function. If the memory card is fully

recorded during recording, the camcorder stops

recording automatically.

• You can record movies on both of the memory

card and the flash memory unit simultaneously

(p. 27).
