Recording/Playback

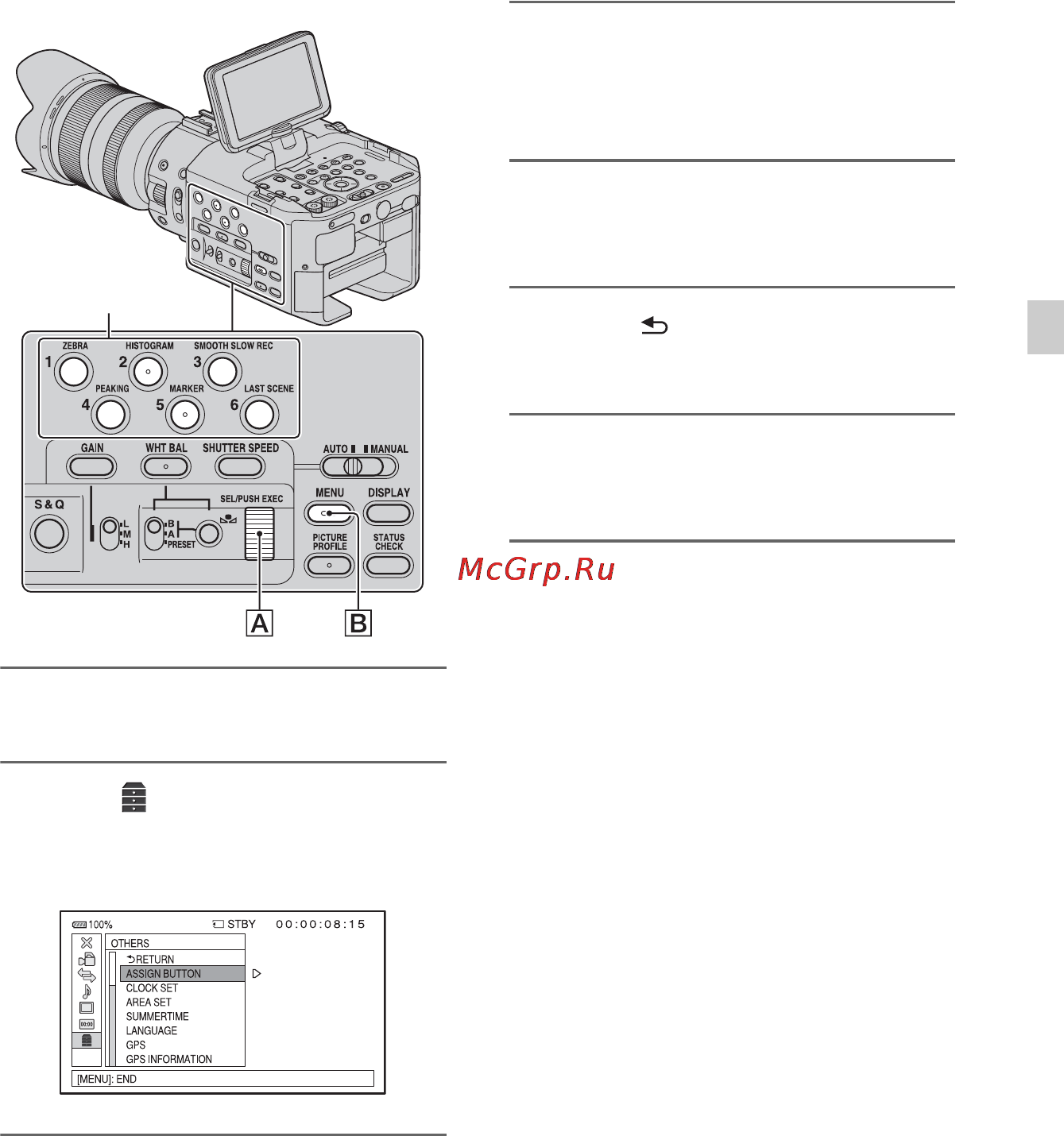

1 Press the MENU button B.

2 Select (OTHERS) t [ASSIGN

BUTTON] with the SEL/PUSH

EXEC dial A.

3 Select the ASSIGN button to

which you want to assign a

function with the SEL/PUSH

EXEC dial A.

• [--------] appears if no function is assigned

to the ASSIGN button.

4 Select the function that you want

to assign with the SEL/PUSH

EXEC dial A.

5 Select [OK] with the SEL/PUSH

EXEC dial A.

6 Select [ RETURN] with the SEL/

PUSH EXEC dial A.

7 Press the MENU button B to hide

the menu screen.

ASSIGN buttons
