1. Introduction

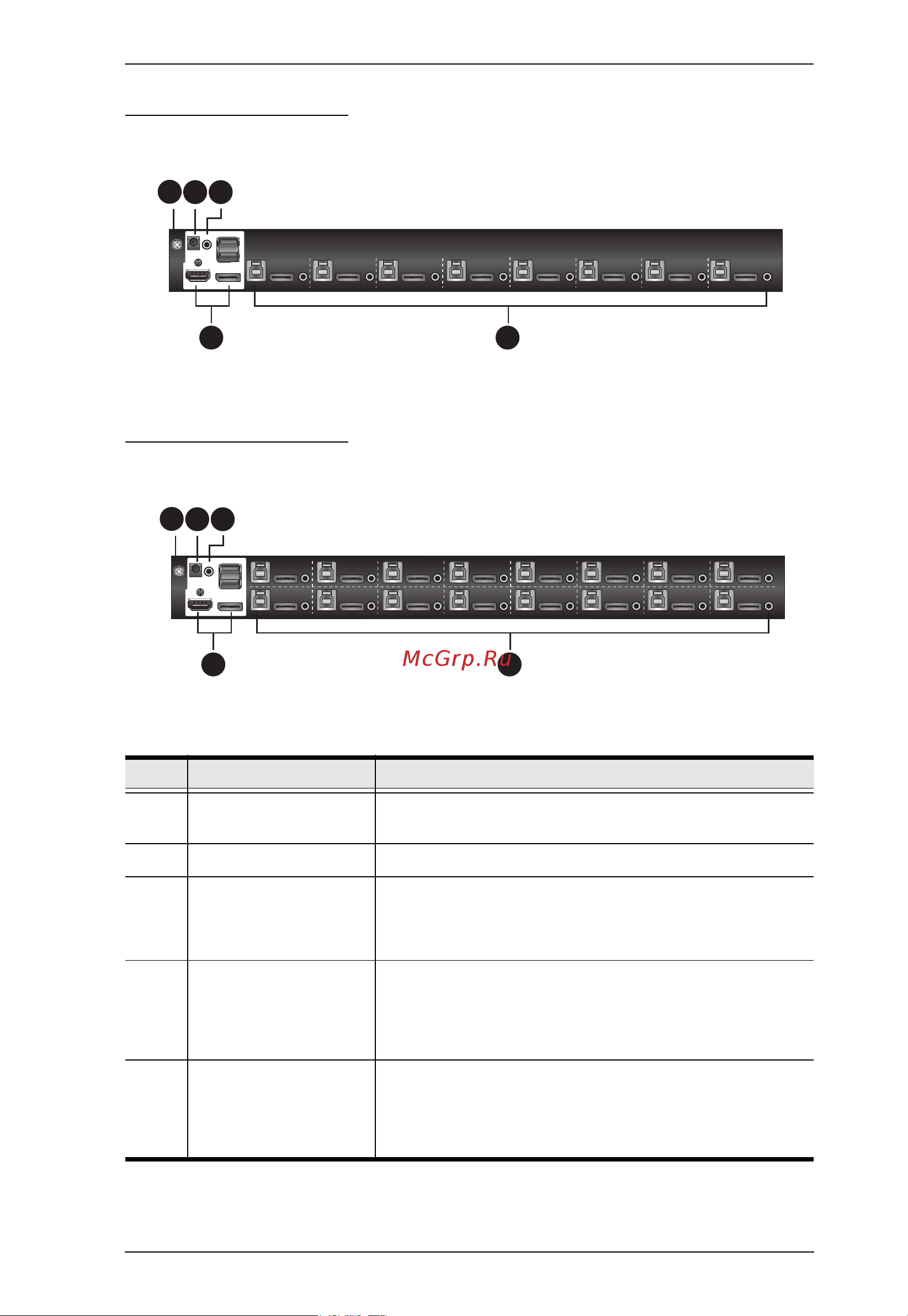

Rear View CS19208

Rear View CS19216

No. Component Description

1 grounding terminal The grounding wire used to ground the switch attaches

here.

2 power jack The power adapter cable plugs in here.

3 audio jack The cables from your main speakers plug in here.

Note: The speakers plugged into the front panel have

priority over those plugged here.

4 console port section The cables from your console DisplayPort monitor,

HDMI monitor, USB keyboard, USB mouse, and

speakers plug in here. Each connector is marked with

an appropriate icon to indicate itself.

5 KVM port sections The cables that link the switch to your computers plug

in here. Each KVM port section is comprised of a

speaker jack, a USB type B socket, and DisplayPort

connector.

4 5
