ATEN Secure KVM User Manual
11

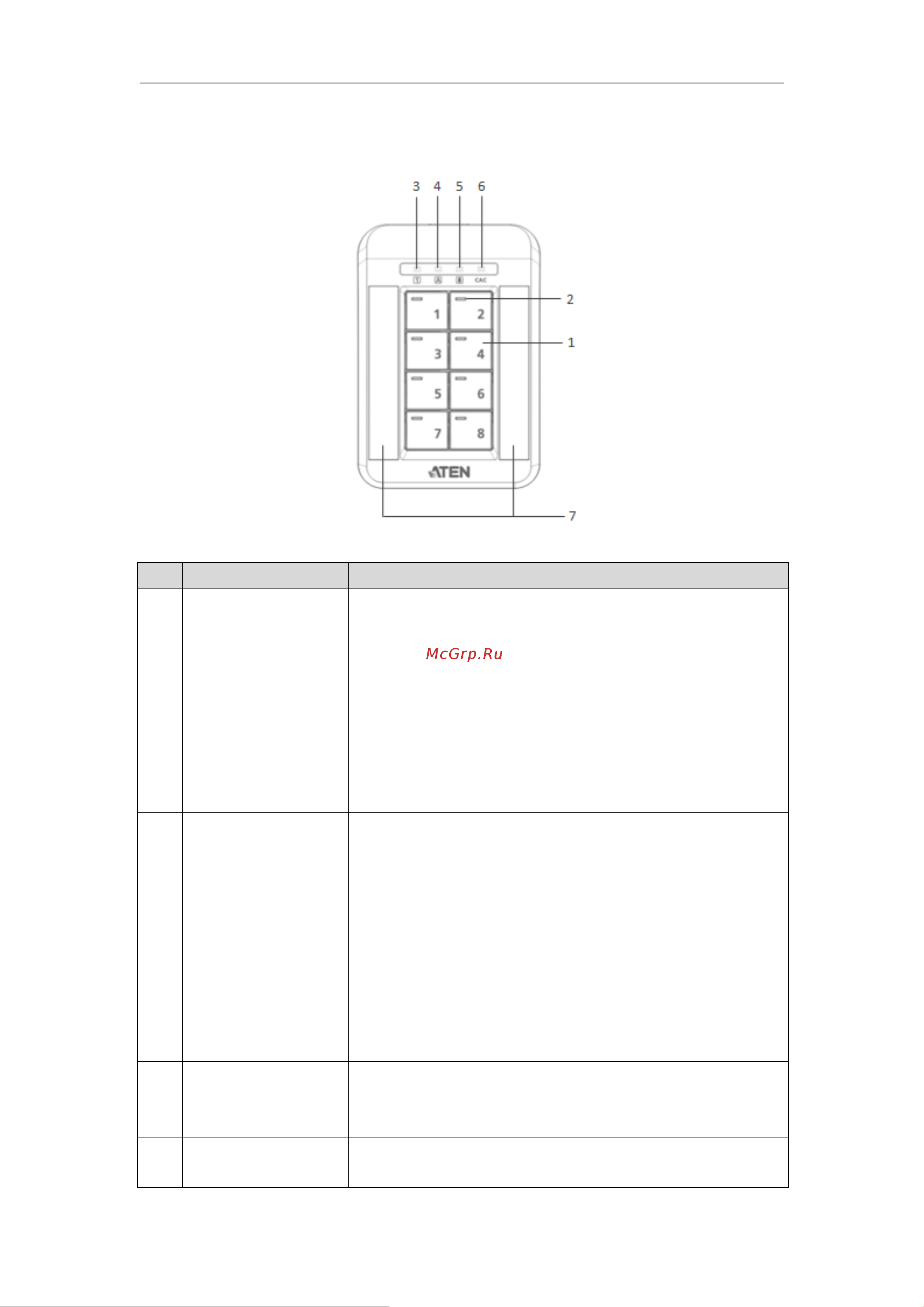

Front View (of ATEN Remote Port Selector)
No.
Component
Description
1
Port Selection
Pushbuttons
Pressing a Port Selection Pushbutton brings together the keyboard,
mouse, video, audio, and CAC reader focus to the computer attached
to its corresponding port.
Note:
When attached to a 2-Port Secure KVM Switch, only pushbuttons
numbered 1 and 2 will be detected and functional. When attached to a
4-Port Secure KVM Switch, only pushbuttons numbered 1, 2, 3, and 4
will be detected and functional. When attached to an 8-Port Secure
KVM Switch, all eight pushbuttons will be detected and functional.
2
Port LEDs
The Port LEDs are located on the upper-left side (of each pushbutton)
to indicate Port selection and connection status.
Port LEDs (Orange LEDs)
� Online – Lights dim orange to indicate that the computer attached to
its corresponding port is connected and powered on.
� Selected – Lights bright orange to indicate that the computer
attached to its corresponding port has the KVM focus.
� Warning - Flashes to indicate that a non-qualified USB HID device is
connected to console USB keyboard port or mouse port when the
corresponding port has the focus.
3
Num Lock LED
Lights green to indicate the Num Lock function has been turned on.
Note: The Num Lock LED on the keyboard will be disabled due to
security requirements.
4
Caps Lock LED
Lights green to indicate the Caps Lock function has been turned on.
Note: The Caps Lock LED on the keyboard will be disabled due to
