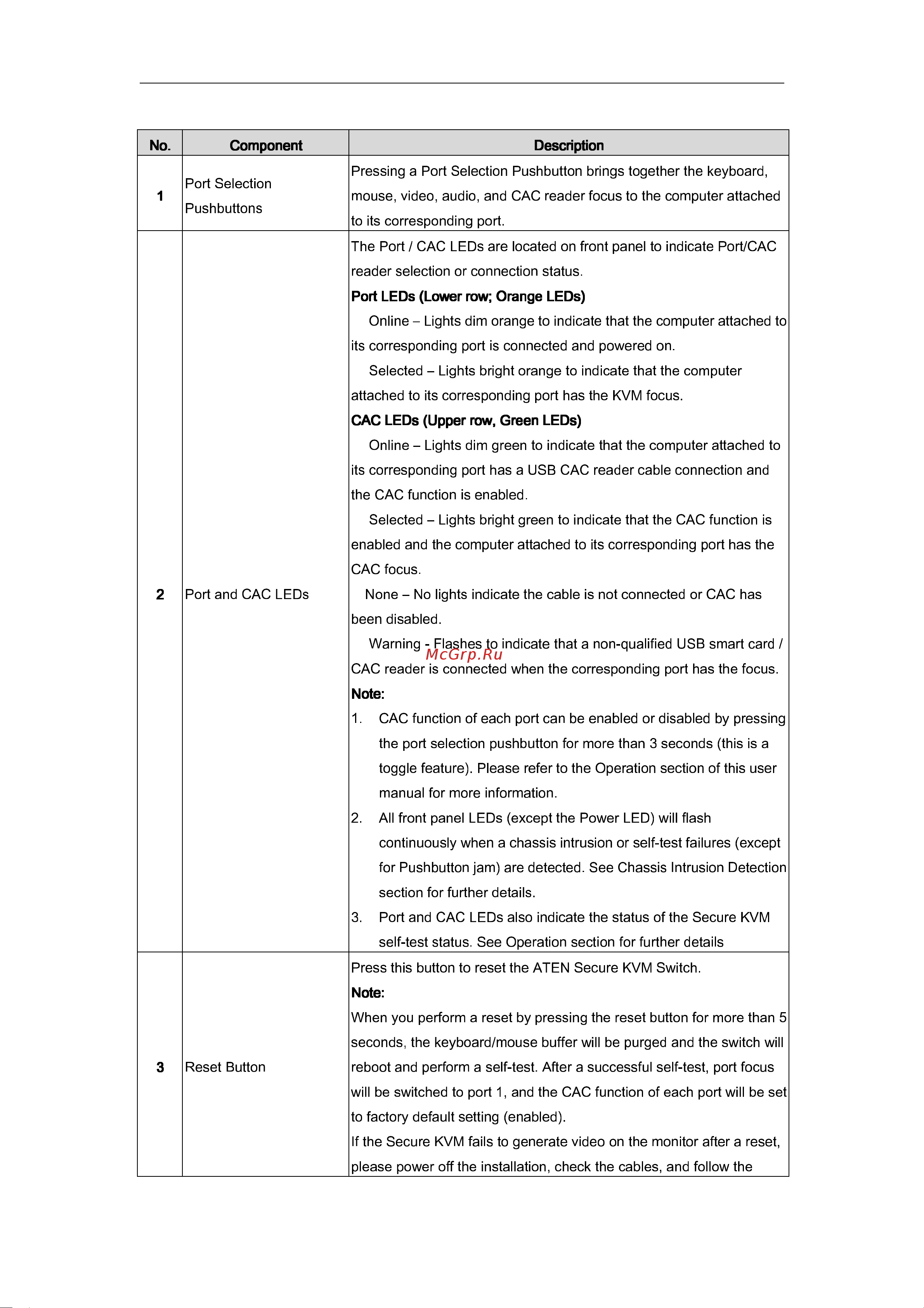

ATEN Secure KVM User Manual
8
No.
No.No.
No.
Component
ComponentComponent
Component
Description
DescriptionDescription
Description
1
11
1
Port Selection
Pushbuttons
Pressing a Port Selection Pushbutton brings together the keyboard,
mouse, video, audio, and CAC reader focus to the computer attached
to its corresponding port.
2
22
2
Port and CAC LEDs
The Port / CAC LEDs are located on front panel to indicate Port/CAC
reader selection or connection status.
Port LEDs
Port LEDsPort LEDs
Port LEDs
(Lower row; Orange LEDs)
(Lower row; Orange LEDs)(Lower row; Orange LEDs)
(Lower row; Orange LEDs)
� Online –
Lights dim orange to indicate that the computer attached to
its corresponding port is connected and powered on.
� Selected – Lights bright orange to indicate that the computer
attached to its corresponding port has the KVM focus.
CAC LEDs
CAC LEDsCAC LEDs
CAC LEDs
(Upper
(Upper(Upper
(Upper
row, Green LEDs)
row, Green LEDs)row, Green LEDs)
row, Green LEDs)
� Online – Lights dim green to indicate that the computer attached to
its corresponding port has a USB CAC reader cable connection and
the CAC function is enabled.
� Selected – Lights bright green to indicate that the CAC function is
enabled and the computer attached to its corresponding port has the
CAC focus.
�None – No lights indicate the cable is not connected or CAC has
been disabled.
� Warning - Flashes to indicate that a non-qualified USB smart card /
CAC reader is connected when the corresponding port has the focus.
Note:
Note:Note:
Note:
1.
CAC function of each port can be enabled or disabled by pressing
the port selection pushbutton for more than 3 seconds (this is a
toggle feature). Please refer to the Operation section of this user
manual for more information.
2.
All front panel LEDs (except the Power LED) will flash
continuously when a chassis intrusion or self-test failures (except
for Pushbutton jam) are detected. See Chassis Intrusion Detection
section for further details.
3.
Port and CAC LEDs also indicate the status of the Secure KVM
self-test status. See Operation section for further details
3
33
3
Reset Button
Press this button to reset the ATEN Secure KVM Switch.
Note:
Note: Note:
Note:
When you perform a reset by pressing the reset button
for more than 5
seconds, the keyboard/mouse buffer will be purged and the switch will
reboot and perform a self-test. After a successful self-test, port focus
will be switched to port 1, and the CAC function of each port will be
set
to factory default setting (enabled).
If the Secure KVM fails to generate video on the monitor after a reset,
please power off the installation, check the cables, and follow the
