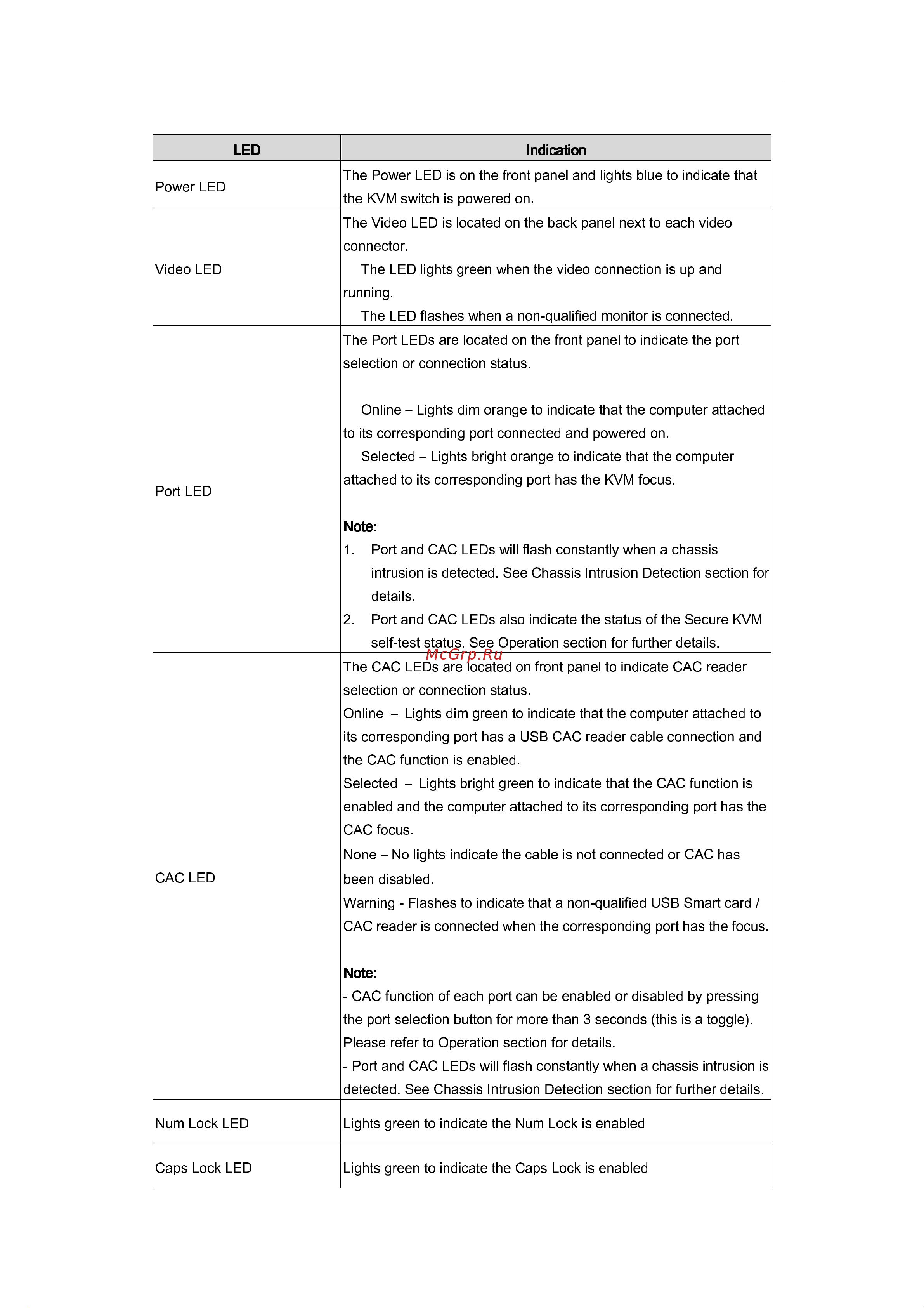

ATEN Secure KVM User Manual
19
LED
LEDLED
LED
Indication
IndicationIndication
Indication
Power LED
The Power LED is on the front panel and lights blue to indicate that
the KVM switch is powered on.
Video LED
The Video LED is located on the back panel next to each video
connector.
� The LED lights green when the video connection is up and
running.
� The LED flashes when a non-qualified monitor is connected.
Port LED
The Port LEDs are located on the front panel to indicate the port
selection or connection status.
� Online – Lights dim orange to indicate that the computer attached
to its corresponding port connected and powered on.
� Selected – Lights bright orange to indicate that the computer
attached to its corresponding port has the KVM focus.
Note:
Note: Note:
Note:
1.
Port and CAC LEDs will flash constantly when a chassis
intrusion is detected. See Chassis Intrusion Detection section
for
details.
2.
Port and CAC LEDs also indicate the status of the Secure KVM
self-test status. See Operation section for further details.
CAC LED
The CAC LEDs are located on front panel to indicate CAC reader
selection or connection status.
Online – Lights dim green to indicate that the computer attached to
its corresponding port has a USB CAC reader cable connection and
the CAC function is enabled.
Selected – Lights bright green to indicate that the CAC function is
enabled and the computer attached to its corresponding port has the
CAC focus.
None – No lights indicate the cable is not connected or CAC has
been disabled.
Warning - Flashes to indicate that a non-qualified USB Smart card /
CAC reader is connected when the corresponding port has the focus.
Note:
Note: Note:
Note:
- CAC function of each port can be enabled or disabled by pressing
the port selection button for more than 3 seconds (this is a toggle).
Please refer to Operation section for details.
-
Port and CAC LEDs will flash constantly when a chassis intrusion is
detected. See Chassis Intrusion Detection section for further details.
Num Lock LED Lights green to indicate the Num Lock is enabled
Caps Lock LED Lights green to indicate the Caps Lock is enabled
