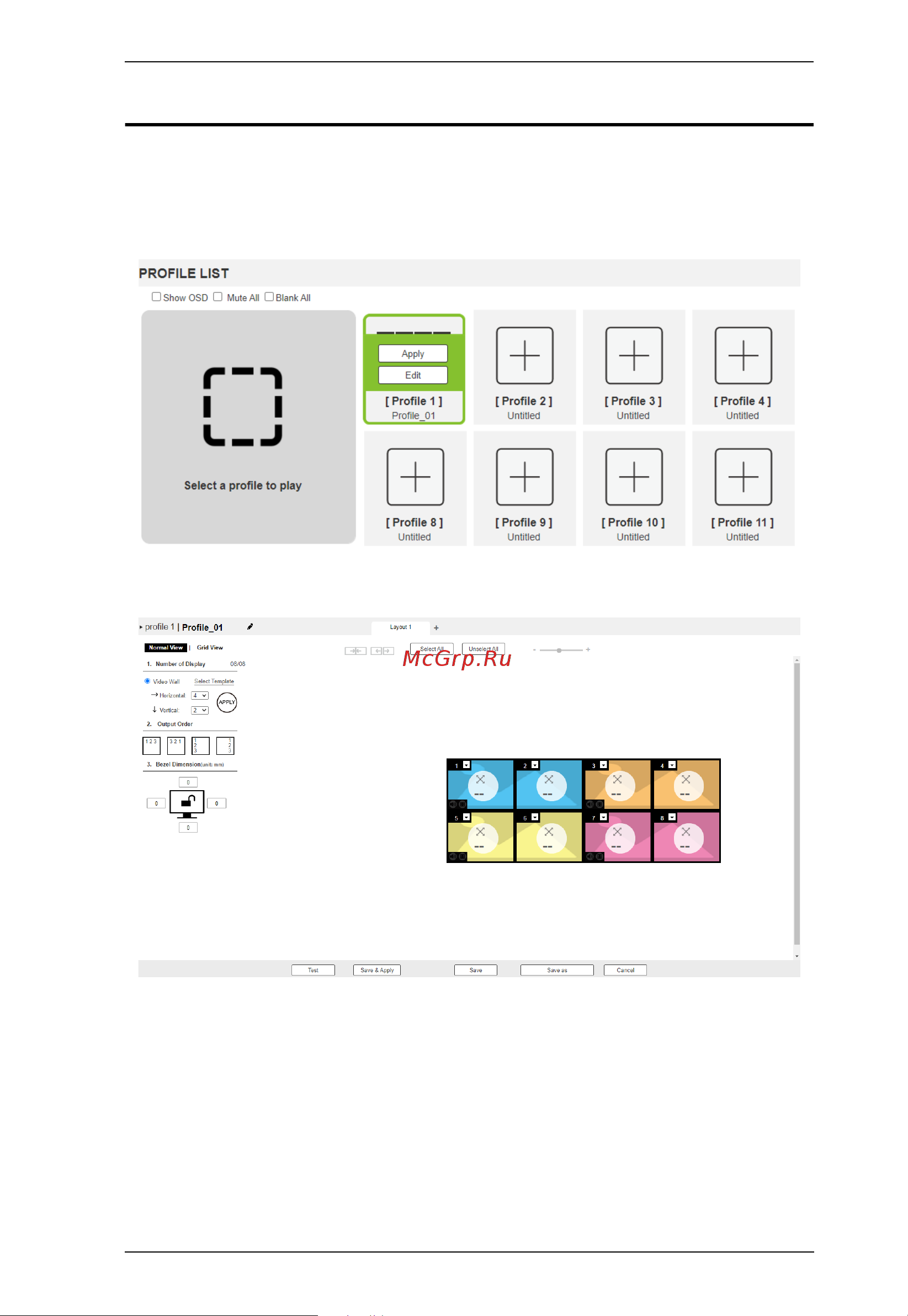

Aten VM5404HA [51/124] Configuring video settings of a profile

Chapter 4. Browser Operation

Configuring Video Settings of a Profile

To configure video settings of a profile, follow the steps below.

1. In the Profile List, locate the profile you wish to configure. Click the

profile and then click Edit.

2. This screen appears.
