Sony MVC-CD400 [124/132] The lcd screen
![Sony MVC-CD250 [124/132] The lcd screen](/views2/1097801/page124/bg7c.png)
124

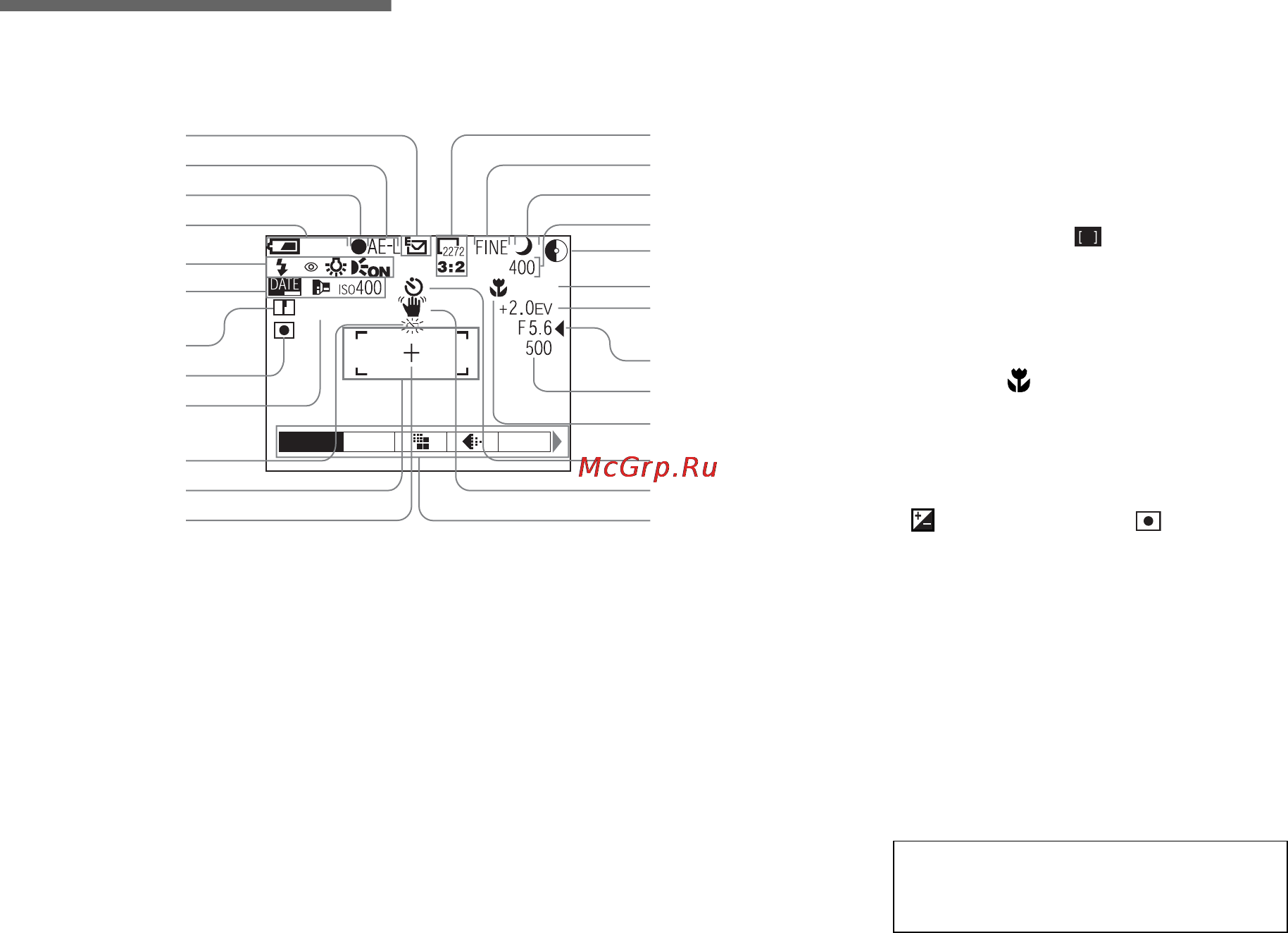

The LCD screen
When shooting still images
A Recording mode indicator (109)
B AE LOCK indicator (74)
(MVC-CD400 only)
C AE/AF indicator (25)
D Battery remaining indicator (14)
E Flash mode indicator (29)
Red-eye reduction indicator (30)/
Hot shoe indicator (84)
(MVC-CD400 only)
White balance indicator (76)
Hologram AF
1)
/AF illuminator
2)
indicator (31)
1)
MVC-CD400
2)
MVC-CD250
F Date/time indicator (32)
Conversion lens indicator (117)
(MVC-CD400 only)
ISO number indicator (111)
G Sharpness indicator (112, 113,
114)
H Metering modes indicator (72)
(MVC-CD400 only)
I Picture effect indicator (83)
J Low battery warning indicator
(14)
K AF range finder (68)
L Spot metering cross hair (72)
WHITE BAL
MODEISO
SOLARIZE
3.0m
60min
1
2
3
4
5
6
7
8
9
q;
qa
qs
qd
qf
qg
qh
qj
ql
qk
w;
wa
ws
wd
wf
wg
M Image size indicator (22)
N Image quality indicator (23)
O Mode dial indicator
P Remaining number of recordable
images indicator (24, 110)
Self-diagnosis function indicator
(108)
Q Remaining disc space indicator
R Focus range indicator (66)
Focus preset value (69)
S EV level indicator (70)
T Aperture value indicator (64)
U Shutter speed indicator (64)
V Macro indicator (28)
W Self-timer indicator (29)
X Light amount warning indicator
Y Menu/Guide menu (62)
• Pressing MENU switches the menu on/off.
• (EV), 9 (FOCUS) and (SPOT
METER) appear on the MVC-CD250 menu.
Page numbers in parentheses indicate the
location of additional important
information.
