Chapter 4. Browser Operation
33

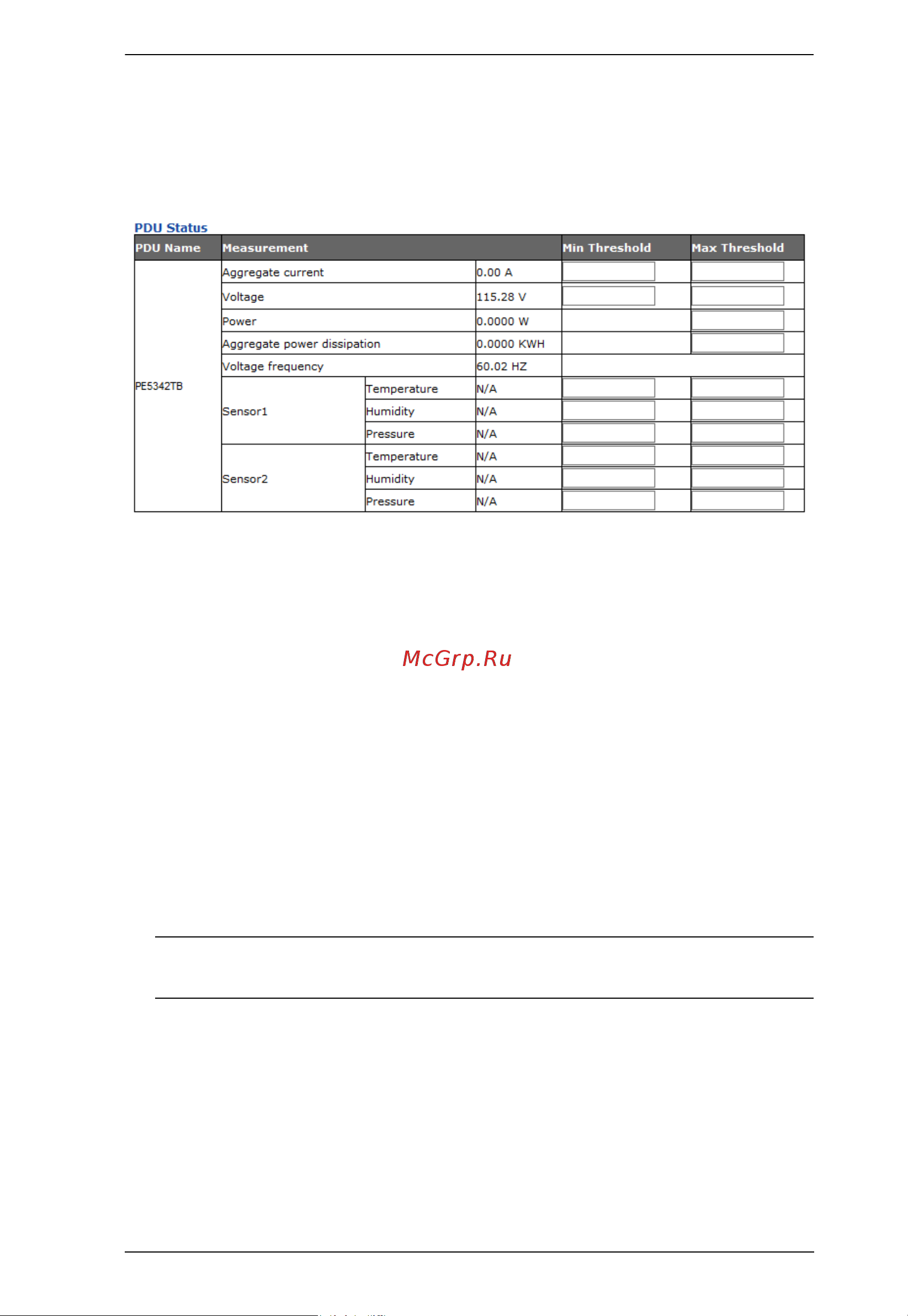

PDU Status
All eco PDU models support PDU device level monitoring. The PDU Status
section allows you to set up a power management configuration for the PDU
device as a whole:
PDU Threshold Settings
These fields are used to set the maximum, minimum, and fluctuation
threshold settings for Aggregate Current, Voltage, Power, and Aggregate
Power Dissipation. If a range falls below the minimum setting, or exceeds
the maximum setting an alarm is triggered.
Voltage Frequency is displayed here in Hz.
Power Factor displays a ratio between real and virtual power, providing a
power performance value based on external power sources (i.e. not related
to the eco PDU device).
Sensor 1 / Sensor 2
If you have sensors installed in your installation, use these fields to set the
maximum, minimum, and fluctuation threshold settings for Temperature,
Humidity, and Pressure.
Note: Sensors are optional accessories. Check with your dealer for
information about NRGence eco Sensors software.
