Chapter 2. Hardware Setup
11
Note: 1. The HDMI sources must be unencrypted.
2. Use the connected iPad to configure further network settings for live-
streaming.
3. iPad placed on the unit is recommended for viewing only. Hand
holding your iPad is still recommended for control.

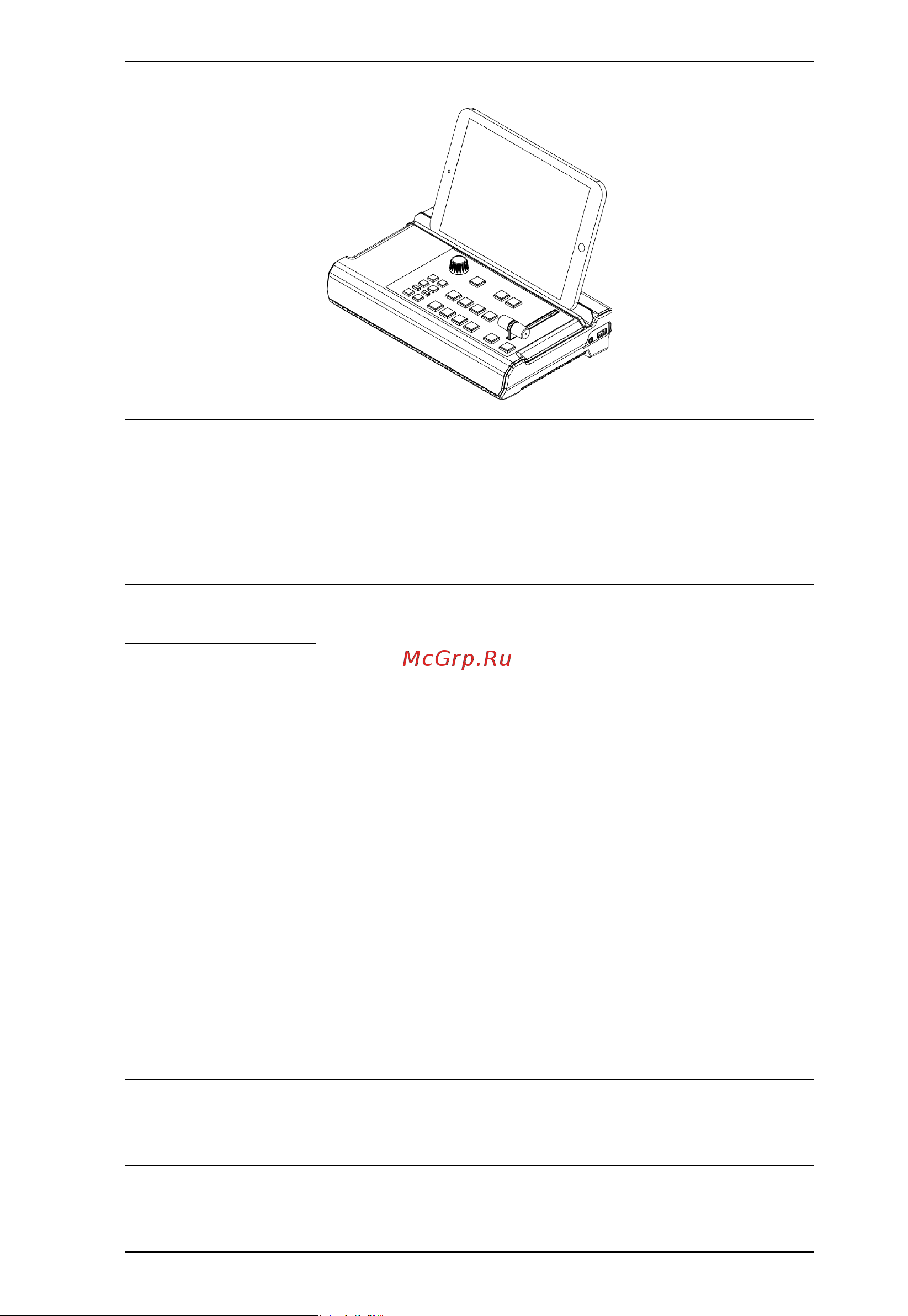

Connecting iPad
Lightning Connector on iPad
For iPads having lightning connectors, simply connect the Apple Lightning
USB 3 Adapter (not included, may need additional purchase) and the USB
Type-A to USB Type-A cable serially between the StreamLIVE™ HD and
your iPad.
If you wish to have the charging function, connect your lightning charging
cable to the Apple Lightning to USB 3 Adapter.
USB-C Connector on iPad
For iPads having USB-C connectors (e.g. iPad Pro Gen 3), simply connect the
USB Type-A to USB-C cable included in the package between your iPad and
the StreamLIVE™ HD.
Note: The USB Type-A to USB-C cable included in the package is custom-
made for this setup, a general USB Type-A to USB-C cable will not
work.
