StreamLIVE™ HD User Manual
4

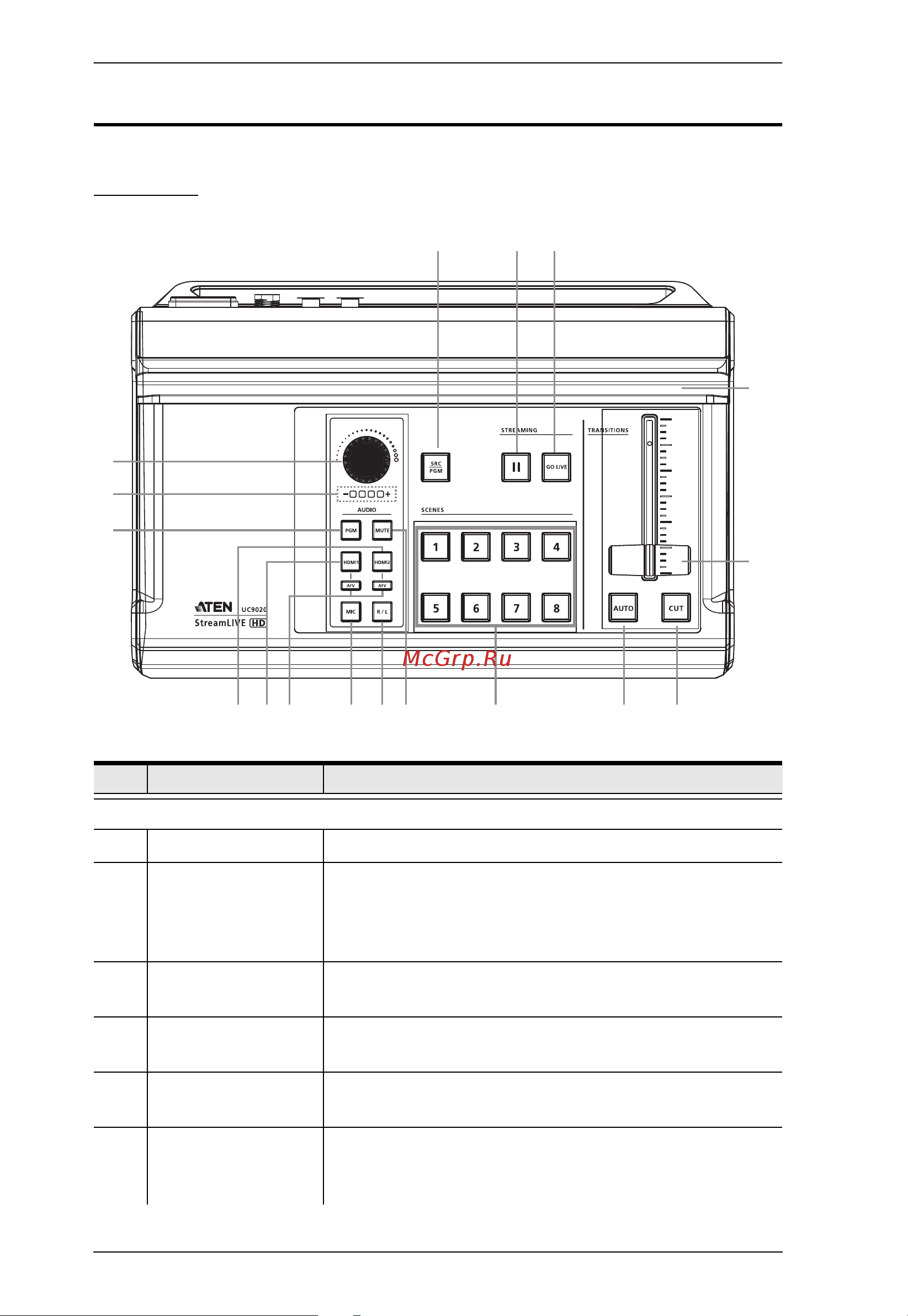

Components
Top View
No. Component Description
Audio Section (Controls the audio settings of the system)
1 audio level control Controls the volume of the selected audio source.
2 volume meter LEDs The LED reflects the controlled volume.
During firmware upgrade, the LED behavior is changed.
Refer to Upgrading the Unit on page 66 for the LED
behavior during firmware upgrade.
3 PGM Switches to the PGM audio source.
The button will light up when switched to this source.
4 HDMI 2 audio
source
Switches to the HDMI 2 audio source.
The button will light up when switched to this source.
5 HDMI 1 audio
source
Switches to the HDMI 1 audio source.
The button will light up when switched to this source.
6 AFV Audio-Follows-Video: Pressing the AFV button will light
up. If the video source is selected, the source’s audio will
also be played.
15
16
8
9
13
10 11
7
4
1
3
2
5
17
14
6
12
