Aten UCE32100 [11/25] Components

Chapter 1. Introduction

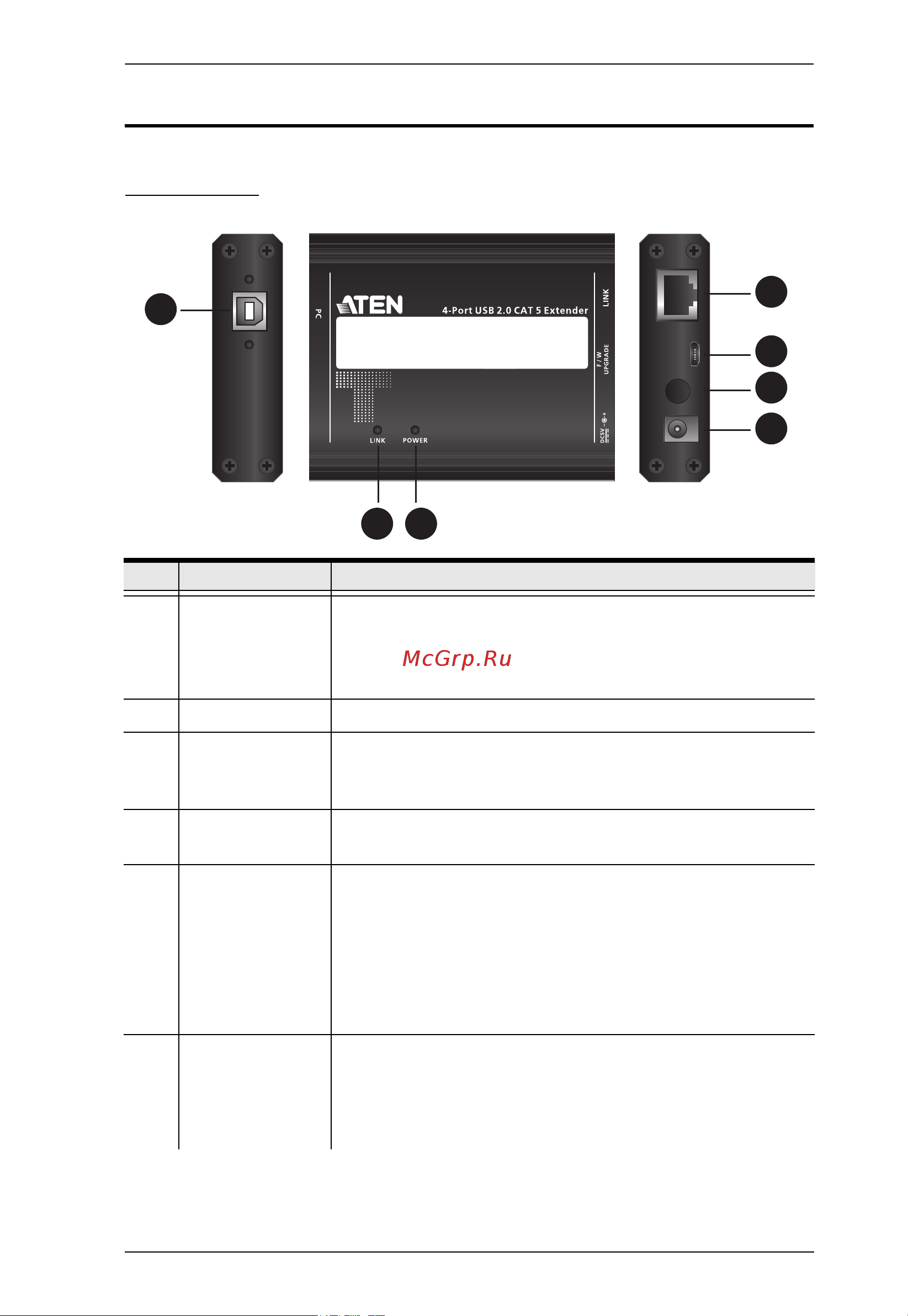

Components

UCE32100T

No. Component Description

1 Power Jack Receives the power adapter.

Note: The power adapter is not required but can be

connected to the unit to provide power if the USB port on the

host PC is not capable of delivering 500mA to the unit.

2 DC Jack Lock Locks the Power Jack to avoid power cut or power shortage.

3 Firmware

Upgrade Port

(Micro USB)

This port is for firmware upgrade.

4 Link Port (RJ-45) Receives a Cat 5/5e/6/7 cable that sends and transmits data

between the UCE32100T and the UCE32100R.

Link LED

(Amber)



On: To indicate that the USB connection between the

UCE32100T and the UCE32100R is stable.



Blink: To indicate that the data is being transmitted

between the UCE32100T and the UCE32100R.



Off: To indicate there is no connection between the

UCE32100T and the UCE32100R.

6Power LED

(Green)



On: To indicate that the power is being supplied to the

unit.



Off: To indicate that there is no power being supplied to

the unit.
