UCE32100 User Manual

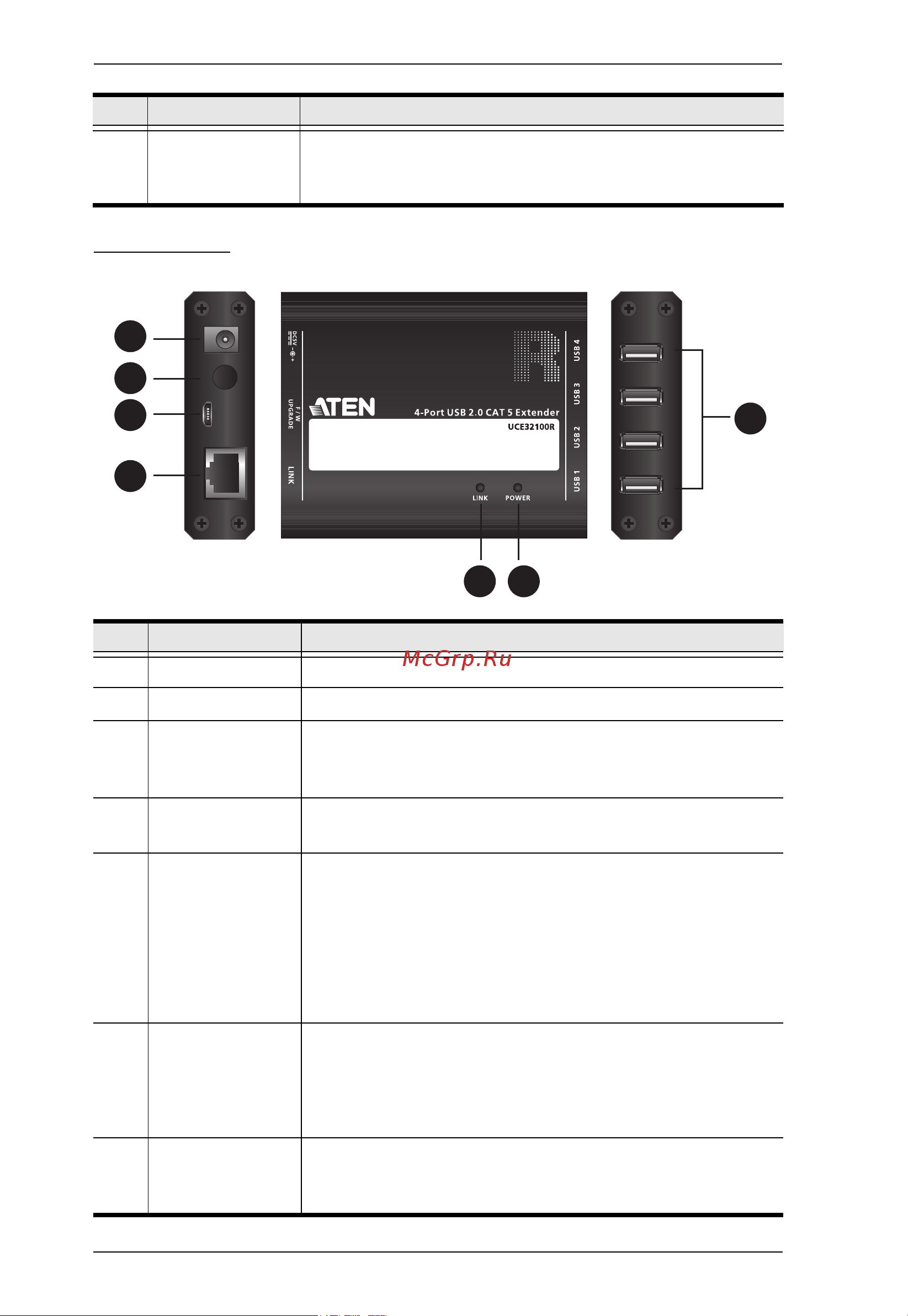

UCE32100R

7 USB 2.0 Type-B

Female Port

(Host)

Receives a USB Type-B male to Type-A male cable that

connects the UCE32100T to the computer in your setup.

No. Component Description

1 Power Jack Receives the power adapter.

2 DC Jack Lock Locks the Power Jack to avoid power cut or power shortage.

3 Firmware

Upgrade Port

(Micro USB)

This port is for firmware upgrade.

4 Link Port (RJ-45) Receives a Cat 5/5e/6/7 cable that sends and transmits data

between the UCE32100R and the UCE32100T.

5Link LED

(Amber)



On: To indicate that the USB connection between the

UCE32100T and the UCE32100R is stable.



Blink: To indicate that the data is being transmitted

between the UCE32100T and the UCE32100R.



Off: To indicate there is no connection between the

UCE32100T and the UCE32100R.

6 Power LED

(Green)



On: To indicate that the power is being supplied to the

unit.



Off: To indicate that there is no power being supplied to

the unit.

7 USB 2.0 Type-A

Female Ports

(USB peripherals)

Receive USB cables to connect to USB peripherals you

wish to access from the computer in your setup.

No. Component Description
