C. How to test Serial Tunneling Server and Client modes?

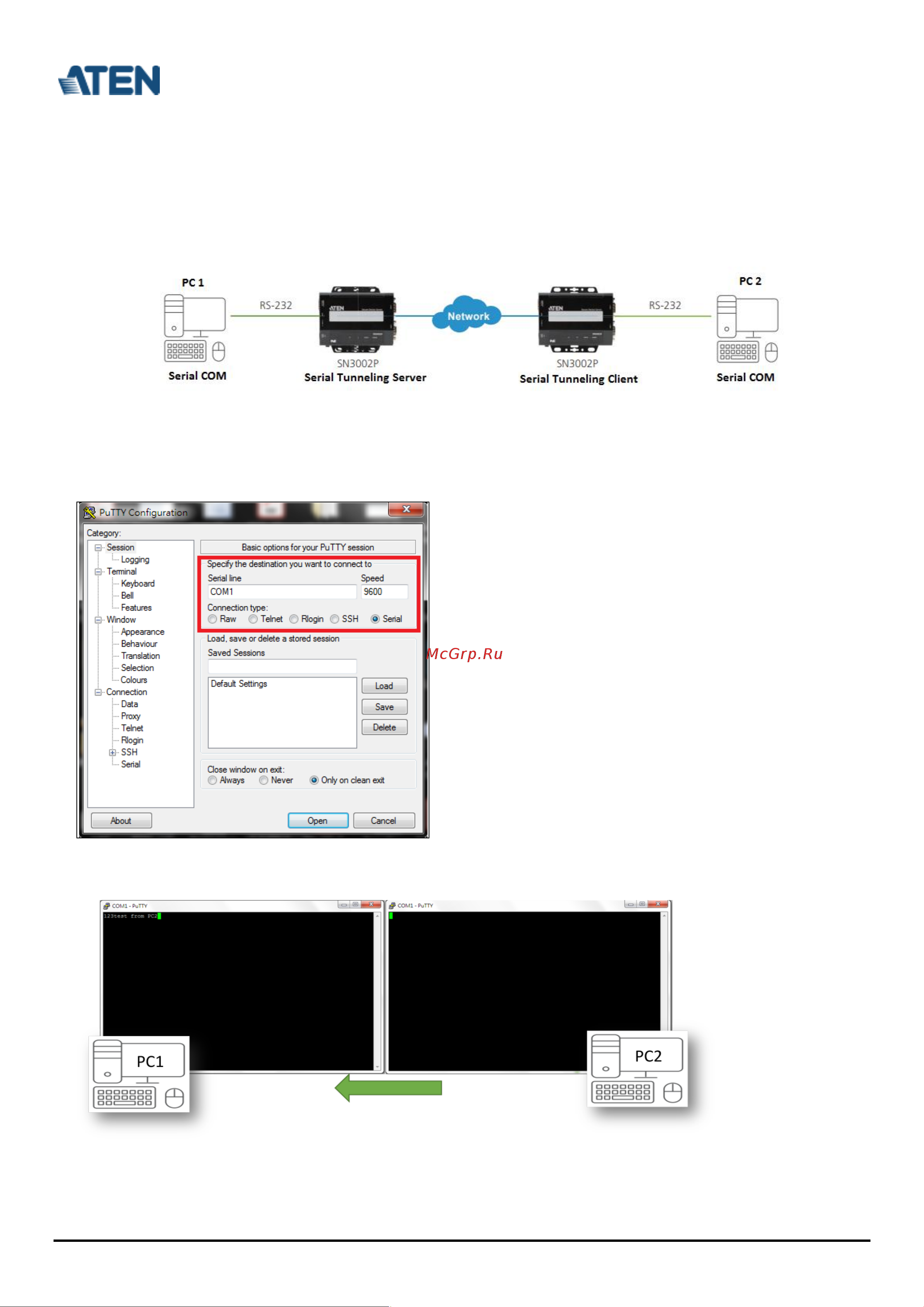

Connect PC1’s COM port to the first SN3002P, configured as Serial Tunneling Server, and connect PC2’s COM

port to the second SN3002P, configured as Serial Tunneling Client. Presume the settings of two SN3002P

have been properly configured, as mentioned in the previous section.

1. On PC1 and PC2, use Putty, a third-party utility, to configure their serial communication settings, as

illustrated below.

2. Using the Putty on PC2 (serial device), you can enter any text to test if it can be received by PC1 (host),

as exemplified below.

Note: Conversely, you can also enter any text on the Putty of PC1 to test if it can be received by PC2.
