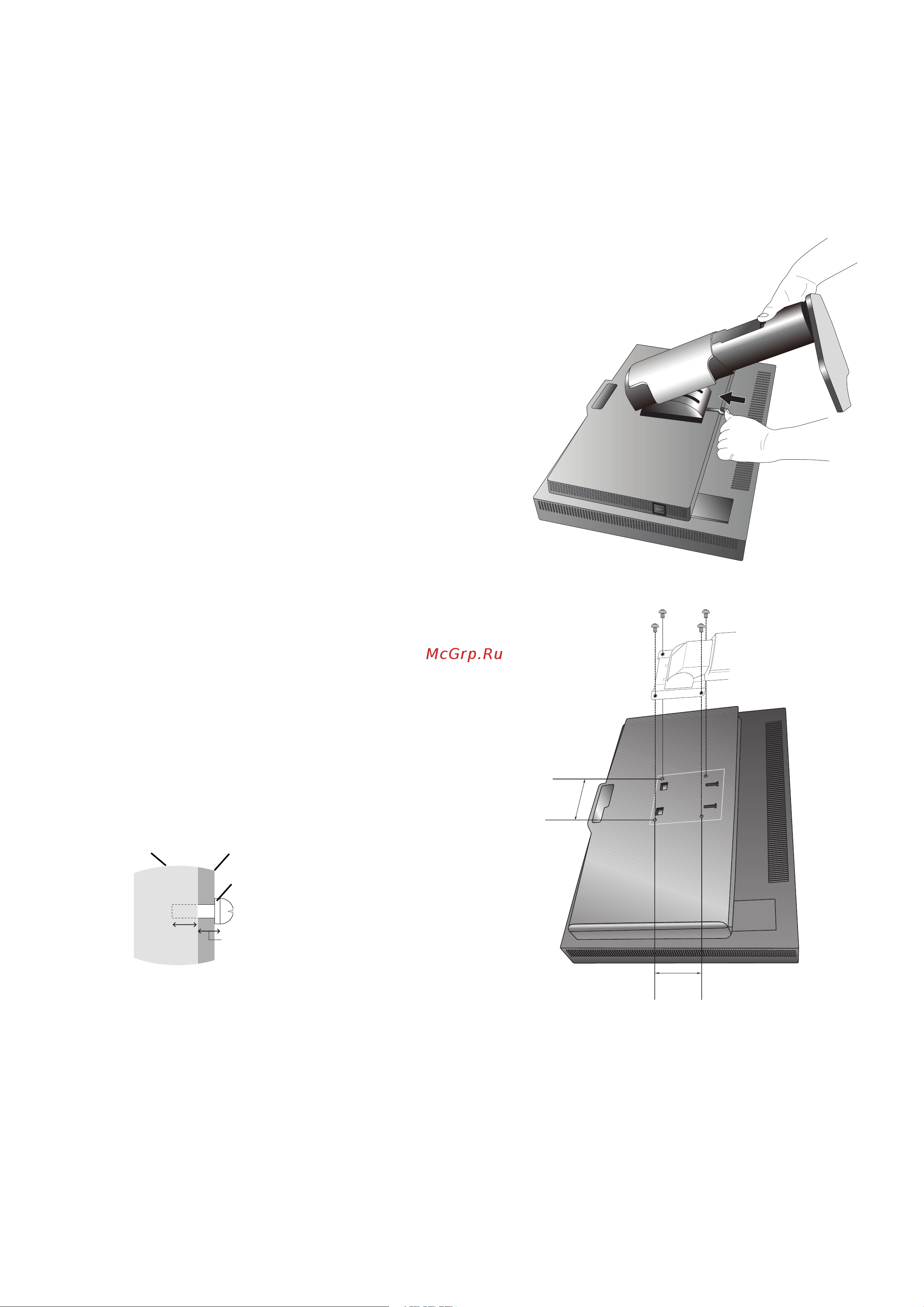

Figure S.1

Mount the Flexible arm

This LCD monitor is designed for use with a fl exible arm.

1. Follow the instructions on how Remove Monitor Stand for

Mounting to remove the stand.

2. Using the attached 4 screws, attach the arm to the monitor

(Figure F.1).

Caution: Use ONLY the screws (4 pcs) that are included, M4 size

an approved arm (e.g. TUEV GS mark).

Mounting

Bracket

Screw

Washer

Unit

5-7 mm

• To meet the safety requirements, the monitor must be mounted to an arm that supports the weight of the monitor.

See page 25 for details. Remove the monitor stand before mounting.

* Contact your dealer for more information.

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

2. Place hands on each side of the monitor and lift up to the highest position.

3. Place monitor face down on a non-abrasive surface (Figure S.1).

4. Place one hand around the base and one hand on the Quick Release Lever.

Push and hold the Quick Release Lever in the direction indicated by the arrows
