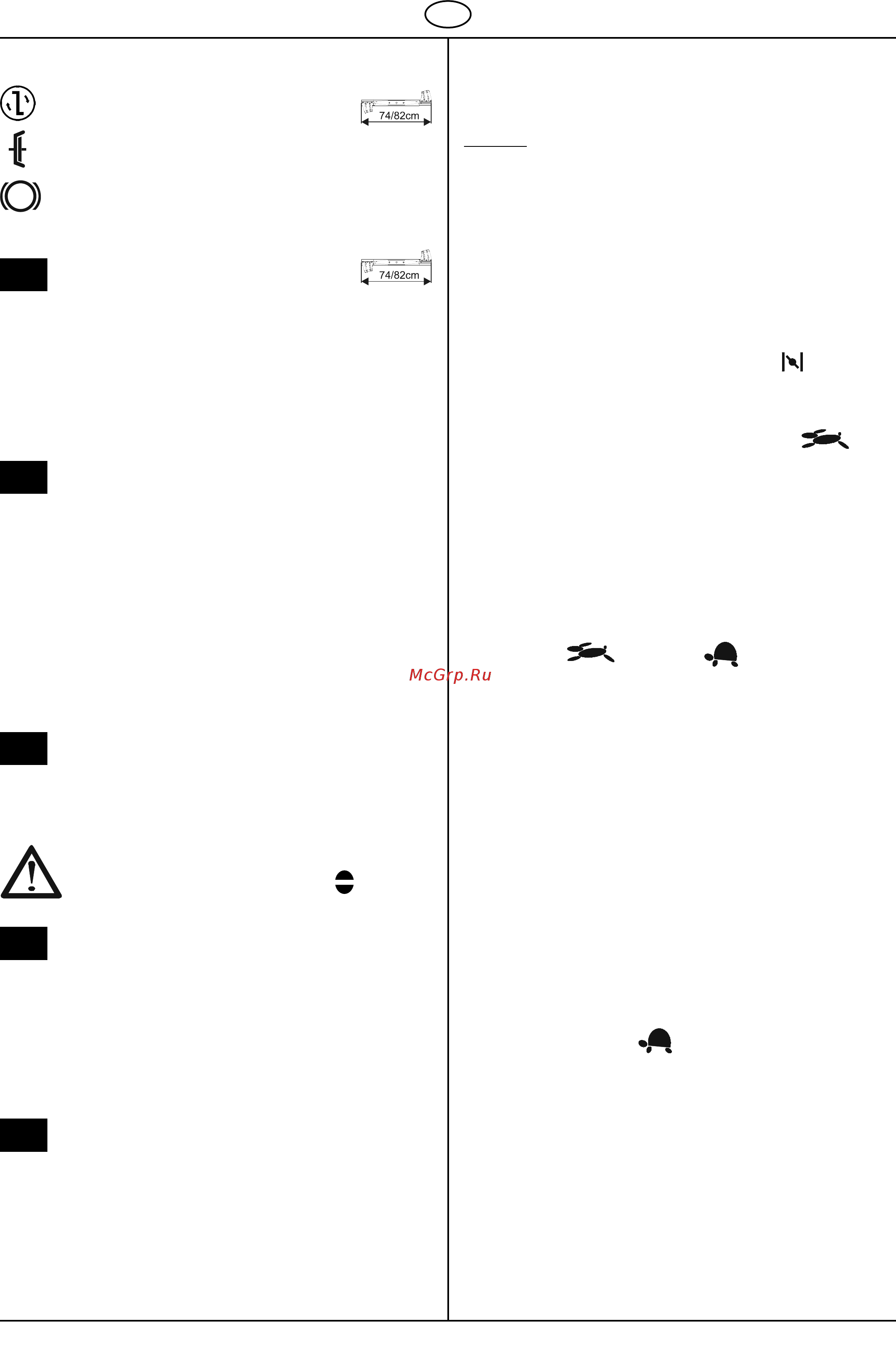

Al-Ko T 953-A Comfort [29/78] Foot pedal left cutter bar
![Al-Ko T 953-A Comfort [29/78] Foot pedal left cutter bar](/views2/1098176/page29/bg1d.png)
GB 15
GB
Meaning of the symbols on the foot pedals
Left hand foot pedal: switch on cutter bar
Right hand foot pedal: Clutch
Brake
Foot pedal - left "cutter bar"
Pushing the left hand foot pedal down, switches on the
cutter bar.
It is now possible to remove the foot from the pedal, as the
pedal will remain pushed down.
Renewed pressing down of the foot pedal returns to the
starting position again.
Foot pedal - right "clutch / brake"
If the pedal is half pushed down, the clutch is
disengaged. If the pedal is completely pushed down, the
clutch is disengaged and the disk brake of the
transmission operated.
With the pedal completely pressed down, the pedal can
be locked in the "Brake" function by pushing the stop
lever to the left (with the heel of the shoe).
Pushing the pedal down again cancels the locking - the stop
lever returns to the original position.
Switching lever (for hydrostat drive)
Possible transmission positions:
Forward gear - infinitely adjustable
Reverse gear - infinitely adjustable
and a neutral position.
For safety reasons, the switching lever must always be in
the neutral position when engaging traction.
Switching lever (for 5-gear
transmission)
With the switching lever,
5 forward gears
1 reverse gear
and1 neutral position can be switched.
Position lever for adjustment of
cutting height
The mowing appliance is lifted or lowered with the position
lever.
Six positions are available. In order to get from a higher to a
lower position, the push button on the end of the lever must
be pushed to unlock it.
In order to reach a higher position, simply push the lever
upwards into the required position
START OF OPERATION
Starting the engine
Attention!
Check the oil level before each start of operation.
Engine exhaust fumes contain carbon monoxide, a non-odorous
and lethal gas!
For this reason, never start the engine in enclosed or badly
ventilated rooms.
• Sit down on the driver's seat.
• Push the right-hand pedal (clutch/brake) right down
- possibly engage with the stop lever.
The mowing appliance must not be switched on.
• For a cold start, put the gas lever onto CHOKE .
Type: 18 PS and 20 PS
Pull the CHOKE button out
• If the engine is warm, put the gas lever onto FAST .
• Put the ignition key into the ignition lock.
• Turn the ignition key to the right to position "II" (Start).
• When the engine is running, let go of the ignition key.
(The ignition key automatically returns to position "I").
• An attempt at starting should only last for about 5 seconds so that
the starter battery is not strained unnecessarily.
• As soon as the engine is running, put the gas lever into a position
between and .
Type: 18 PS and 20 PS
Push the CHOKE button back until it engages audibly. If the choke
button remains in the pulled position with the engine running, the
engine does not perform as well as it can (engine smokes, spark
plugs soot up, increased fuel consumption).
Hydrostatic drive
Winter operation – in temperatures below 0°C
• Release transmission / brake pedal.
• Start motor and set the switch lever for the hydrostatic drive into
the neutral position for approx. 30 seconds – optimisation of
transmission oil viscosity.
• Only then begin driving operations.
• The engine should warm up for a few minutes before the mowing
appliance is switched on.
Stopping the engine
• Switch off the mowing appliance.
• Put the gas lever onto .
• Briefly press the brake pedal down - if necessary, engage the
brake pedal.
• Turn the ignition key to the left to position "0".
• If the lawn tractor is left unused or unattended, remove the ignition
key and engage the brake pedal.
