Viewsonic VA2403-mh [12/60] C adjusting the angle
![Viewsonic VA2403-mh [12/60] C adjusting the angle](/views2/1982117/page12/bgc.png)
8

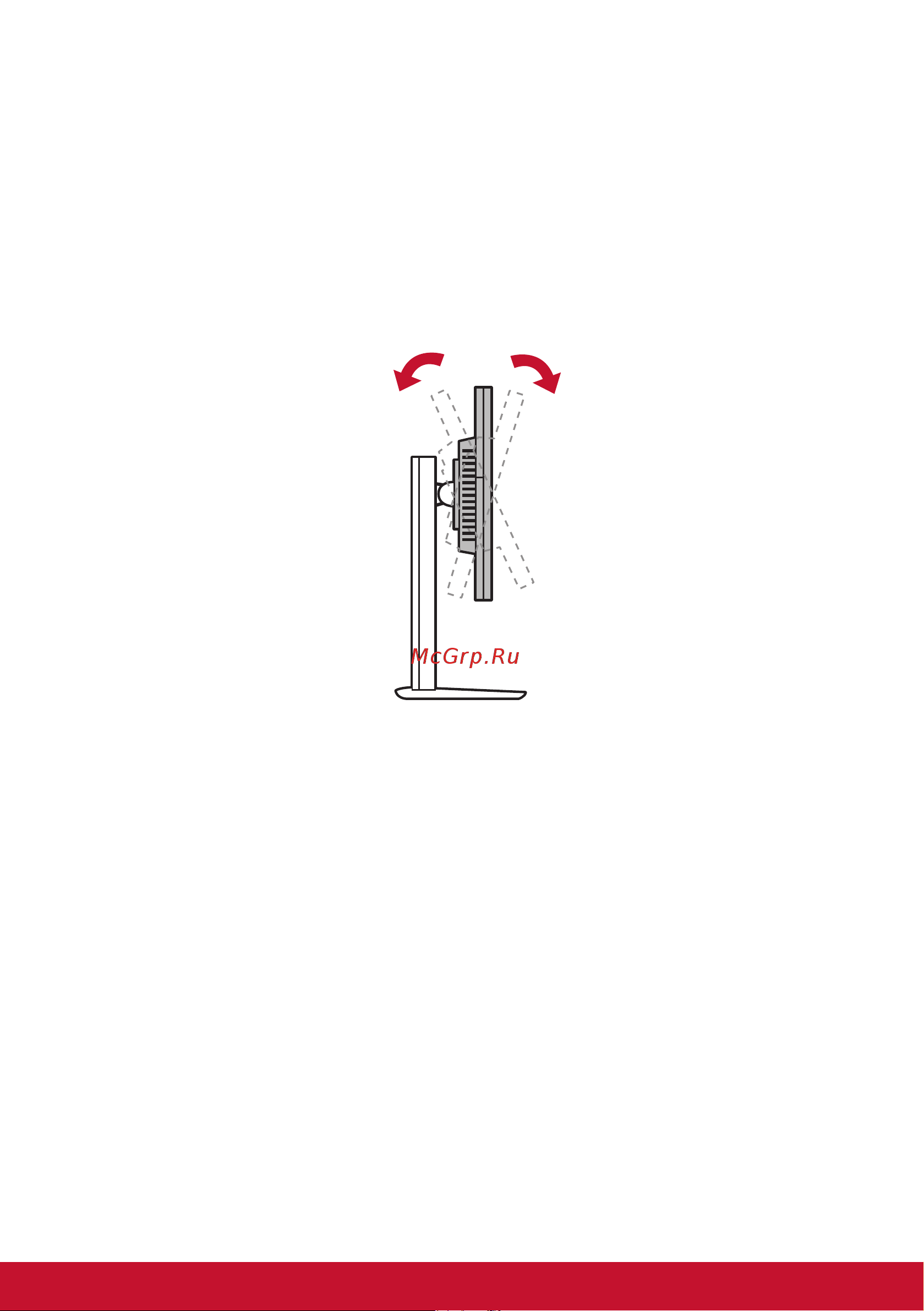

C. Adjusting the Angle
- After adjusting the monitor’s height, stand in front of the
monitor so it is centered in front of you.
- The angle of the screen can be adjusted by moving the panel,
angling it forward or back for a flexible, comfortable viewing
experience.
Rear Side Front Side
*This picture is for reference only
